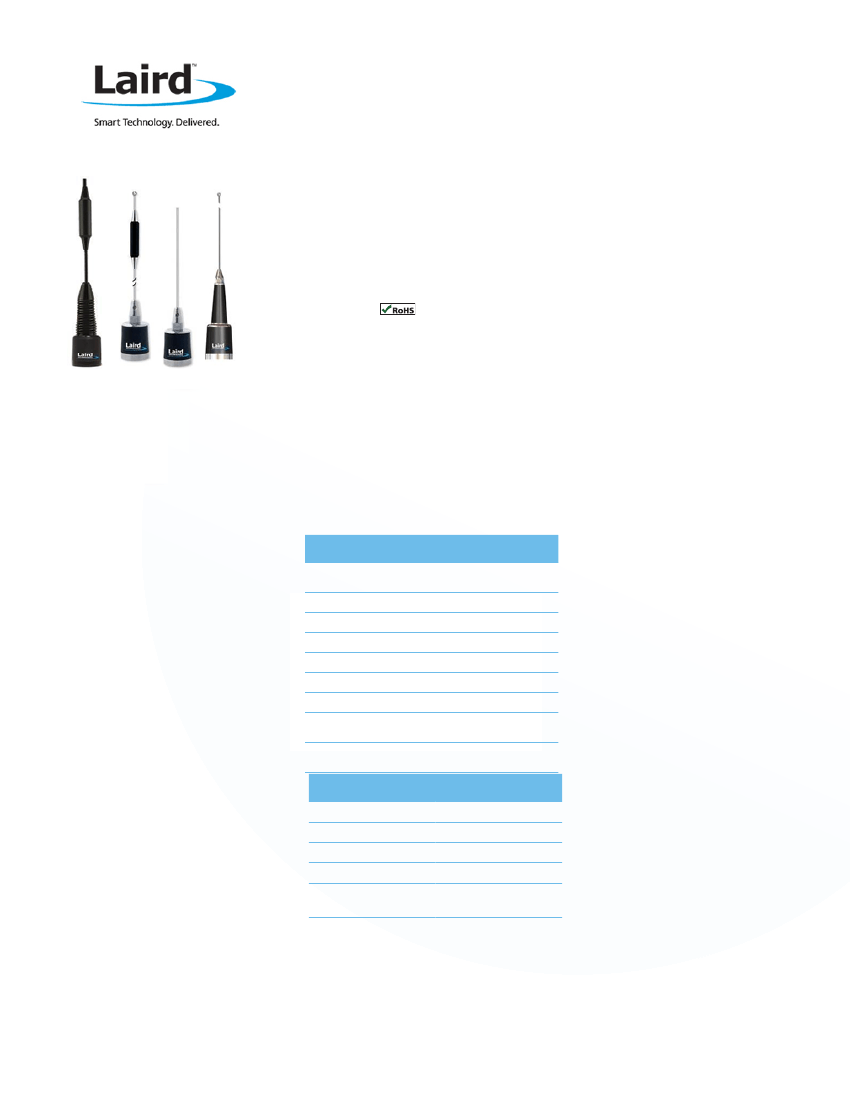

Mobile Load Coil Antenna
806-970 MHz
PREMIUM MOBILE LOAD COIL ANTENNAS ARE INDUSTRY STANDARD
Laird's ongoing commitment to refinement in mechanical and electrical design has
resulted in the most technically advanced mobile load coil antennas on the market.
Exclusive features such as stainless steel whips, housings constructed with ABS material
injected molded around a solid brass insert, and gold plated push pin contacts make
Laird the obvious choice for quality and long lasting value for demanding mobile radio
communications.
FEATURES
• Easily removable rod allows the mount
to stay water tight during car washes
• O-ring built into the base creates a
weather-tight seal
• ABS material is injection molded
directly around the solid brass inserts
for a virtually indestructible housing
that will not leak or dissassemble
• All silver soldered joints provide
an electrically and mechanically
secure connection
MARKETS
• Public safety
• Transportation
• Utility
• Military mobile
SPECIFICATIONS
ELECTRICAL
Frequency Range
VSWR
Nominal Gain
Maxmium Power
Nominal Impedance
Polarization
Pattern
Half-Power Beamwidth
(Elevation° x Azimuth°)
Coaxial Cable Length & Type
(For Vertical Polarization)
No Spring
806-970
MHz
With Spring
806-970
MHz
< 2.1 Max
5
dBi
200 W
50
Ω
Vertical
Omnidirectional
60° x 360°
None
MECHANICAL
Overall Height
808-866 MHz : 18" 896-970 MHz : 16"
Diameter
Weight
Material
Mounting Information
(Others Sold Separately)
1.44”
<
1.0 lb
ABS
NMO Mountable
Americas: +1.847 839.6907
IAS-AmericasEastSales@lairdtech.com
Europe: +44.1628.858941
IAS-EUSales@lairdtech.com
Asia: +86.21.5855.0827.127
IAS-AsiaSales@lairdtech.com
ANT-DS-B806970 111014
