Bulk Indium Arsenide BH-200 Series

Hall

Sensors

Instrumentation Quality

Description

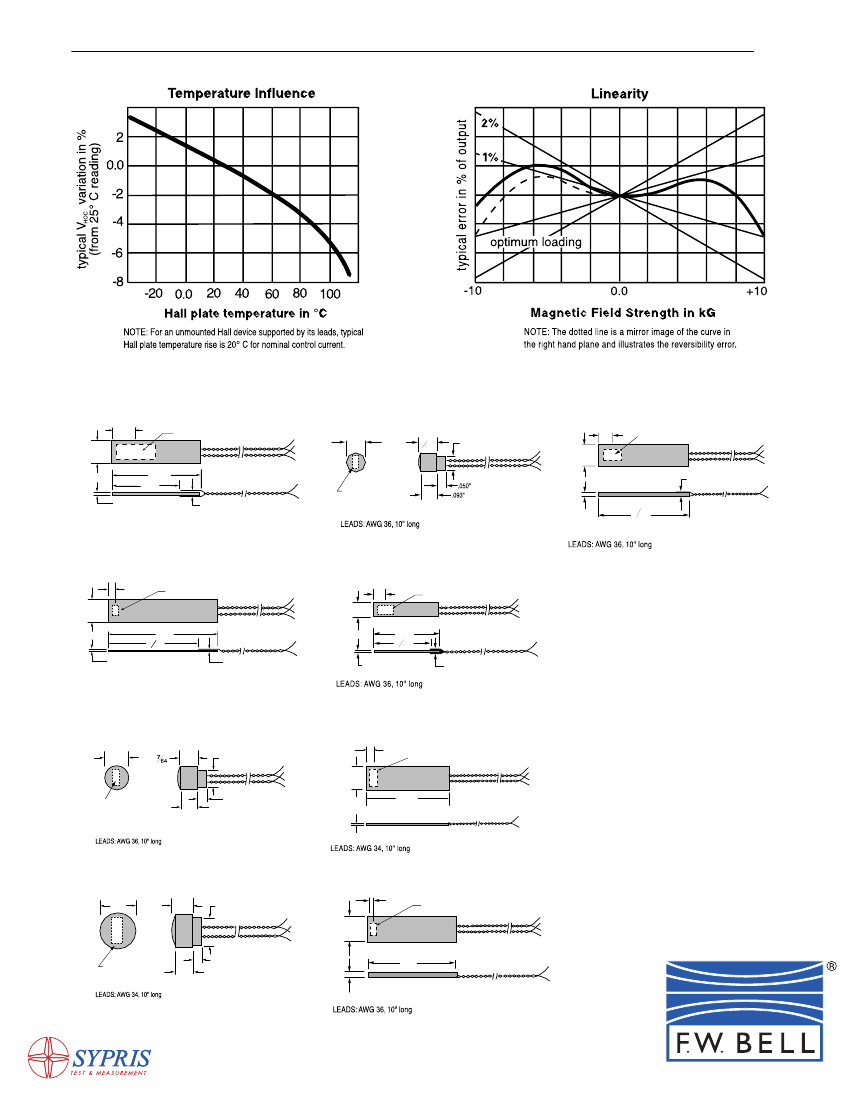

The BH-200 series of Hall effect magnetic field sensors consists of ten models designed

to meet the requirements of most magnetic field measurement applications. Models in the BH-200

Series are built in various configurations to measure axial, transverse, and tangential magnetic field

components. Sensitivities range from 6 to 75 mV/kG with input and output resistance of several ohms.

Mechanical Specifications

a. Polarity: With the magnetic field vector (+B) entering the top of the Hall plate and l

entering the red lead,

the positive Hall voltage will appear at the blue lead.

b. Material: AWG 34 or AWG 36 copper with heavy polyurethane insulation.

c. Color Code: Control Current (l

): AWG 34-red (+l

), black (- I

), AWG 36-neutral (+l

), green (- l

)

d. Hall Voltage: (V

): AWG 34-blue (+V

), yellow (- V

), AWG 36-red (+V

), neutral (- V

)

Models

BH-200

BH-201

BH-202

BH-203

BH-204

BH-205

BH-206

BH-207

BH-209

General Purpose Transverse

Ultra-thin, Transverse

Small Axial

General Purpose, Axial

Mini Axial

Mini Transverse

High Sensitivity, Low-cost Transverse

High Resolution, Tangential

Ultra-mini, Transverse

UNITS

ohms

mV/kG

±µV

±% of RDG

%/°C

±µV/°C

°C

BH-200

2.5 max.

2 max.

15±25%

.003

Electrical Specifications

*Approximate

NOTE: In a time varying field the voltage induced into the Hall output

leads, V

ind

, is proportional to the effective area, A, of the Hall output loop

and the amplitude and the rate of change of the field, V

ind

(measured with

=0)=A

x10

- 8

ind

=volts, A=cm

, B=gauss, t=sec.

SPECIFICATIONS

Input resistance, R

Output resistance, R

out

Open circuit

magnetic sensitivity, V

HOC

(1)

Inductive null constant, A

Max. resistive residual

voltage, V

@ B=0 (2)

Max. control current

@ 25°C, static air

Nominal control current, I

Max. linearity error,

(0 to 10 kG) with R

lin

Reversibility error of V

(0 to 10 kG)

Mean temperature coefficient of

(-20°C to +80°C) (2)*

Mean temperature coefficient of

resistance (-20°C to +80°C) (2)*

Temperature dependence of resistive

residual voltage (-20°C to +80°C) (2)*

Operating temperature range

Storage temperature range

BH-201

3 max.

12±25%

.01

BH-202

3 max.

10±25%

.002

100 max.

150

100

- 0.08

.15

- 40°C to

+100°C

- 40°C to

+105°C

BH-203

3 max.

10±25%

.003

100 max.

250

100

- 0.08

.15

- 40°C to

+100°C

- 40°C to

+105°C

BH-204

3 max.

11±25%

.002

200 max.

150

100

1.5

- 0.08

.15

- 40°C to

+100°C

- 40°C to

+105°C

BH-205

3 max.

10±25%

.002

100 max.

200

125

- 0.08

.15

- 40°C to

+100°C

- 40°C to

+105°C

BH-206

7 max.

5 max.

60±25%

.006

BH-207

2.7 max.

15±25%

.002

BH-209

2.5 max.

3 max.

6.75±25%

.003

100 max.

150

1.5

- 0.08

.15

- 40°C to

+100°C

- 40°C to

+105°C

100 max. 250 max.

250

150

- 0.08

.15

- 40°C to

+100°C

- 40°C to

+105°C

150

100

1.5

2.5

- 0.08

.15

0°C to

+100°C

0°C to

+105°C

500 max. 200 max.

250

200

1.5

- 0.25

- 40°C to

+100°C

- 40°C to

+105°C

250

150

1.5

- 0.08

.15

- 40°C to

+100°C

- 40°C to

+105°C

Notes:

(1)

(2)

(3)

Nominal Control Current, I

=100 mA

Due to continuous process improvement, all specifications are subject to change without notice.

6120 Hanging Moss Road • Orlando, Florida 32807 •

www.fwbell.com

Phone (407) 678-6900 • Fax (407) 677-5765 • Toll Free (800) 778-6117

Rev. date

11/2005
