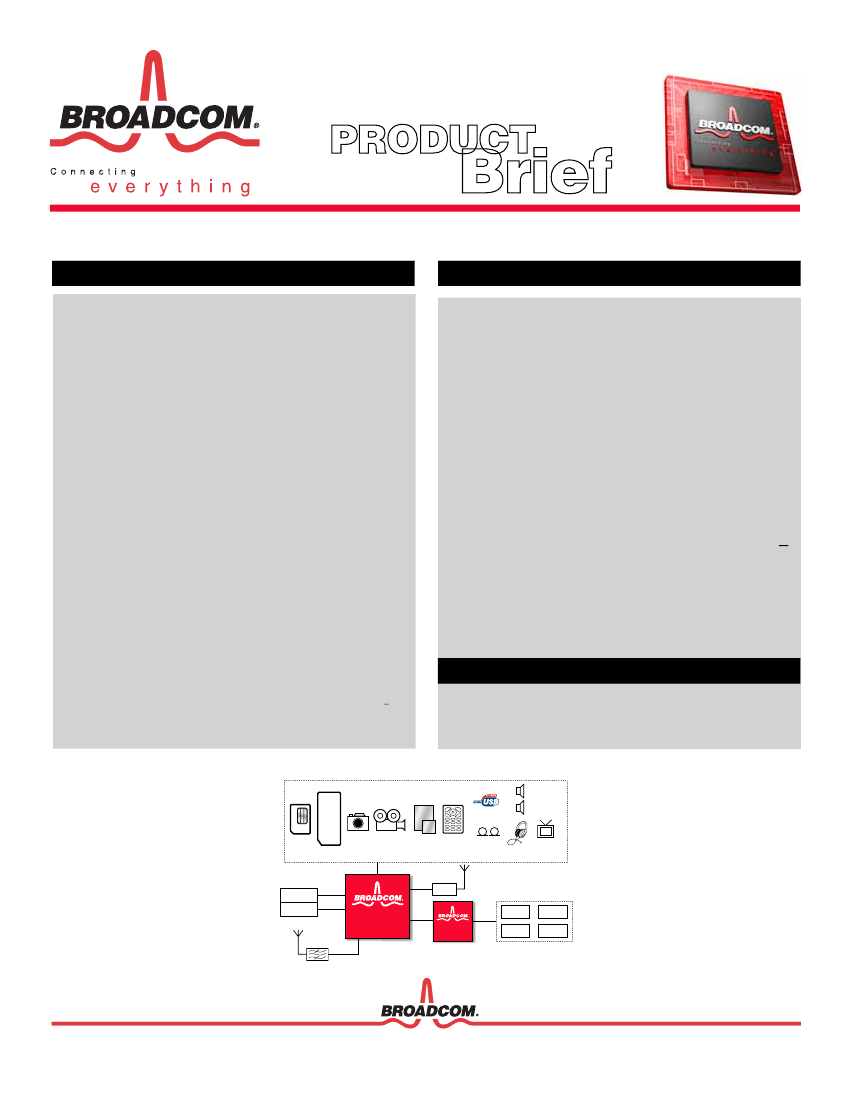

BCM21551
®
Brief
SUMMARY OF BENEFITS
•
•
•
•
•
•
•
•
•
•
•
Enables high-performance, low-cost HSUPA/HSDPA/WCDMA/
EDGE/GPRS handset design.
Enables small, thin design via through integrated multimedia, RF,
Bluetooth, FM and mixed-signal audio.
Low power consumption through utilization of advanced 65-nm
process and on-chip hardware acceleration architecture.
High-performance, 468-MHz ARM11™ processor for superfast
applications computing speed.
Quad-band 2G and multiband 3G for world-wide coverage and
roaming ability.
Advanced echo cancellation with narrowband, and wideband AMR
codecs.
Extended coverage, fewer dropped calls and improved audio quality,
using M-Stream, SAIC, and unique RF design.
Advanced HSDPA DMI equalizer, offering high data throughput in
during mobile and fading conditions.
High-quality audio, video capture, and playback with H.264 HVGA
hardware support.
Fast multimedia and data download using 480-Mbps USBOTG.
SD/MMC, version 4.2, for supporting external T-Flash/SD memory
cards up to 32 GB.
Single-Chip 65-nm HSUPA + RF + BT + FM + Multimedia SoC
FEATURES
•
General Characteristics
•
Single-chip, single-die, HSPA System On a Chip (SoC) with integrated
RF, Bluetooth
®
, FM, multimedia acceleration, high-speed USB, full
mixed-signal audio and dual high-performance applications and
communications CPUs
•
Advanced, release 6-compliant, 7.2 Mbps HSDPA, 5.8 Mbps HSUPA
modem with Class 33 EDGE
•
Utilizes the low-cost, low-power, 65-nm digital CMOS process
•
Compact, 14 mm x 14 mm, 621-pin FBGA package for small, low-cost
PCB design
Multimedia Capabilities
•
Supports 5.0-Mpixel camera sensors with MIPI serial interface
•
30 fps, H.264, MPEG4, H.263 and WMV9 video @ high-quality
HVGA resolution
•
H.264 encode and decode for high-quality, efficient memory usage
•
Dual LCD support; up to 24M colors with MIPI serial interface
•
64-tone polyphonic ringer
•
Digital audio mixing with 5-band equalizer
•
Advanced audio codec support: MP3, AAC, AAC+, eAAC, WMA,
AMR-NB, AMR-WB, WB-AMR+
Extensive Mixed-Signal and Advanced Audio Integration
•
USBOTG HS (480 Mbps) and FS transceivers
•
Stereo headset and earpiece amplifiers with stereo line drivers for
external Class D loudspeaker amplifiers.
•
stereo DACs with greater than 95 dB SNR
•
analog TV-out support (Composite)
•
2G and 3G RF transceiver
•
Bluetooth 2.1 EDR, FM Rx (RDS) and FM Tx
Advanced Technology
•
Self-calibrating 2G and 3G transceivers automatically adjusts to
changing conditions and compensates for manufacturing deviations
•
Broadcom
®
M-Stream technology delivering up to 3 dB better signal
quality
•
•
APPLICATIONS
•
•
3G HSPA feature phones
3G OpenOS Smartphones
•
Typical System Block Diagram
Main Speaker/
Speakerphone
SD
MMC
TFlash
Memory
Stick™
USIM
Cam 1
5.0 Mpix
Cam 2
30 fps
LCD 1
LCD 2
Keypad
USBOTG
Dual Mic.
Stereo
Headset
TV
Out
PA/FEM
DDR/SDRAM
NOR/NAND
Charger
Battery
BCM21551
HSUPA
BT/FM
BCM59055
PMU
Vibrator
Backlight
OVERVIEW
PA & FEM
Antenna
Integrated Bluetooth
®
FM/Rx/Tx BB + RF
TV Out
Integrated 2G/3G RF
USBOTG
480 M bps
BCM21551 HSUPA Baseband Processor
5 Mpix
Application Processor - ARM11
Camera
MIPI CSI
ISP
30 fps H.264 HVGA
LCD 1
LCD 2
UA R T 2
FM/Rx/Tx BB + RF
Communication Processor - ARM11
I/O
SDRAM or
DDR
NAND or NOR
Flash
26 MHz
DCXO
UA R T 1
HSUPA/HSDPA/WCDMA/EDGE
Modem Accelerator
External
Memory
Control
24b LCD
MIPI CSI
Modem and Audio DSP
M-Stream + SAIC
Audio
IHF
PLL
OTP
Memory
Security
Engine
Audio Mixer
5-Band Equalizer
2-D
Engine
Dual Microphone
100 mW
Stereo
BCM4750
GPS
SPI
H.264 & Video
Accelerators
Graphics & Imaging
Accelerators
Image Signal
P rocessor (ISP)
GPIO/
Keypad
Keypad
BCM4325
WLAN
SDIO 2
SDIO 3
SDIO 1
PCM
ETM
I
2
S
BSC
(U)SIM
USIM
Digital TV
Receiver
SD/MMC/T-Flash/CE-AT
A Memory Stick™
Battery
Vibrator
Charger
Backlight
BCM59055
PMU

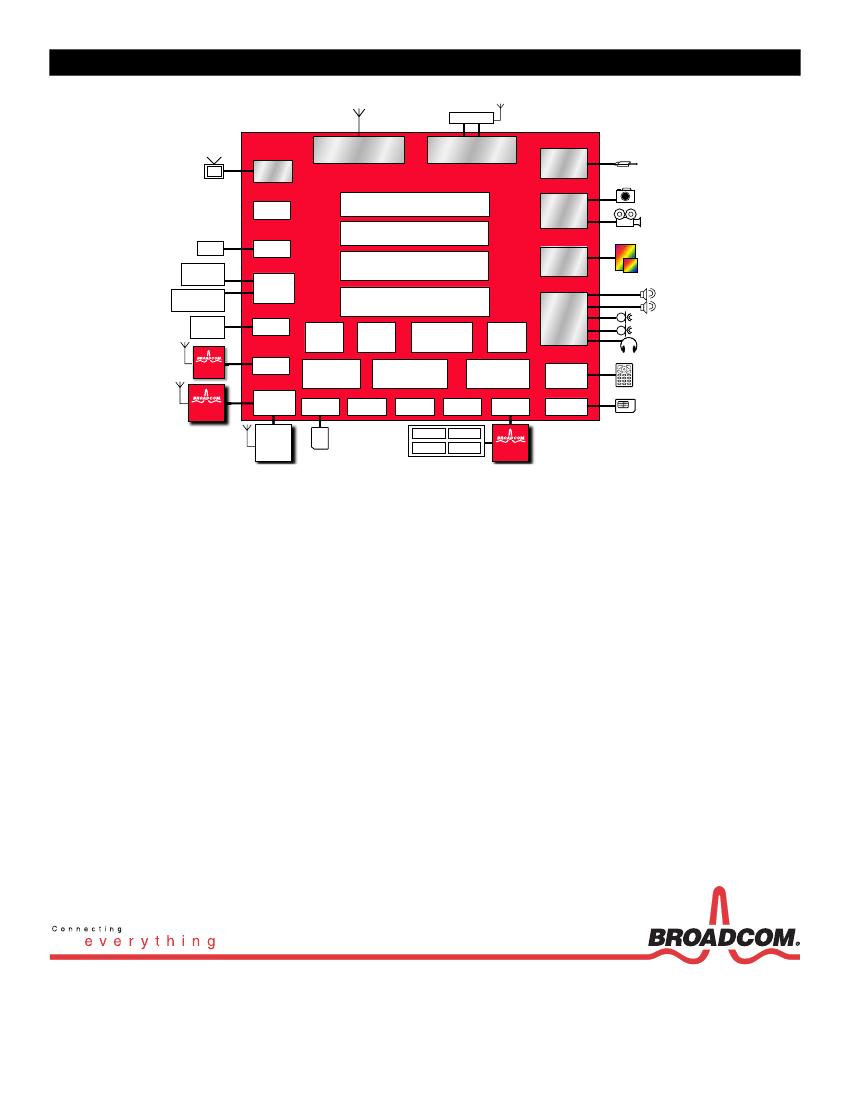

Chip Block Diagram
The BCM21551 is an advanced, single-chip, 65-nm HSUPA/WCDMA/
EDGE SoC with fully integrated 2G and 3G RF transceivers, Bluetooth,
FM and mixed-signal analog. Based on 65-nm technology, the
BCM21551 offers the highest integration, lowest power consumption,
and lowest cost HSUPA solution.
The modem supports 5.8 Mbps HSUPA, 7.2 Mbps HSDPA, WCDMA
384K with Class 33 EDGE modem and integrates all analog and digital
functions on a single, monolithic silicon.
The integrated BCM21551 RF transceiver design delivers high RF
performance while achieving low power consumption through innovative
architecture and circuit design. The RF transceiver draws on Broadcom's
extensive experience in bulk CMOS radio design and directly leverages
Broadcom's BCM2085 and BCM21331 CMOS cellular radio products.
Critical radio performance, while using digital CMOS for radios, is assured
through the use of proprietary, autonomous, real-time calibrations within
the radio.
The BCM21551 integrates Bluetooth 2.1 (Lisbon) + EDR-compliant and
FM/ RDS/RBDS transceivers. The Bluetooth and FM core feature a high
level of integration and eliminates all critical external components, thereby,
minimizing the system’s footprint, power consumption, and cost.
Robust multimedia capabilities are also provided, including 30 fps HVGA
video for H.264 and WMV9, a 5-Mpixel camera with ISP, extensive audio
codec support for music playback, and 2D graphics/blending for the LCD.
The BCM21551 cellular processor has fully integrated audio support for
driving the ear piece, ringer and stereo headsets. It also has stereo line
drivers to support the external Class D amplifiers for driving loudspeakers.
External audio/video coprocessors are not required for the handset design.
Broadcom's proprietary M-Stream high-performance modem and SAIC
advanced signal processing technologies improve cellular handset
reception and voice quality while increasing network capacity and without
sacrificing call quality. The BCM21551 utilizes an advanced release 6-
compliant direct Matrix Inversion (DMI) equalizer for high HSDPA data
throughput in the most challenging radio conditions, thereby offering high
performance without costly receiver diversity.
S
ECURITY
Enhanced security is provided through One-Time Programmable (OTP)
bits and dedicated hardware blocks for secure Boot, memory and DRM
functions. The embedded OTP bits allow the software to boot securely and
verify IMEI security prior to network activation. The OTP bits can also be
used by high-level applications to verify the integrity of Digital Rights
Management (DRM) functions.
Broadcom
®
, the pulse logo,
Connecting everything
®
, and the Connecting everything logo are among
the trademarks of Broadcom Corporation and/or its affiliates in the United States, certain other countries
and/or the EU. Bluetooth
®
is a trademark of the Bluetooth SIG. Any other trademarks or trade names
mentioned are the property of their respective owners.
®
