BE12-4A66-P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> BE12-4A66-P

BE12-4A66-P: DescriptionDry Reed Relay, 4PST, Momentary, 0.024A (Coil), 12VDC (Coil), 288mW (Coil), 0.5A (Contact), 200VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount; CategoryMechanical and electronic products relay; File Size92KB，2 Pages; ManufacturerStandex

Download Datasheet Parametric Compare View All

BE12-4A66-P Overview

Dry Reed Relay, 4PST, Momentary, 0.024A (Coil), 12VDC (Coil), 288mW (Coil), 0.5A (Contact), 200VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount

BE12-4A66-P Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
body width	17.8 mm
body height	10 mm
Body length or diameter	33 mm
Maximum coil current (DC)	0.024 A
Coil operating voltage (DC)	8.4 V
Coil power	288 mW
Coil release voltage (DC)	0.77 V
Coil resistance	550 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	.5A@200VAC
Maximum contact current (AC)	0.5 A
Maximum contact current (DC)	0.5 A
Contact (DC) maximum rated R load	.5A@200VDC
Maximum contact voltage (AC)	200 V
Maximum contact voltage (DC)	200 V
Contact/Output Power Type	AC/DC
JESD-609 code	e3
Manufacturer's serial number	BE12-4A66-P
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	0.7 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	33mm x 17.8mm x 10mm
Relay action	MOMENTARY
Relay function	4PST
Relay type	DRY REED RELAY
release time	0.05 ms
seal	WATER PROOF
surface mount	NO
Terminal surface	TIN
Termination type	SOLDER
Base Number Matches	1

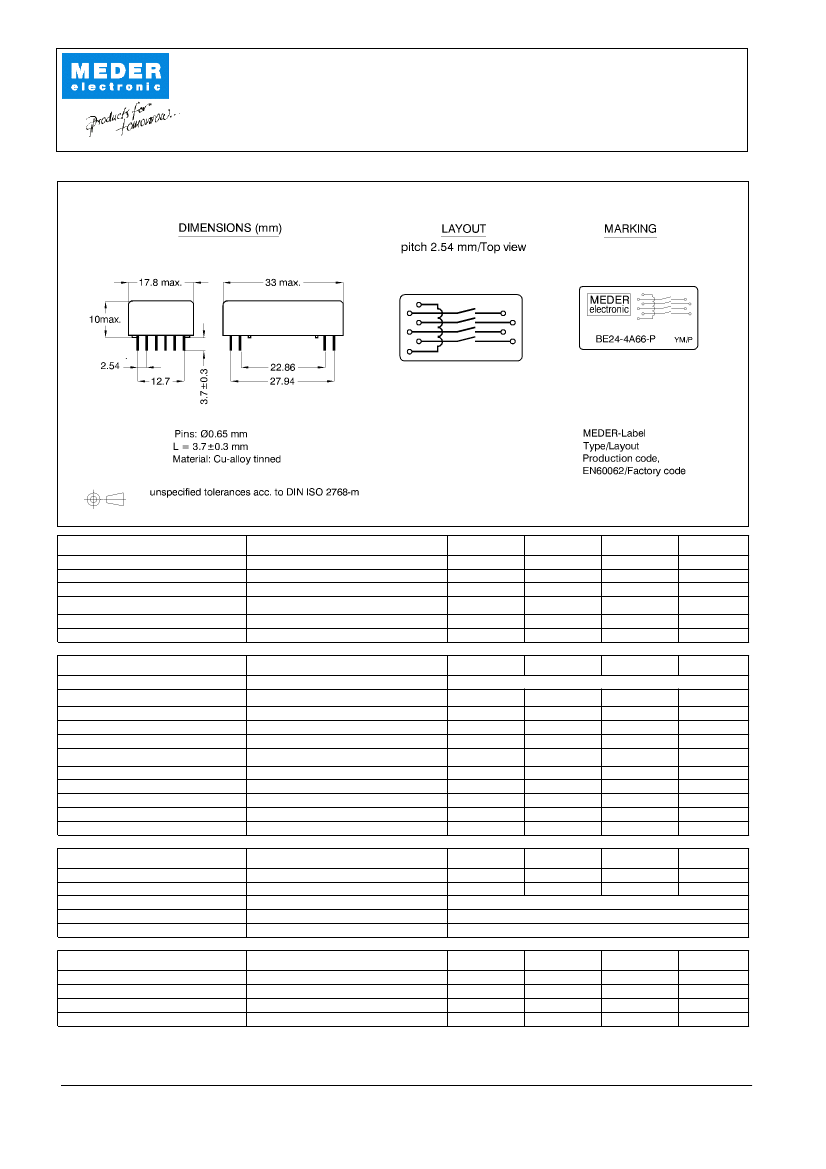

Preview

Download Datasheet

View All

Europe: +49 / 7731 8399 0

USA:

Asia:

+1 / 508 295 0771

+852 / 2955 1682

| Email: info@meder.com

| Email: salesusa@meder.com

| Email: salesasia@meder.com

Item No.:

8812471100

Item:

BE12-4A66-P

BE12-4A71-P

Preliminary Datasheet

Coil Data at 20 °

Coil resistance

Coil voltage

Rated power

Thermal resistance

Pull-In voltage

Drop-Out voltage

Conditions

Min

Typ

Max

Unit

operating temperature + self heating

Contact data 66

Contact-form

Contact rating

Switching voltage (>20 AT)

Switching current

Carry current

Contact resistance static

Insulation resistance

Breakdown voltage (>20 AT)

Operate time incl. bounce

Release time

Capacitance

Conditions

#$ %&" &$" $' ( !

not to exceed their individual max.'s

Min

Typ

Max

Unit

DC or Peak AC

) * + ,&

Start Value

- $. + &.

RH <45 %, 100 VDC test voltage

according to IEC 255-5

measured with 40% overdrive

measured with no coil excitation

@ 10 kHz across open switch

Special Product Data

Dielectric Strength Coil/Contact

Insulation resistance Coil/Contact

Housing material

Sealing compound

Connection pins

Conditions

according to IEC 255-5

RH <45%, 200 VDC test voltage

Min

Typ

Max

Unit

Polycarbonat

Polyurethan

Copper alloy tin plated

Environmental data

Shock

Vibration

Operating temperature

Storage temperature

Conditions

1/2 sine wave duration 11ms

from 10 - 2000 Hz

Min

Typ

Max

Unit

Modifications in the sense of technical progress are reserved

Designed at:

Last Change at:

22.04.09

01.12.11

Last Change by:

MPOTUZAK

WKOVACS

Approval at:

24.04.09

Approval by:

DSTASTNY

Version:

BE12-4A66-P Related Products

	BE12-4A66-P	8812471100	BE12-4A71-P
Description	Dry Reed Relay, 4PST, Momentary, 0.024A (Coil), 12VDC (Coil), 288mW (Coil), 0.5A (Contact), 200VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount	Dry Reed Relay, 4PST, Momentary, 0.024A (Coil), 12VDC (Coil), 288mW (Coil), 0.5A (Contact), 200VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount	Dry Reed Relay, 4PST, Momentary, 0.024A (Coil), 12VDC (Coil), 288mW (Coil), 0.5A (Contact), 200VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
body width	17.8 mm	17.8 mm	17.8 mm
body height	10 mm	10 mm	10 mm
Body length or diameter	33 mm	33 mm	33 mm
Maximum coil current (DC)	0.024 A	0.024 A	0.024 A
Coil operating voltage (DC)	8.4 V	8.4 V	8.4 V
Coil power	288 mW	288 mW	288 mW
Coil release voltage (DC)	0.77 V	0.77 V	0.77 V
Coil resistance	550 Ω	550 Ω	550 Ω
Maximum coil voltage (DC)	12 V	12 V	12 V
Coil/Input Power Type	DC	DC	DC
Contact (AC) maximum rated R load	.5A@200VAC	.5A@200VAC	.5A@200VAC
Maximum contact current (AC)	0.5 A	0.5 A	0.5 A
Maximum contact current (DC)	0.5 A	0.5 A	0.5 A
Contact (DC) maximum rated R load	.5A@200VDC	.5A@200VDC	.5A@200VDC
Maximum contact voltage (AC)	200 V	200 V	200 V
Maximum contact voltage (DC)	200 V	200 V	200 V
Contact/Output Power Type	AC/DC	AC/DC	AC/DC
JESD-609 code	e3	e3	e3
Manufacturer's serial number	BE12-4A66-P	8812471100	BE12-4A71-P
Installation features	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT
operating hours	0.7 ms	0.7 ms	0.7 ms
Maximum operating temperature	70 °C	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C
physical size	33mm x 17.8mm x 10mm	33mm x 17.8mm x 10mm	33mm x 17.8mm x 10mm
Relay action	MOMENTARY	MOMENTARY	MOMENTARY
Relay function	4PST	4PST	4PST
Relay type	DRY REED RELAY	DRY REED RELAY	DRY REED RELAY
release time	0.05 ms	0.05 ms	0.05 ms
seal	WATER PROOF	WATER PROOF	WATER PROOF
surface mount	NO	NO	NO
Terminal surface	TIN	TIN	TIN
Termination type	SOLDER	SOLDER	SOLDER
Base Number Matches	1	1	1
Maker	-	Standex	Standex
Is Samacsys	-	N	N
