Transformers for information technology
10 dB directional coupler
Technical data
■
Double-aperture transformer
■
Recommended frequency range:
B78408A1631A003
DL 3.6, large

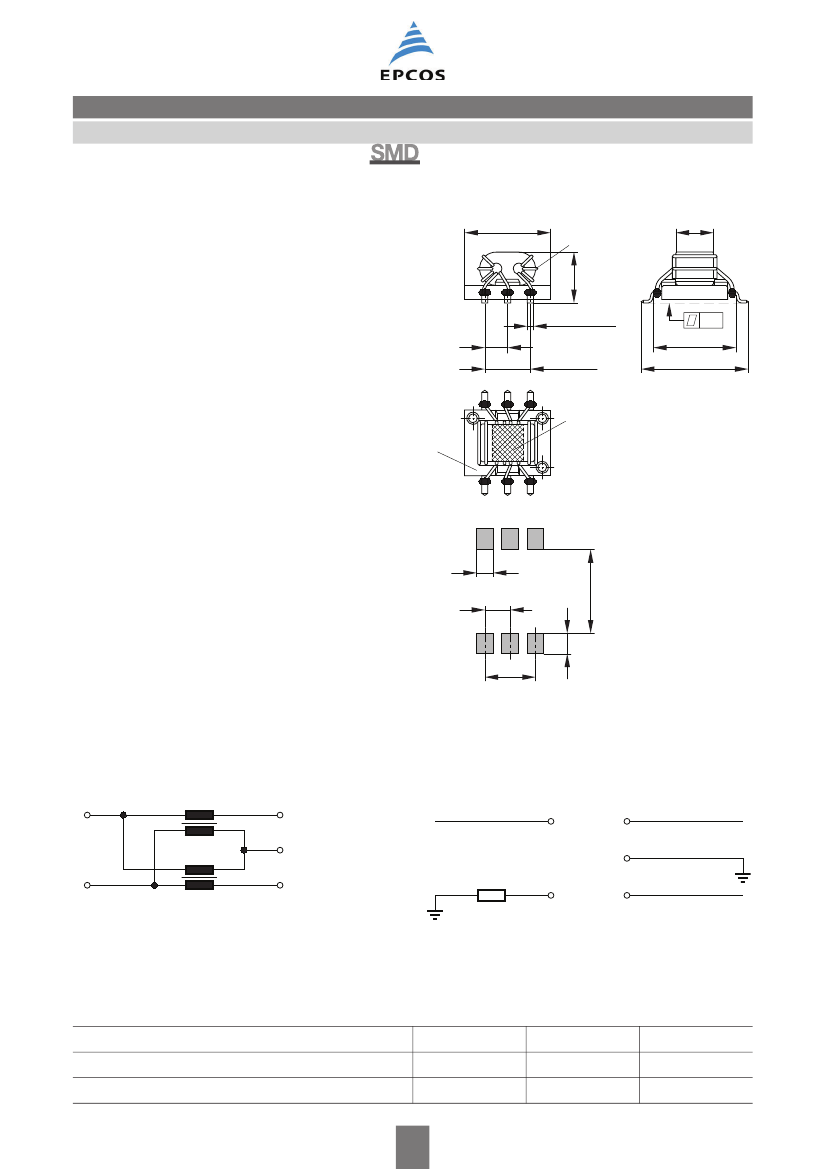

Dimensional drawing
5.7 max.
Exemplary winding
construction
2.5 max.
1
2
3
Feature
■
RoHS-compatible
0.5 x 0.3 (6x)
2 x 1.5 = 3
3.4 max.
30 ... 862 MHz
■
Operating temperature:
40
°C to +85 °C
■
Weight: approx. 105 mg
1.5
0.2
5.5 ref.
7.1 max.
Marking
■
No marking on components
■
Minimum data on reel:
6
5
4
Manufacturer, ordering code,
quantity, date code
Delivery mode and packing unit
■
12-mm blister tape to IEC 60286-3,
Pin 1
marking
Pick-and-place area
1
2
3
FIN0284-Q-E
wound on 330-mm
reel
■
Packing unit: 2100 pcs./reel
1
1.5
1.2
5
Layout
recommendation
2 x 1.5 = 3
FIN0283-I
Dimensions in mm
Circuit diagram and test arrangement
1
6
5
3
4
FIN0273-B
Output
1
6
5
Input
100
Ω
3
4
Coupled
FIN0288-W-E
Insertion loss
Measurement instrument: Network analyzer
Impedance: 100
:
Values specified at +25 °C
Frequency (MHz)
Mainline loss Input/Output (dB)
Coupling Input/Coupled (dB)
Please read
Cautions and warnings
and
Important notes
at the end of this document.
30
1.0
r0.3
10.6
r0.3
2
10/12
470
1.0
r0.3
10.6
r0.4
862
1.4 typ.
10.75
r1
