RF transformer
10 dB directional coupler, 47 … 2000 MHz
B78408A1900A003
DL 3.6
©
EPCOS AG 2005. Reproduction, publication and dissemination of this document, enclosures hereto and the information
contained therein without EPCOS’ prior express consent is prohibited.
RF transformer
10 dB directional coupler, 47 … 2000 MHz
B78408A1900A003
DL 3.6
Technical data
Recommended frequency range:
Operating temperature:
RoHS-compatible
1)

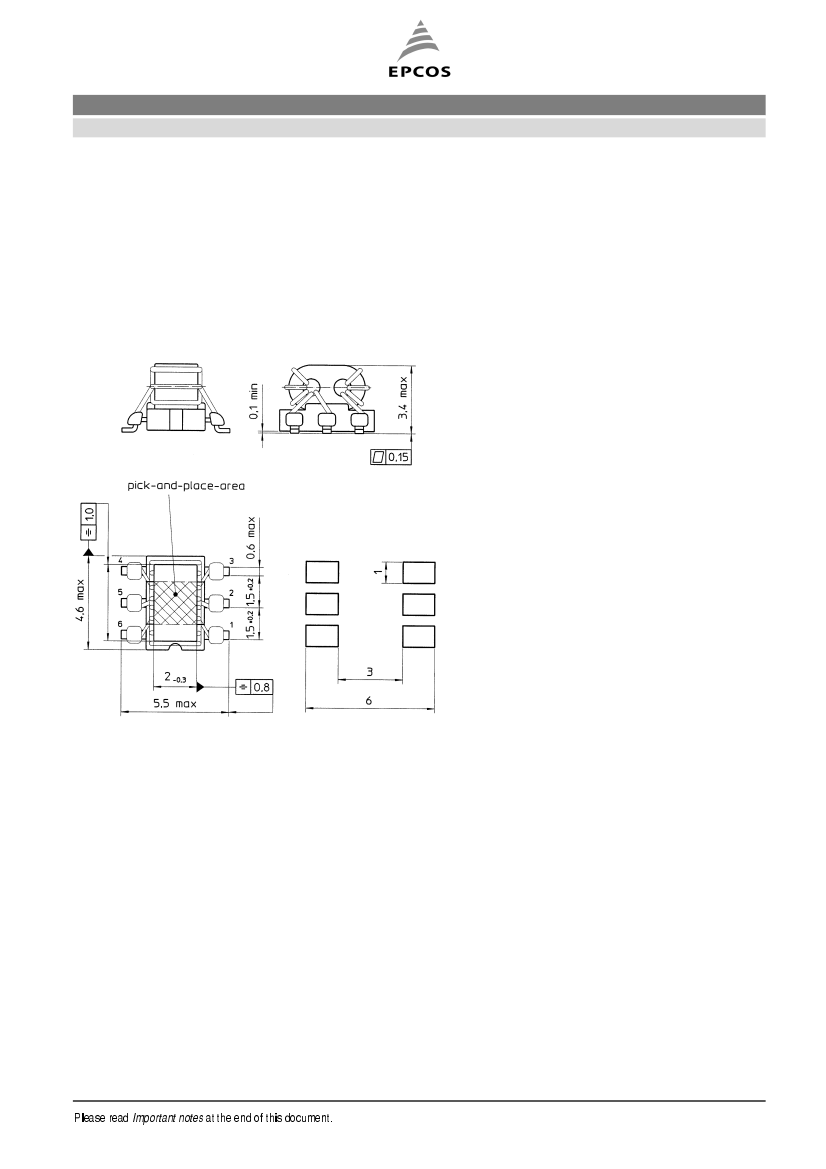

Dimensional drawing and layout
(
Exemplary winding construction)
47 … 2000 MHz
í40
… +85 °C
Layout recommendation
Dimensions in mm
Coplanarity: <0.2 mm
Packing
12-mm blister tape to IEC 60286-3
Reel 330 mm
Packing unit: 2.100 pieces/reel
1)
The components described as “RoHS-compatible” are in compliance with the requirements of the regulations listed below
(“Regulations”) and with the requirements of the provisions which will result from transformation of the Regulations into national law to
the extent such provisions reflect the Regulations.
−
Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003 on the restriction of the use of certain
hazardous substances in electrical and electronic equipment (“Directive 2002/95/EC”);
−
Commission Decision of 18 August 2005 amending Directive 2002/95/EC (2005/618/EC);
−
Commission Decision of 13 October 2005 and of 21 October 2005 amending the Annex to Directive 2002/95/EC (2005/717/EC;
2005/747/EC).
IN TC
2005-12-03
Page 2 of 4
IwpfpÁpfiÁ
Bx
fy
Áy
p
Áf
Á
spÁpyiÁqÁ
stÁihxpy
