Model BD2040J50100A00
Rev B
Ultra Low Profile 0805 Balun
50Ω to 100Ω Balanced
Description
The BD2040J50100A00 is a low profile sub-miniature balanced to unbalanced
transformer designed for differential inputs and output locations on next generation
wireless chipsets in an easy to use surface mount package covering multiple ISM
bands. The BD2040J50100A00 is ideal for high volume manufacturing and is higher
performance than traditional ceramic and lumped element baluns. The
BD2040J50100A00 has an unbalanced port impedance of 50Ω and a 100Ω
balanced port impedance. This transformation enables single ended signals to be
applied to differential ports on modern semiconductors. The output ports have equal
amplitude (-3dB) with 180 degree phase differential. The BD2040J50100A00 is
available on tape and reel for pick and place high volume manufacturing.
Detailed Electrical Specifications:
Specifications subject to change without notice.
ROOM (25°C)
•
•
•
•
•
•
•
•
•
•
Features:
2000 – 4000 MHz
0.7mm Height Profile
50 Ohm to 2 x 50 Ohm
Multiple ISM bands
Low Insertion Loss
Input to Output DC Isolation
Surface Mountable
Tape & Reel
Non-conductive Surface
RoHS Compliant
Parameter
Frequency
Unbalanced Port Impedance
Balanced Port Impedance
Return Loss
Insertion Loss*
Amplitude Balance
Phase Balance
CMRR
Power Handling
Operating Temperature
Min.
2000
Typ.
50
100
13
0.9
0.5
12
19
Max
4000
10.5
1.0
1.1
17
2
+85
-55
Unit
MHz
Ω
Ω
dB
dB
dB
Degrees
dB
Watts
ºC
* Insertion Loss stated at room temperature (Insertion Loss is approximately 0.1 dB higher at +85 ºC)

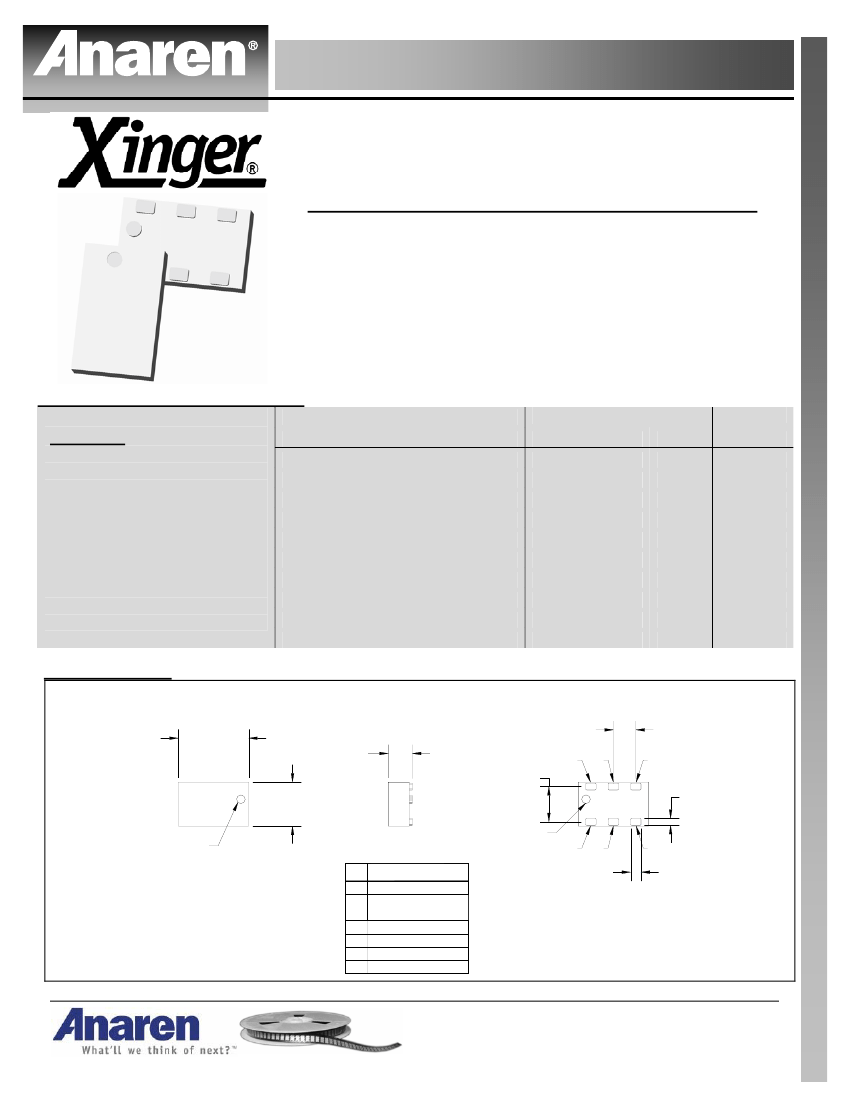

Outline Drawing
Top View (Near-side)
.079
±.004
[2.00
±0.10
]
Side View
Bottom View (Far-side)
.026 [0.65]
.027
±.002
[0.70
±0.05
]
.039 [0.98]
.049
±.004
[1.25
±0.10
]
Orientation
Marker Denotes
Pin Location
Orientation
Marker Denotes
Pin Location
6
5
6X .012
[0.30]
4
1
2
3
6X .009
[0.22]
Dimensions are in Inches [Millimeters]
Mechanical Outline
Pin Designation
1 Unbalanced Port
2 GND / DC Feed
+ RF GND
3 Balanced Port
4 Balanced Port
5 GND
6 NC
Tolerances are Non-Cumulative
Available on Tape
and Reel for Pick and
Place Manufacturing.
USA/Canada:
Toll Free:
Europe
:
(315) 432-8909
(800) 411-6596
+44 2392-232392
Model BD2040J50100A00
Rev B

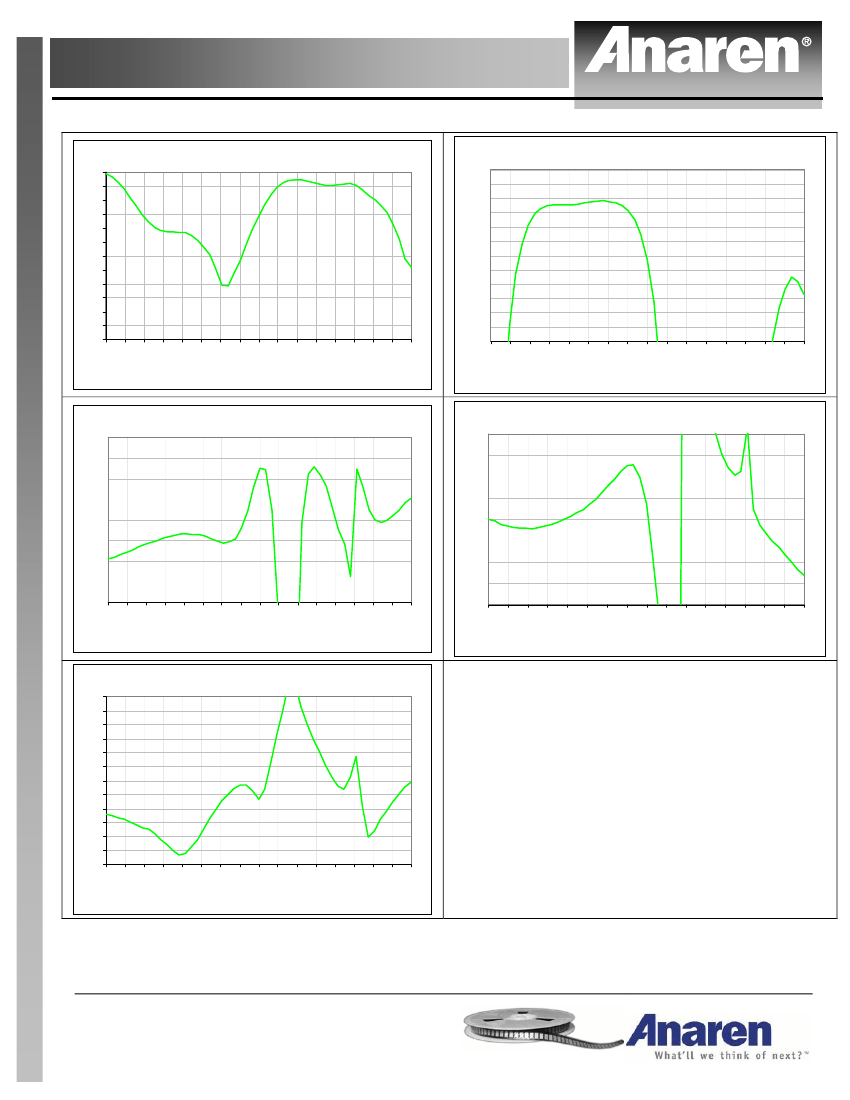

Typical Broadband Performance: 500 MHz. to 8.5 GHz.
Return Loss - Input
0
-3
-6
-9
-12
-15
[dB]
[dB]
Insertion Loss
0
-0.3
-0.6
-0.9
-1.2
-1.5
-1.8
-2.1
-2.4
-2.7
-3
-3.3
-3.6
-18
-21
-24
-27
-30
-33
-36
500
1000
1500
2000
2500
3000
3500
4000
4500
5000
5500
6000
6500
7000
7500
8000
8500
500
1000
1500
2000
2500
3000
3500
4000
4500
5000
5500
6000
6500
7000
7500
8000
8000
Frequency [MHz]
Frequency [MHz]
Amplitude Balance
2
1.5
1
0.5
[dB]
Phase Balance
20
15
10
5
deg
0
-0.5
-1
-1.5
-2
500
1000
1500
2000
2500
3000
3500
4000
4500
5000
5500
6000
6500
7000
7500
8000
8500
0
-5
-10
-15
-20
500
1000
1500
2000
2500
3000
3500
4000
4500
5000
5500
6000
6500
7000
7500
8500
Frequency [MHz]
Frequency [MHz]
CM RR
0
-3
-6
-9
-12
-15
[dB]
-18
-21
-24
-27
-30
-33
-36
500
1000
1500
2000
2500
3000
3500
4000
4500
5000
5500
6000
6500
7000
7500
8000
8500
Frequency [MHz]
USA/Canada:
Toll Free:
Europe:
(315) 432-8909
(800) 411-6596
+44 2392-232392
Available on Tape and
Reel for Pick and Place
Manufacturing.
8500
Model BD2040J50100A00
Rev B

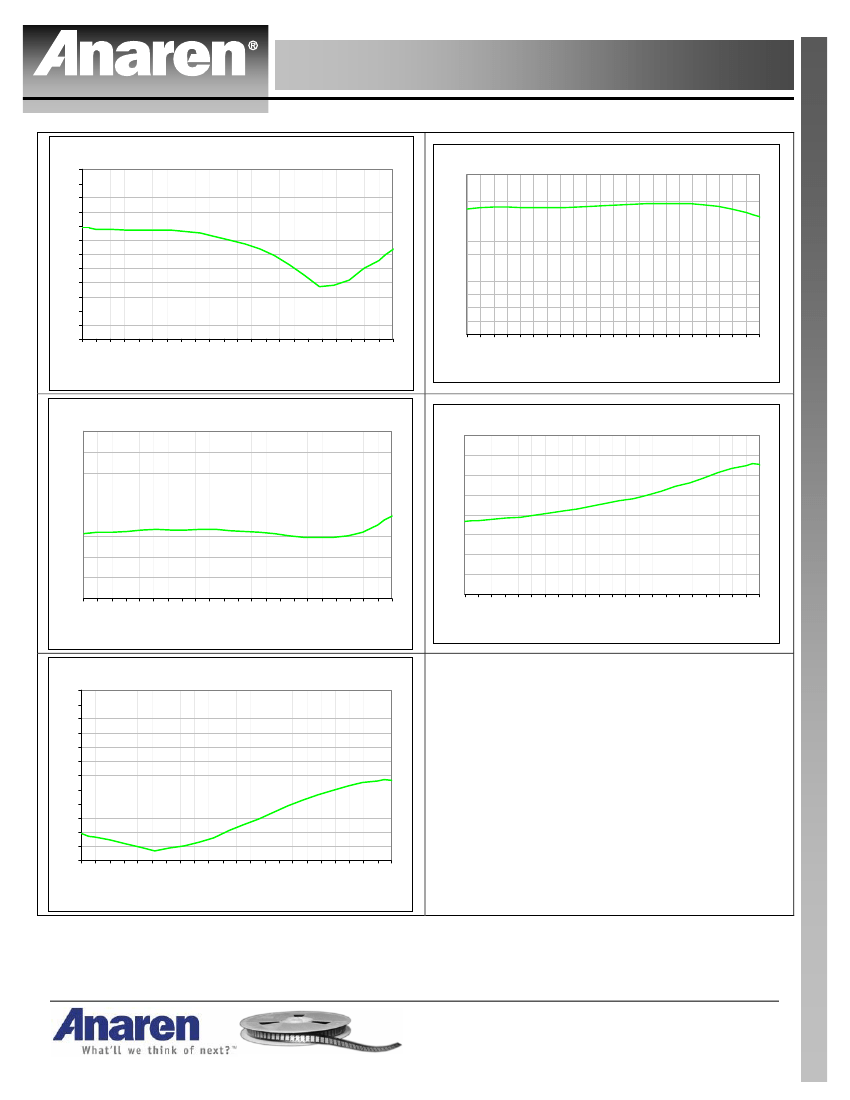

Typical Performance: 1900 MHz. to 4100 MHz.
Return Loss - Input
0
-3
-6
-9
-12
-15
[dB]
Insertion Loss
0
-0.3
-0.6
-0.9
-1.2
-1.5
[dB]
-18
-21
-24
-27
-30
-33
-36
1900
2000
2100
2200
2300
2400
2500
2600
2700
2800
2900
3000
3100
3200
3300
3400
3500
3600
3700
3800
3900
4000
4100
-1.8
-2.1
-2.4
-2.7
-3
-3.3
-3.6
1900
2000
2100
2200
2300
2400
2500
2600
2700
2800
2900
3000
3100
3200
3300
3400
3500
3600
3700
3800
3900
4000
4100
Frequency [MHz]
Frequency [MHz]
Amplitude Balance
2
1.5
1
0.5
[dB]
Phase Balance
20
15
10
5
deg
0
-0.5
-1
-1.5
-2
1900
2000
2100
2200
2300
2400
2500
2600
2700
2800
2900
3000
3100
3200
3300
3400
3500
3600
3700
3800
3900
4000
4100
0
-5
-10
-15
-20
1900
2000
2100
2200
2300
2400
2500
2600
2700
2800
2900
3000
3100
3200
3300
3400
3500
3600
3700
3800
3900
4000
4100
Frequency [MHz]
Frequency [MHz]
CMRR
0
-3
-6
-9
-12
-15
[dB]
-18
-21
-24
-27
-30
-33
-36
1900
2000
2100
2200
2300
2400
2500
2600
2700
2800
2900
3000
3100
3200
3300
3400
3500
3600
3700
3800
3900
4000
4100
Frequency [MHz]
Available on Tape
and Reel for Pick and
Place Manufacturing.
USA/Canada:
Toll Free:
Europe
:
(315) 432-8909
(800) 411-6596
+44 2392-232392
Model BD2040J50100A00
Rev B
Mounting Configuration:
In order for Xinger surface mount components to work optimally, the proper impedance transmission lines must be
used to connect to the RF ports. If this condition is not satisfied, insertion loss, Isolation and VSWR may not meet
published specifications.
All of the Xinger components are constructed from ceramic filled PTFE composites which possess excellent electrical
and mechanical stability having X and Y thermal coefficient of expansion (CTE) of 17 ppm/
o
C.
An example of the PCB footprint used in the testing of these parts is shown below. An example of a DC-biased
footprint is also shown below. In specific designs, the transmission line widths need to be adjusted to the unique
dielectric coefficients and thicknesses as well as varying pick and place equipment tolerances.

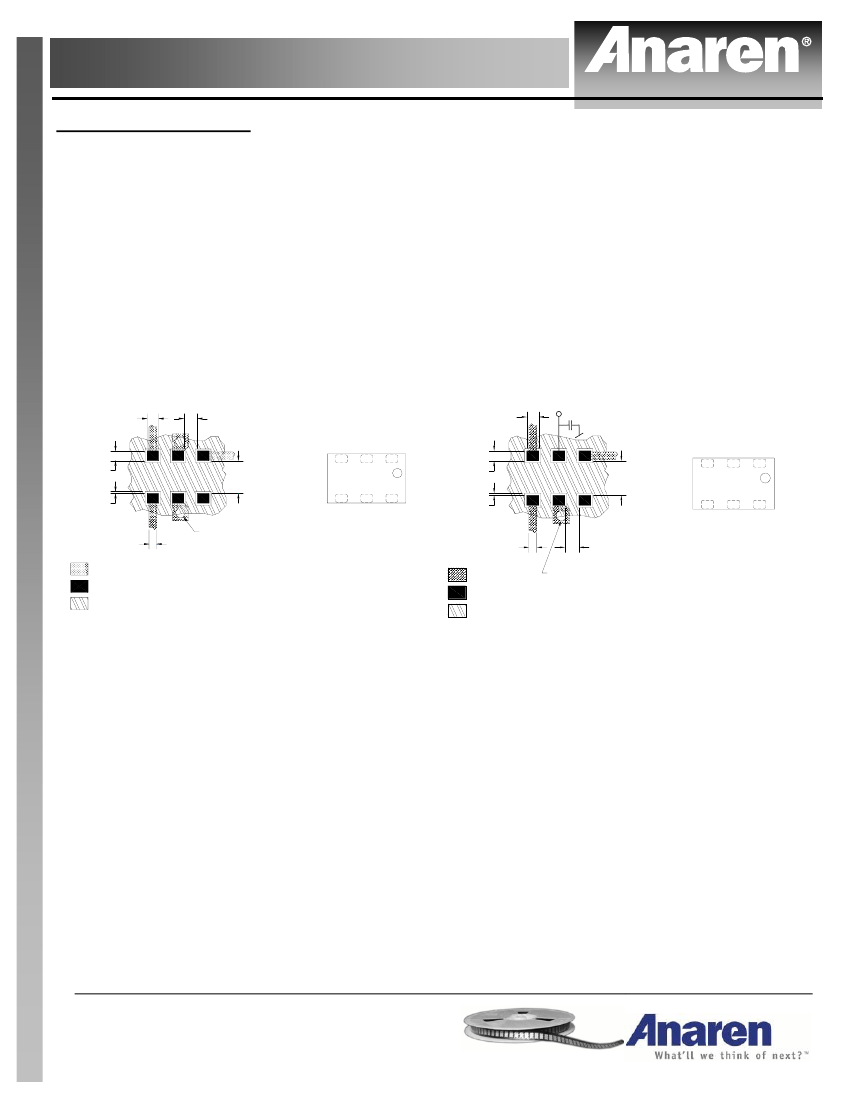

No Bias Footprint
DC Bias Footprint
6X .014
[0.35]
4X .012
[0.30]
Part Orientation (Top View)
6X .016
[0.35]
DC Bias
Part Orientation (Top View)
6X .013
[0.33]
6X .002
[0.05]
6X .011
[0.27]
6X .002
[0.05]
.029
[0.73]
.026
[0.66]
3X Transmission
Line
Circuit Pattern
Footprint Pad (s)
Solder Resist
Plated thru
hole to
ground
3X Transmission
Line
Circuit Pattern
Dimensions are in Inches [Millimeters]
0805 Standard Mounting Footprint
4X .012
[0.30]
Plated thru
hole to
ground
Dimensions are in Inches [Millimeters]
0805 DC Bias Mounting Footprint
Footprint Pad (s)
Solder Resist
USA/Canada:
Toll Free:
Europe:
(315) 432-8909
(800) 411-6596
+44 2392-232392
Available on Tape and
Reel for Pick and Place
Manufacturing.
Model BD2040J50100A00
Rev B

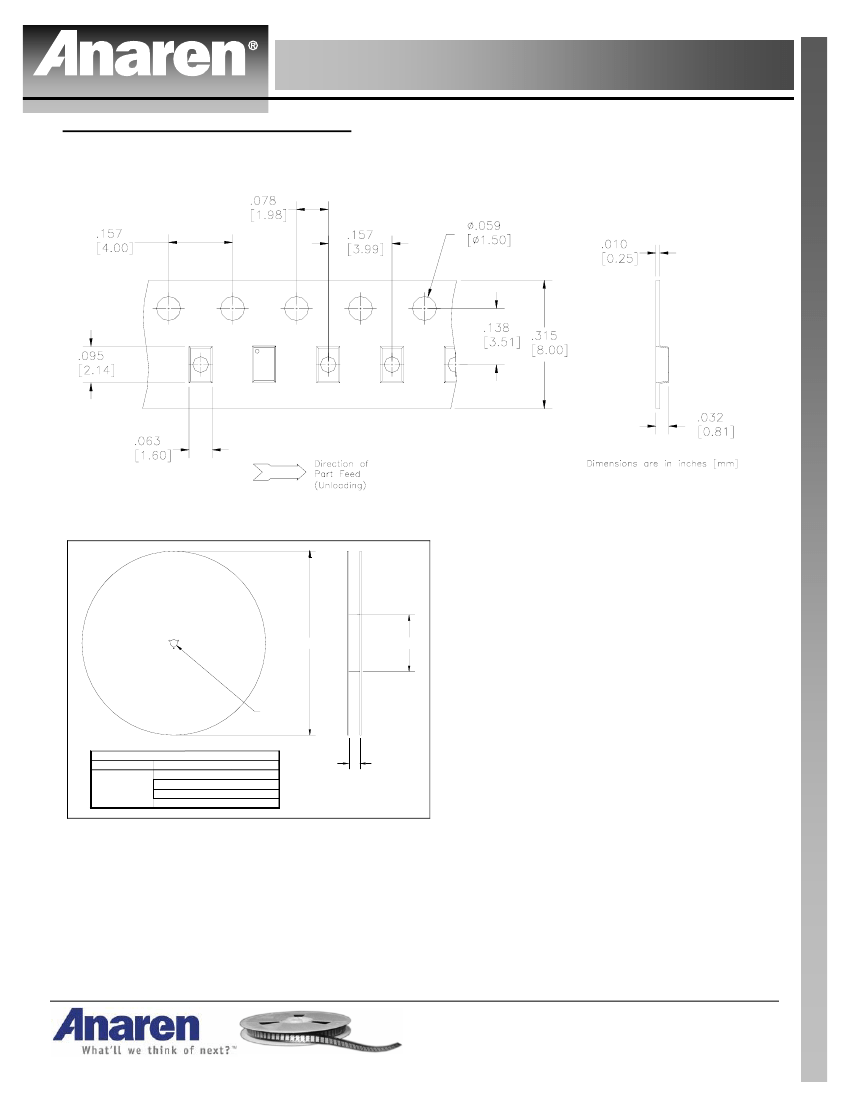

Packaging and Ordering Information
Parts are available in reel and are packaged per EIA 481-2. Parts are oriented in tape and reel as shown below. Minimum order
quantities are 4000 per reel. See Model Numbers below for further ordering information
.
ØA
ØC
ØD
QUANTITY/REEL
4000
TABLE 1
REEL DIMENSIONS (inches [mm])
ØA
7.00 [177.8]
B
0.32 [8.0]
ØC
2.0 [50.8]
ØD
0.512 [13.0]
B
Available on Tape
and Reel for Pick and
Place Manufacturing.
USA/Canada:
Toll Free:
Europe
:
(315) 432-8909
(800) 411-6596
+44 2392-232392
