BT692KHJ

Description
Line Driver, 2 Func, 1 Driver, PQCC28
CategoryAnalog mixed-signal IC    Drivers and interfaces
File Size676KB,16 Pages
ManufacturerCONEXANT
Websitehttp://www.conexant.com/
Download Datasheet Parametric View All

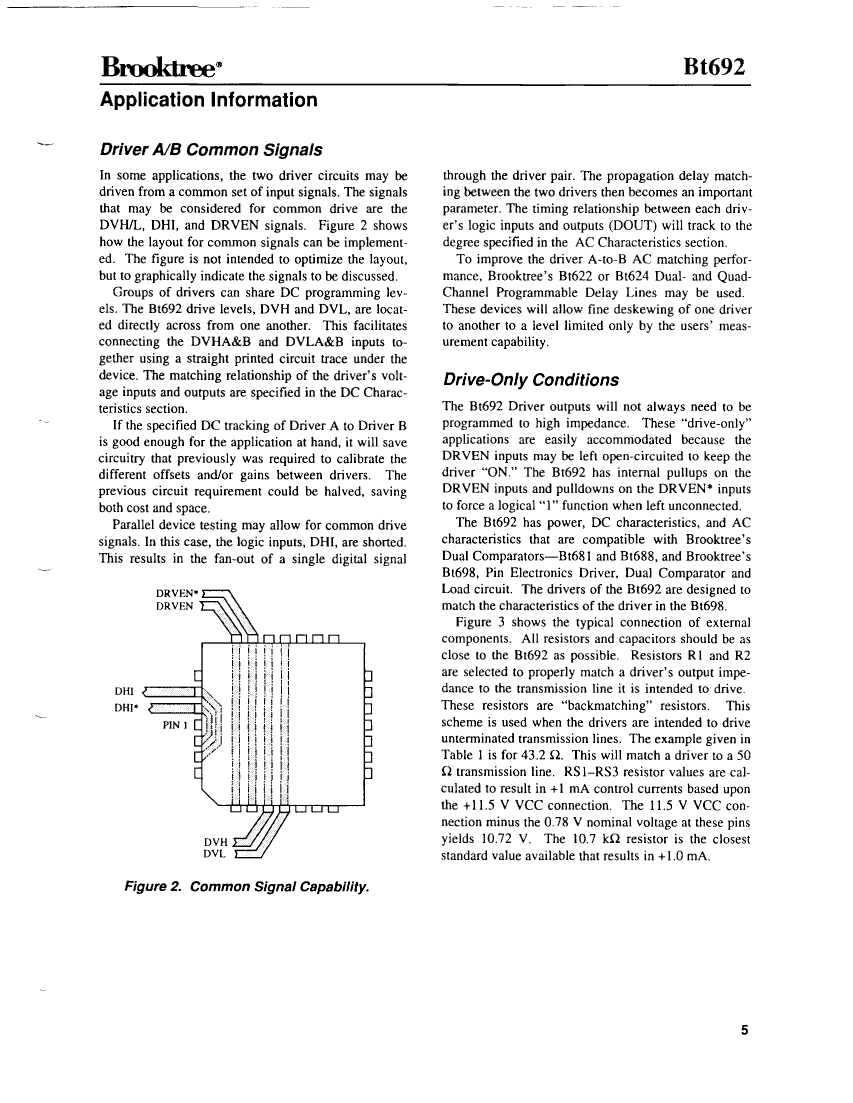

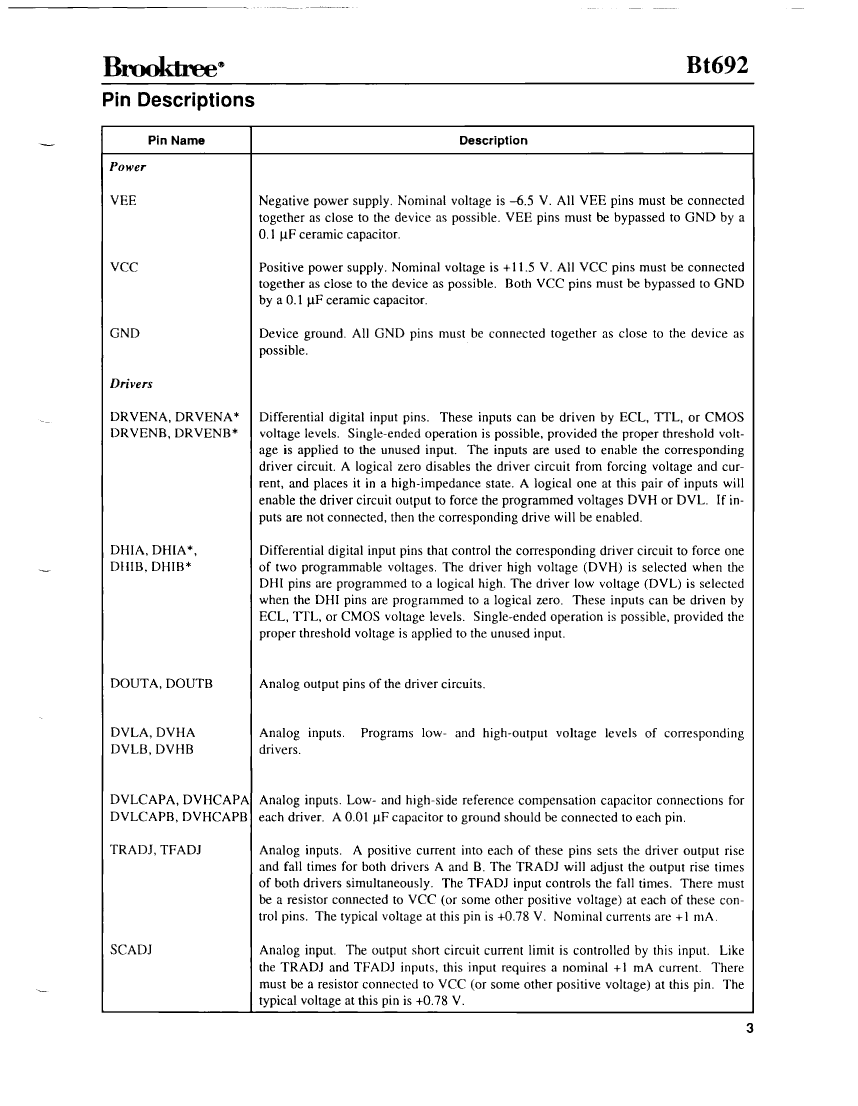

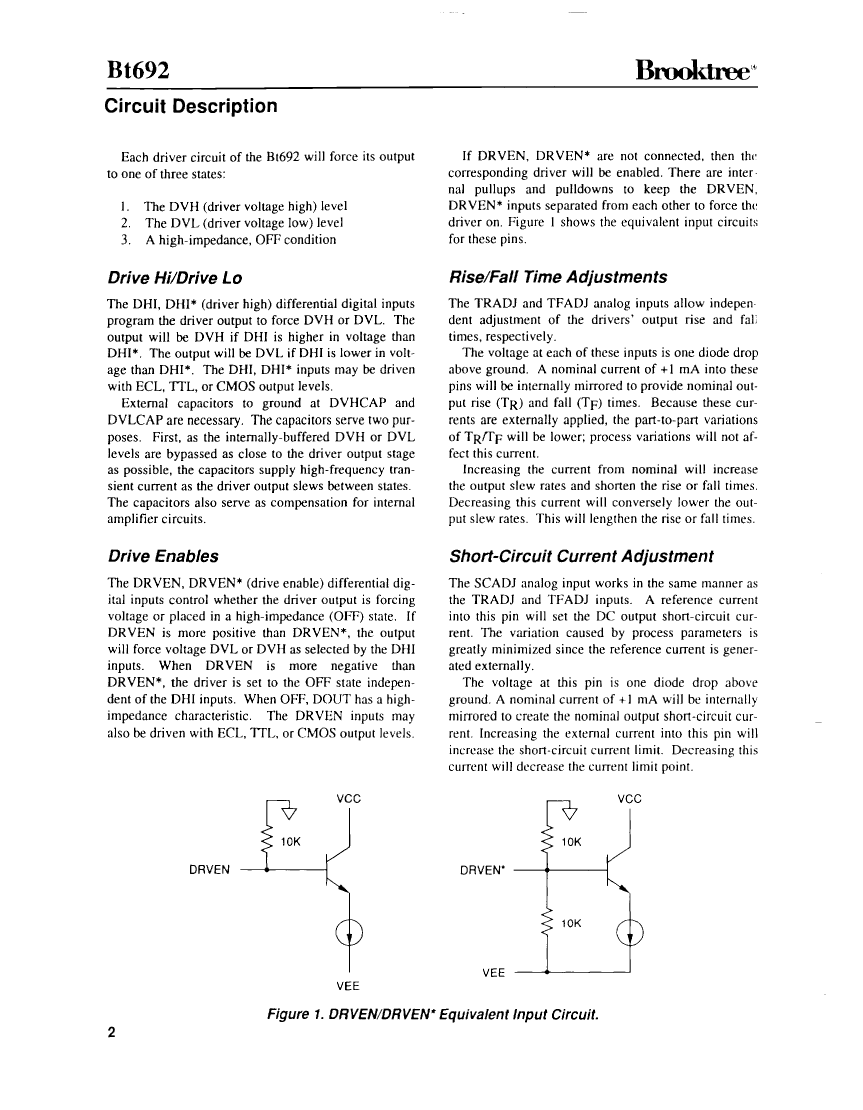

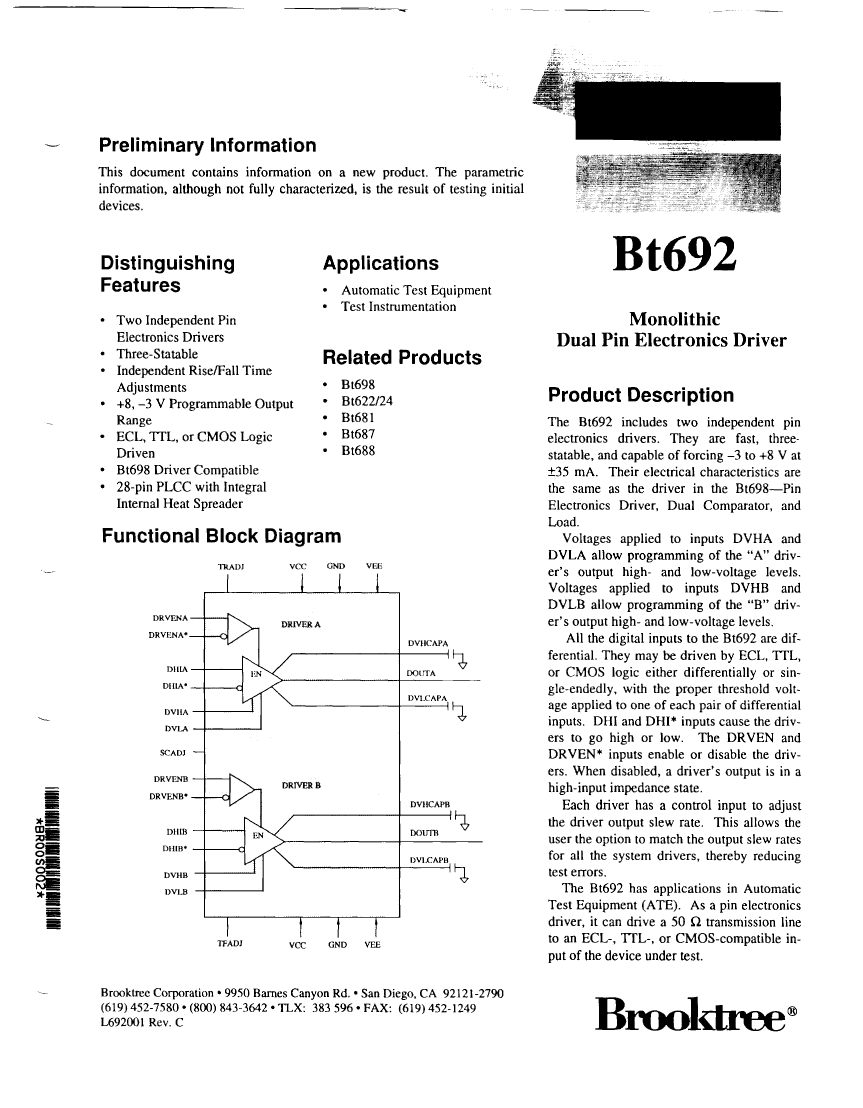

BT692KHJ Overview

Line Driver, 2 Func, 1 Driver, PQCC28

BT692KHJ Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
package instructionQCCJ, LDCC28,.5SQ
Reach Compliance Codeunknown
ECCN codeEAR99
Differential outputNO
Number of drives1
Input propertiesDIFFERENTIAL
Interface integrated circuit typeLINE DRIVER
Interface standardsGENERAL PURPOSE
JESD-30 codeS-PQCC-J28
JESD-609 codee0
Number of functions2
Number of terminals28
Maximum operating temperature70 °C
Minimum operating temperature
Output characteristics3-STATE
Package body materialPLASTIC/EPOXY
encapsulated codeQCCJ
Encapsulate equivalent codeLDCC28,.5SQ
Package shapeSQUARE
Package formCHIP CARRIER
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply11.5,-6.5 V
Certification statusNot Qualified
Maximum receive delay
Maximum slew rate126 mA
Maximum supply voltage12 V
Minimum supply voltage11 V
Nominal supply voltage11.5 V
Supply voltage 1-max-7 V
Mains voltage 1-minute-6 V
Supply voltage1-Nom-6.5 V
surface mountYES
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formJ BEND
Terminal pitch1.27 mm
Terminal locationQUAD
Maximum time at peak reflow temperatureNOT SPECIFIED
maximum transmission delay2.3 ns
Base Number Matches1
