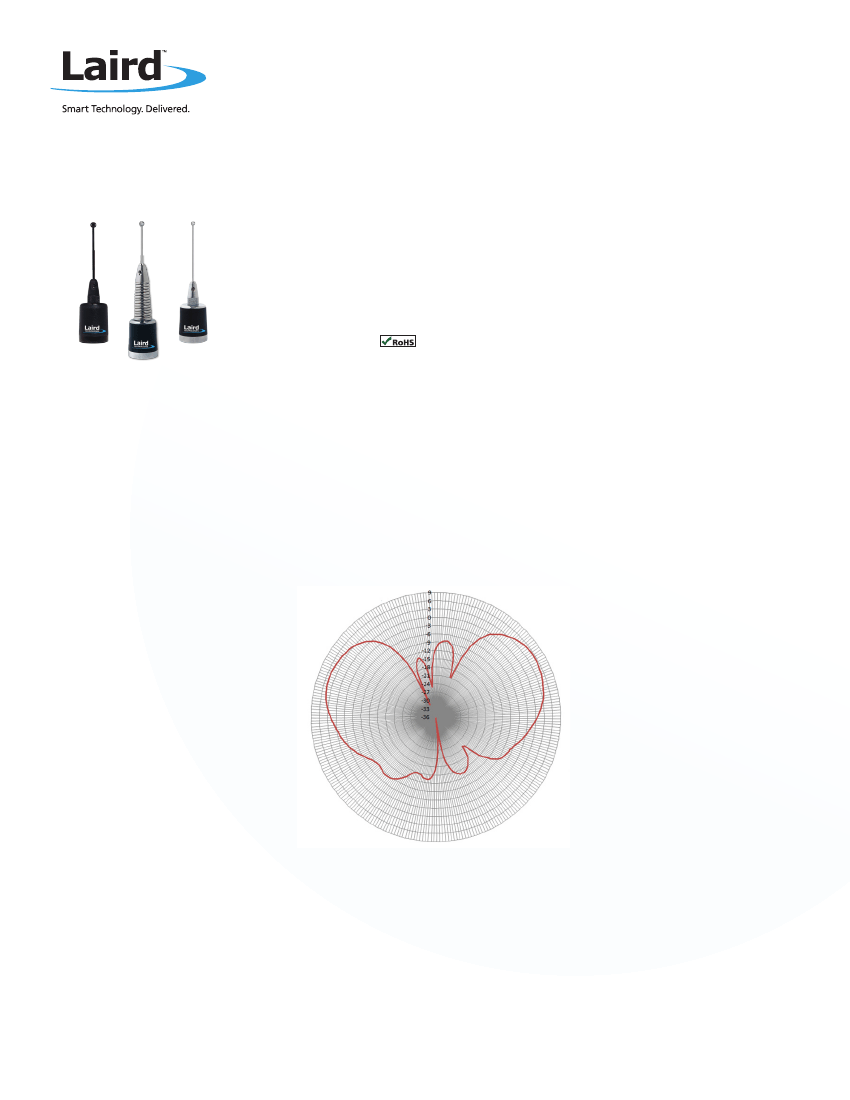

Mobile Load Coil Antenna
Standard B4903
PREMIUM MOBILE LOAD COIL ANTENNAS ARE INDUSTRY STANDARD
Laird Technologies’ ongoing commitment to refinement in mechanical and electrical
design has resulted in the most technically advanced mobile load coil antennas on the
market. Exclusive features such as stainless steel whips, housings constructed with ABS
material injected molded around a solid brass insert, and gold plated push pin contacts
make Laird Technologies the obvious choice for quality and long lasting value for
demanding mobile radio communications.
FEATURES
•
⅝”
wave design for true 3 dBi
performance
• High performance mobile antenna
operates on a 6” diameter (min.)
ground plane
• Straight stainless steel
• Easy installation with optional
NMO Mounts
• 100% tested on a network
MARKETS
• Public safety
• Transportation
• Utility
• Military mobile
ANTENNA PATTERNS
0°
90°
270°
180°
Elevation Polar Radiation Pattern
490 MHz
Americas: +1.847 839.6907
IAS-AmericasEastSales@lairdtech.com
Europe: +44.1628.858941
IAS-EUSales@lairdtech.com
Asia: +86.21.5855.0827.127
IAS-AsiaSales@lairdtech.com
www.lairdtech.com
Mobile Load Coil Antenna
Standard B4903
SPECIFICATIONS
ELECTRICAL
Frequency Range
Gain
VSWR
Maximum Power
Nominal Impedance
Polarization
Pattern
Coaxial Cable Length & Type
(For Vertical Polarization)
Terminations
490-512 MHz
3
dBi
< 1.5:1
100 W
50
Ω
Vertical
Omnidirectional
None
NMO style
MECHANICAL
Color
Height
Diameter
Weight
Material
Mounting Information
Black or chrome
B4903: 11.625 in (29.5275 cm)
B4903S: 12 in (30.48 cm)
1.44 in (36.576 mm)
B4903: .355 lbs (5.68 oz)
B4903S: .425 lbs (6.8 oz)
ABS Base/Stainless Steel Rod
Ground Plane
MODEL AND ORDERING INFORMATION
MODEL
B4903
BB4903
B4903S
BB4903S
DESCRIPTION
490-512 MHz, Chrome Finish
490-512 MHz, Black Finish
490-512 MHz, with Spring, Chrome Finish
490-512 MHz, with Spring, Black Finish
OVERALL HEIGHT
11.625 in
11.625 in
12 in
12 in
ANT-DS-B4903
111114
