FMC1,5/8-ST-3,5GY1CN8BD1-8NZ datasheet, PDF

Datasheet> All Categories > The connector> terminals> FMC1,5/8-ST-3,5GY1CN8BD1-8NZ

FMC1,5/8-ST-3,5GY1CN8BD1-8NZ: DescriptionBarrier Strip Terminal Block,; CategoryThe connector terminals; File Size83KB，4 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com; Environmental Compliance

Download Datasheet Parametric View All

FMC1,5/8-ST-3,5GY1CN8BD1-8NZ Overview

Barrier Strip Terminal Block,

FMC1,5/8-ST-3,5GY1CN8BD1-8NZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Base Number Matches	1

Preview

Download Datasheet

View All

https://www.phoenixcontact.com/in/products/1743032

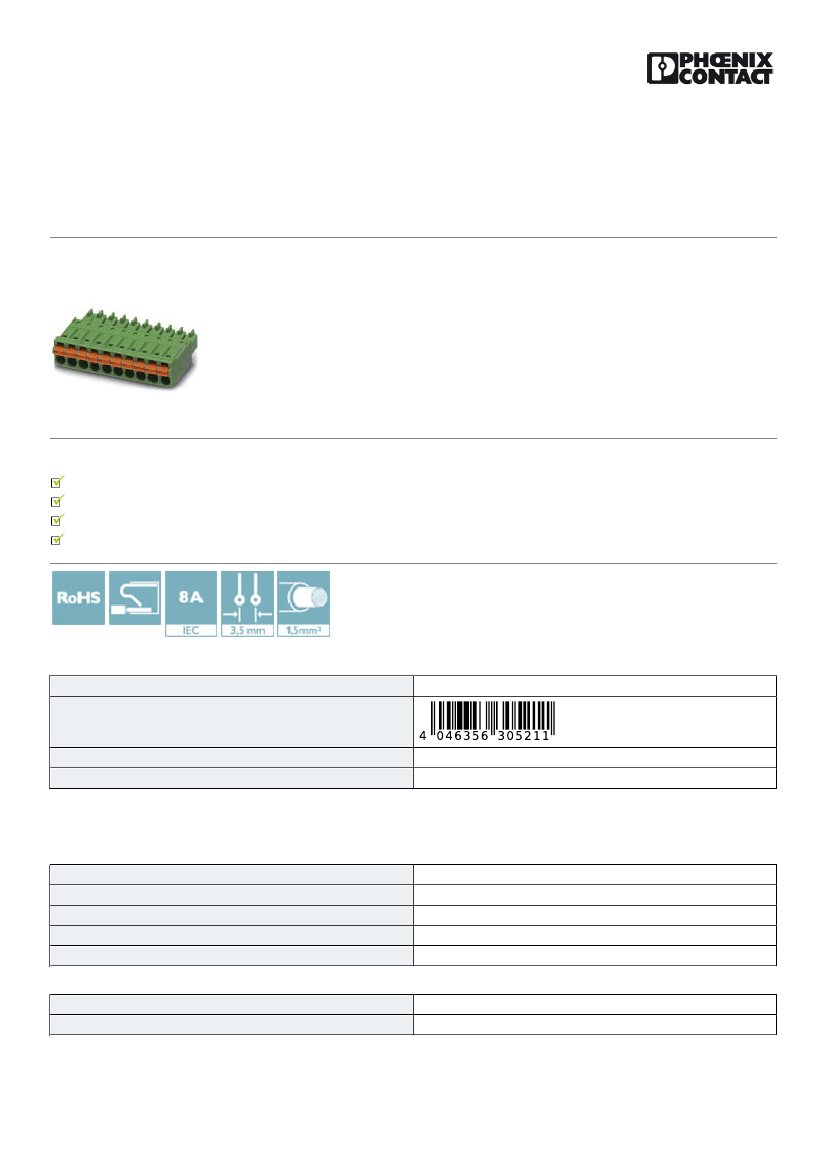

Printed-circuit board connector - FMC 1,5/ 8-

ST-3,5GY1CN8BD1-8NZ - 1743032

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

PCB connector, nominal current: 8 A, number of positions: 8, pitch: 3.5 mm, connection method: Push-in

spring connection, color: gray, contact surface: Tin

The figure shows a 10-position

version of the product

Your advantages

Time saving push-in connection, tools not required

Defined contact force ensures that contact remains stable over the long term

Intuitive use through colour coded actuation lever

Operation and conductor connection from one direction enable integration into front of device

Key Commercial Data

Packing unit

GTIN

Custom tariff number

4046356305211

85366990

Technical data

Dimensions

Length [ l ]

Width [ w ]

Height [ h ]

Pitch

Dimension a

22.9 mm

28.75 mm

7.75 mm

3.5 mm

24.5 mm

General

Range of articles

Number of positions

FMC 1,5/..-ST

01/15/2019 Page 1 / 4
