BE25M-01BJ1-10.0-02-0152

Description
Interconnection Device, LEAD FREE
CategoryThe connector    The connector
File Size677KB,1 Pages
ManufacturerSAMTEC
Websitehttp://www.samtec.com/
Download Datasheet Parametric View All

BE25M-01BJ1-10.0-02-0152 Overview

Interconnection Device, LEAD FREE

BE25M-01BJ1-10.0-02-0152 Parametric

Parameter NameAttribute value
package instructionLEAD FREE
Reach Compliance Codeunknown
Connector typeINTERCONNECTION DEVICE
Base Number Matches1

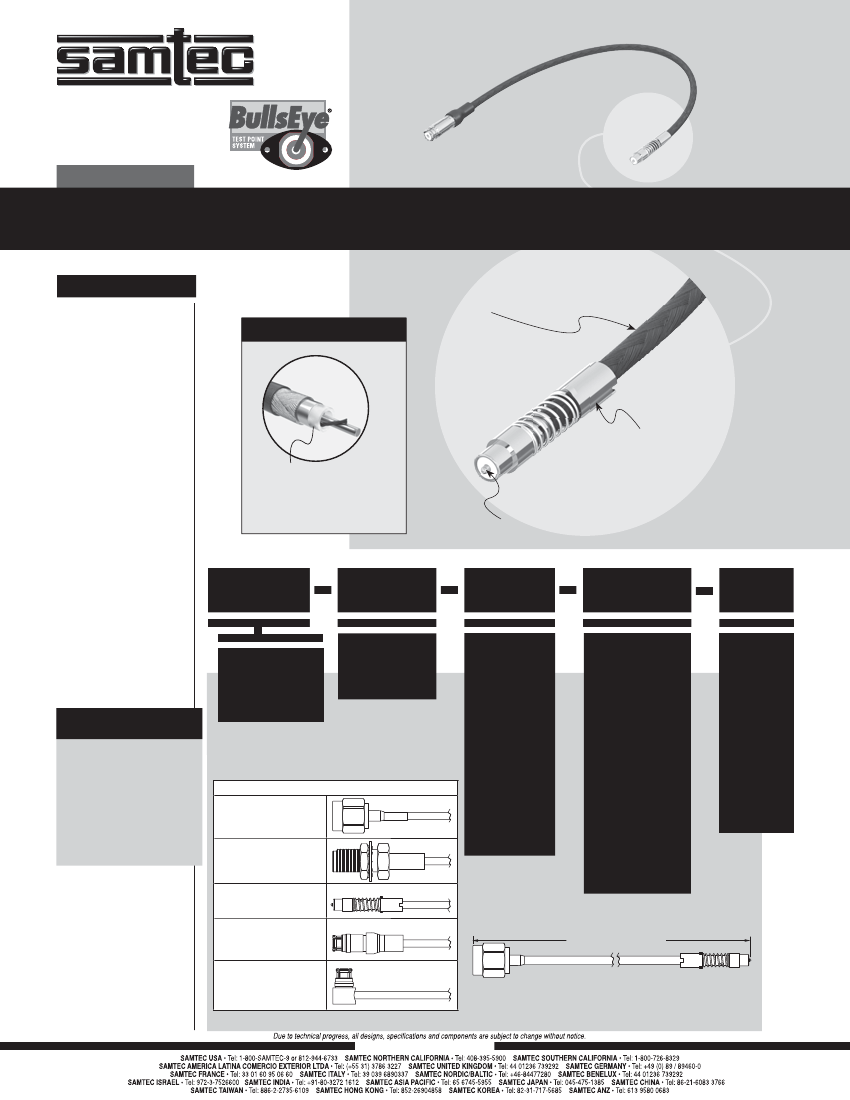

F-213 SUPPLEMENT
BE25M–00SJ7–02.0–02–0305
BE25M SERIES
50Ω MICROWAVE CABLE ASSEMBLIES
SPECIFICATIONS
For complete specifications
see www.samtec.com?BE25M
Mates with:
BAR, SMA, SMP
High performance 25 AWG
air enhanced dielectric microwave cable
RF Connector:
APPLICATION
Outer Contact Material:
Brass (SMA), Gold (SMP)
Center Contact Material:
Brass (SMA Plug)
BeCu (SMA & SMP Jack)
Insulator Material:
PTFE
Operating Temperature:
-65°C to +165°C
Insulator Resistance:
5,000 MΩ
Impedance:
50Ω
Frequency Range:
0~20 GHz (SMA),
DC to 20 GHz (SMP)
V.S.W.R:
1.3 max
RoHS Compliant:
Yes
Bull's Eye
®
termination with
SMA or SMP end option
air enhanced
dielectric
Lower cost alternative
to semi-flexible cables.
Cable assembly for
multi-position test point,
22-position standard
CCA-25M Cable:
Cable Type:
Low Loss Microwave Coax
Gauge:
25 AWG Silver plated Copper
Dielectric:
Air enhanced FEP
Jacket Material:
FEP
Impedance:
50Ω ±1Ω
Propagation Delay:
3.84 nsec/meter
Capacitance:
75.4 pF/meter
CABLE
TYPE
END 2
OPTION
Specify
END 2
OPTION
from chart
PHASE
MATCHING
NO. OF PHASE
MATCHED
OVERALL
LENGTH
–00.0
= No phase
matching
–01
= No phase matched
cable assemblies
(1 cable)
BE25M
= Air Enhanced
Dielectric 25 AWG,
CCA-25M Tempflex
Microwave Cable
–0152
= (152,4 mm)
6.00"
–02.0
= 2.0 Pico-second
(Not available
with -0457 & -0914
cable length)
–02
= 2 phase matched
cable assemblies
–0305
= (304,8 mm)
12.00"
ALSO AVAILABLE
• –SCC11 Extraction Tool:
CAT-EX-SCC-01
• SMP ExtractionTool:
CAT-EX-SMP-01
• Rugged solid dielectric
cable (BE25S Series)
• Additional plating
options available.
Call Samtec.
–05.0
END 2 OPTIONS
–01SP1
= SMA,
Straight Plug
–04
= 4 phase matched
cable assemblies
–0457
= (457,2 mm)
18.00"
= 5.0 Pico-second
(Not available with
-0914 cable length)
–06
= 6 phase matched
cable assemblies
–0914
= (914,4 mm)
36.00"
–10.0
= 10.0 Pico-second
–01BJ1
= SMA,
Bulkhead Jack
–SCC31 =
Bull's Eye
®
Test Point
–00SJ7
= SMP,
Straight Jack
–08
= 8 phase matched
cable assemblies
XXXX = OAL (millimeters)
Note:
Cable lengths longer
than 40.00" (1 meter) are not
supported with S.I. test data.
Note:
Some lengths, styles
and options are non-standard,
non-returnable.
–00RJ7
= SMP,
Right Angle Jack
END 2
PROBE END
WWW.SAMTEC.COM
