B39700-B519-E110

Description
SAW Filter, 1 Function(s), 70MHz, HERMETICALLY SEALED, METAL, DIP-14
CategoryAnalog mixed-signal IC    filter
File Size62KB,3 Pages
ManufacturerEPCOS (TDK)
Environmental Compliance
Download Datasheet Parametric View All

B39700-B519-E110 Overview

SAW Filter, 1 Function(s), 70MHz, HERMETICALLY SEALED, METAL, DIP-14

B39700-B519-E110 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codecompliant
Maximum attenuation frequency (+/- delta f)7250 kHz
Attenuation at maximum frequency40 dB
Center frequency or cutoff frequency (fo/fc)70 MHz
filter typeSAW FILTER
high5 mm
input resistance50 OHM
Maximum insertion loss30 dB
JESD-609 codee4
length25 mm
Manufacturer's serial numberB519
Installation typeTHROUGH HOLE MOUNT
Number of functions1
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Output impedance50 OHM Ω
physical sizeL25XB13XH5 (mm)
Terminal surfaceGold (Au)
width13 mm
Base Number Matches1
SAW Components
Bandpass Filter
Data Sheet
B 519
70,00 MHz
Metal package
DIP 16
Features
q
High performance IF bandpass filter
q
Constant group delay
q
Hermetically sealed metal package
Terminals
q
Gold plated NiFeCo alloy
Dimensions in mm, approx. weight 4,2 g
Pin configuration
2
Input - ground
3
Input
10
Output - ground
11
Output
1, 5, 8, 9, 12, 16 Case - ground
6, 7, 14 15
Not connected
Type
B519
Ordering code
B39700-B519-E110
Marking and Package
according to
C61157-A7-A11
Packing
according to
F61064-V8013-Z000
Electrostatic Sensitive Device
(ESD)
Maximum ratings
Operable temperature range
Storage temperature range
DC voltage
Source power
T
T
stg
V
DC
P
s
– 40/+ 85
– 40/+ 85
0
15
˚C
˚C
V
dBm
source impedance 50
Preliminary format of data sheet.
Terms of delivery and rights to change design reserved.

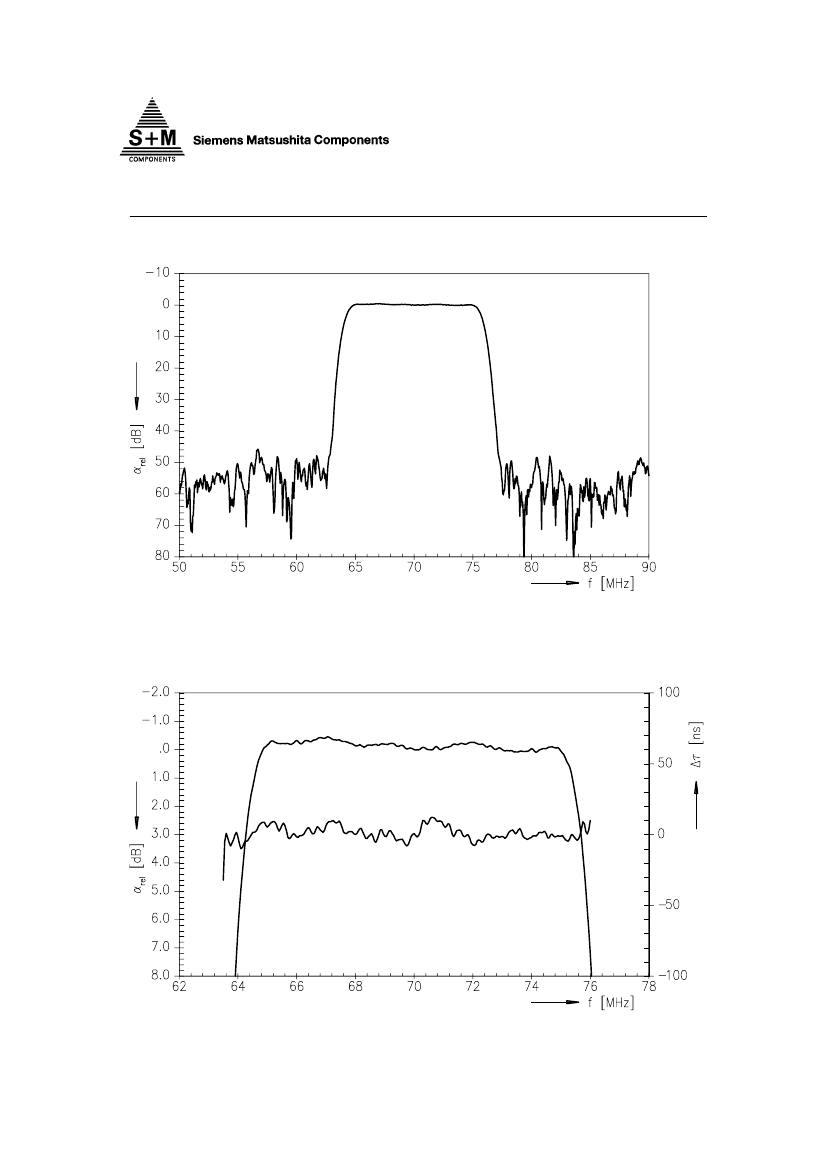

Page 1 of 3
OFW E NK
Aug 28, 1998
