BSFR53G06 Overview

Video Tuner,

BSFR53G06 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	ALSO OPERATES ON 12V & 20V
Built-in IF amplifier	YES
Commercial integrated circuit types	VIDEO TUNER
Maximum input frequency (RF)	1450 MHz
Minimum input frequency (RF)	950 MHz
JESD-30 code	R-XXMA-X
Nominal noise index	9 dB
Number of functions	1
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5 V
Minimum supply voltage (Vsup)	5 V
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

P

RODUCT

I

NFORMATION

®

APPLICATIONS:

•

Satellite receiver

•

Data receiver

RF Components

Group

BSFR/Z-Series

Double Conversion IF

Output Satellite Tuner

NEW HIGH PERFORMANCE DOUBLE

CONVERSION TUNERS FEATURING

PRESCALER CAPABILITY.

FEATURES

•

First LO PLL tuning

Low noise figure, 9 db typical (model dependent)

50 db typical AGC range

Conversion gain range from 20 db to 70 db, typical

Low phase noise

Input and output impedance: 75

Ω

Maximum input level: -20 dBm

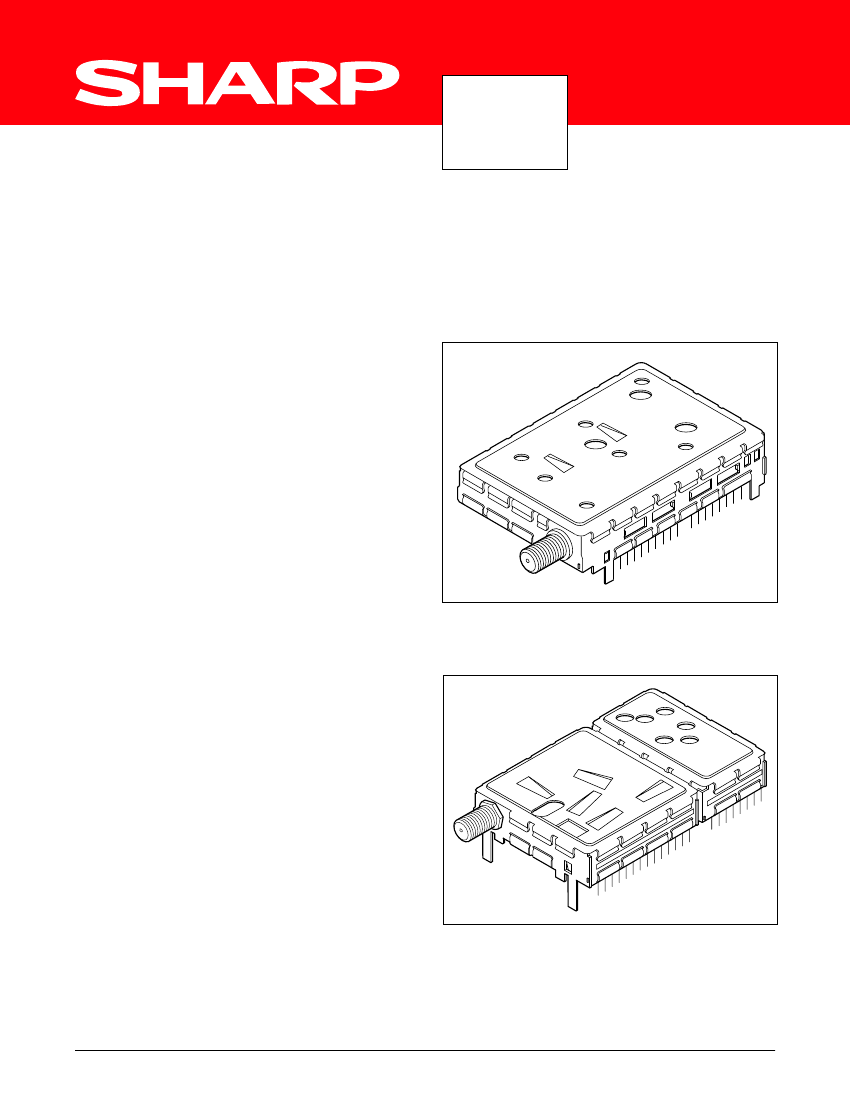

STANDARD BSFR PACKAGE

BSFR-1

SHARP’S new BSFR and BSFZ-series satellite tuners are designed

as a flexible solution for reception of modulated digital data

streams. With a total of seven different models to meet varying

performance requirements, these tuners can be used as receivers for

both digital video and data streams.

Each model provides two local oscillators. The first is phase-

locked loop-tuned using a 3-wire serial data bus. The second local

oscillator is controlled by an analog voltage. All models provide a

prescaler on the second LO output for complete control of the

conversion process.

Several power supply configurations are used: 5 V and 20 V; 5 V,

12 V, and 20 V; and 5 V, 12 V, and 28 V.

STANDARD BSFZ PACKAGE

BSFZ-1

BSFR53G06 Related Products

	BSFR53G06	BSFZ57G05	BSFR53G03	BSFR53G07	BSFR53G10	BSFR53G15
Description	Video Tuner,	Video Tuner, 1-Band,	Video Tuner,	Video Tuner,	Video Tuner,	Video Tuner,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Built-in IF amplifier	YES	YES	YES	YES	YES	YES
Commercial integrated circuit types	VIDEO TUNER	VIDEO TUNER	VIDEO TUNER	VIDEO TUNER	VIDEO TUNER	VIDEO TUNER
Maximum input frequency (RF)	1450 MHz	2050 MHz	1450 MHz	1450 MHz	1450 MHz	1450 MHz
Minimum input frequency (RF)	950 MHz	950 MHz	950 MHz	950 MHz	950 MHz	950 MHz
Number of functions	1	1	1	1	1	1
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5 V	5.25 V	5 V	5 V	5 V	5 V
Minimum supply voltage (Vsup)	5 V	4.75 V	5 V	5 V	5 V	5 V
Base Number Matches	1	1	1	1	1	1
Other features	ALSO OPERATES ON 12V & 20V	-	ALSO OPERATES ON 20V	ALSO OPERATES ON 20V	ALSO OPERATES ON 12V & 20V	ALSO OPERATES ON 12V & 20V
JESD-30 code	R-XXMA-X	-	R-XXMA-X	R-XXMA-X	R-XXMA-X	R-XXMA-X
Nominal noise index	9 dB	-	9 dB	9 dB	9 dB	9 dB
Package body material	UNSPECIFIED	-	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	-	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
surface mount	NO	-	NO	NO	NO	NO
Terminal form	UNSPECIFIED	-	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UNSPECIFIED	-	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
