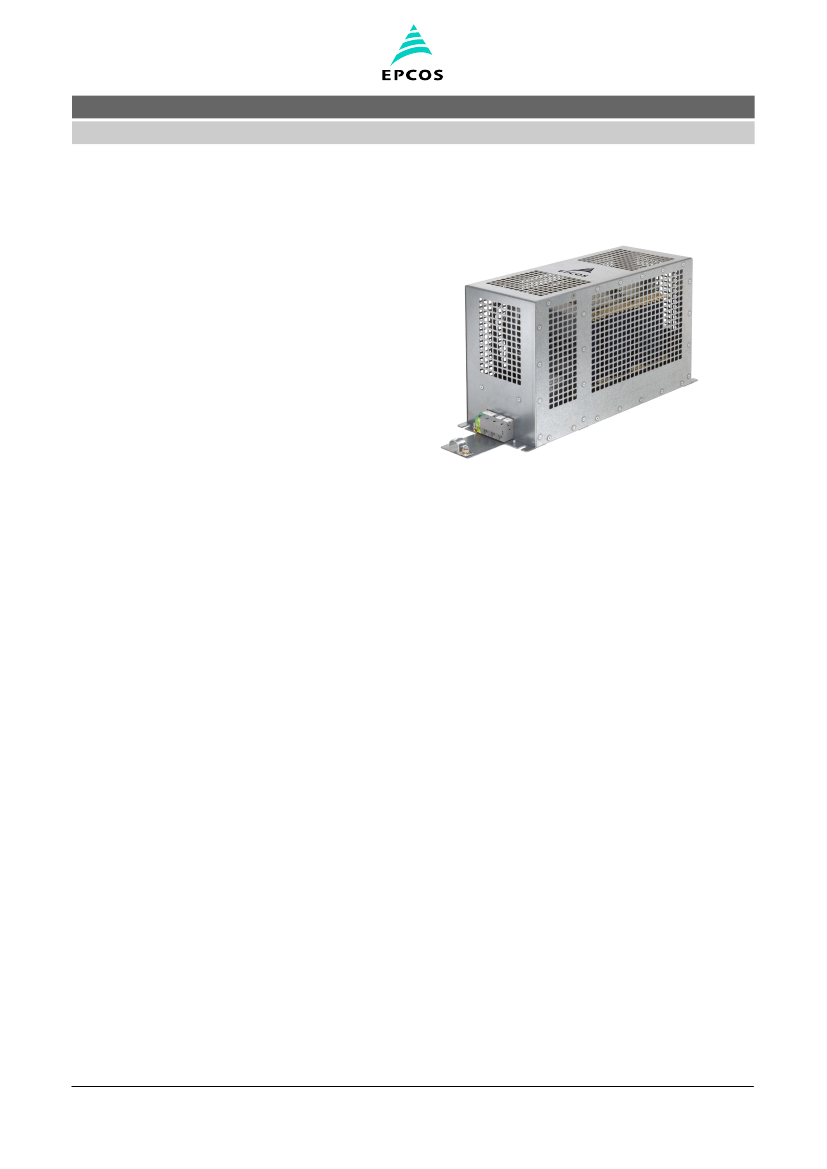

3−line sine−wave EMC output filters
for converters and power electronics
&
SineFormer
%
690 VAC, 95A, 180 A, 320A, 40
°C
Ordering code:
Date:
Version:
B84143V*R290
2008−02−04
01
©
EPCOS AG 2008. Reproduction, publication and dissemination of this data sheet, enclosures hereto and the
information contained therein without EPCOS’ prior express consent is prohibited.
3−line sine−wave EMC output filters
for converters and power electronics
&
SineFormer
%
B84143V*R290
Construction
S
3−line sinus emc output filter
S
Metal case
Features
S
Supersede shielded motor cables
S
Motor noise reduction
S
Reduction of bearing current
S
dv/dt reduction
S
Easy to install
S
Compact design
S
Degree of protection IP 20
1)
S
Design complies with
EN 60939, UL 1283, CSA 22.2 No.8
S
Optimized for long motor cable (up to 1000 m)
and operation under full load
S
No integrated forced ventilation (maintenance−free)
S
Connection to converter DC−link is not necessary
S
Reducing eddy current losses
Applications
S
Frequency converters for motor drives, e.g.
− elevators
− pumps
− traction systems
− conveyer systems
− HVAC systems (heating, ventilation and air conditioning)
S
Power supplies
Terminals
S
Line side ( to converter): shielded cable up to 180 A
S
Load side (to motor): save to touch terminals up to 180 A
Marking
S
Marking on component:
manufacturer’s logo, ordering code, rated voltage, rated current, rated motor frequency,
rated switch frequency, rated temperature, climatic category, date code
S
Minimum marking on packaging: manufacturer’s logo, ordering code,
date code, quantity
1
)
To IEC 60529:2001
Please read
Important notes
and
Cautions and
warnings
at the end of this document.
Page 2 of 11
B84143−V*−R147−01−7659
3−line sine−wave EMC output filters
for converters and power electronics
&
SineFormer
%
B84143V*R290
Typical circuit diagram
converter
U1
V1
W1
motor
U2
V2
W2
Technical data and measuring conditions
Rated voltage U
R
Rated current I
R
Test voltage U
P
Frequency
Motor
Pulse (Switch)
760 VAC
Referred to 40°C ambient temperature
2200 V DC, 2 s (line/line)
2800 V DC, 2 s (line/case)
0 − 100 Hz
4−8 kHz; (320 A: 2,5−3 kHz)
1.5
@
I
R
for 60 s per hour
5 kV/µs
See page 5
In accordance with EN 60068−1
25/100/21 (−25
°C/
+100
°C/
21 days damp heat test)
Overload capability
Max. dv/dt on Filter input
Convection distance to other
devices
Climatic category
Vibration (Sine)
Shock (half sine)
According to DIN IEC60068−2−6
10 cycle, 1 Oct./min., 3−13 Hz: 3 mm,13−200 Hz: 1
g
15
g,
11 ms, 3 axis, 3 shocks per direction 18 total
Current (I
R
) derating depending on From 1000−4000 m 5 % / 1000 m
altitude
Current (I
R
) derating depending on From 40−60
°C
ambient temperature
Temperature
Noise
*
*)
see
*
10 % / 5
°C
Inside iron−choke
130
_C;
housing
70
_C
72
dB(A)
cautions and warnings
Page 3 of 11
B84143−V*−R147−01−7659
Please read
Important notes
and
Cautions and
warnings
at the end of this document.
3−line sine−wave emc output filters
for converters and power electronics
&
SineFormer
%
B84143V*R290
Characteristics and ordering codes
I
R
Terminal Voltage
drop
mm
2
50
150
see
page 9
%
10
10
10
Losses
R
typ
at 100 Hz
Approx.
weight
kg
99
125
235
Ordering code
Approvals
A
W
250
400
750
mΩ
8
6
1
95
(120 A
*
)
180
B84143V0095R290
B84143V0180R290
B84143V0320R290
320
(400 A
*
)
*
)
X = New ordering code will notified to UL file
= Calculated for duty cycle (Ed.) 60%. Acceleration max. 6 s, brake max. 6 s @ 1x minute
Please read
Important notes
and
Cautions and
warnings
at the end of this document.
Page 4 of 11
B84143−V*−R147−01−7659
3−line sine−wave EMC output filters
for converters and power electronics
&
SineFormer
%
B84143V*R290

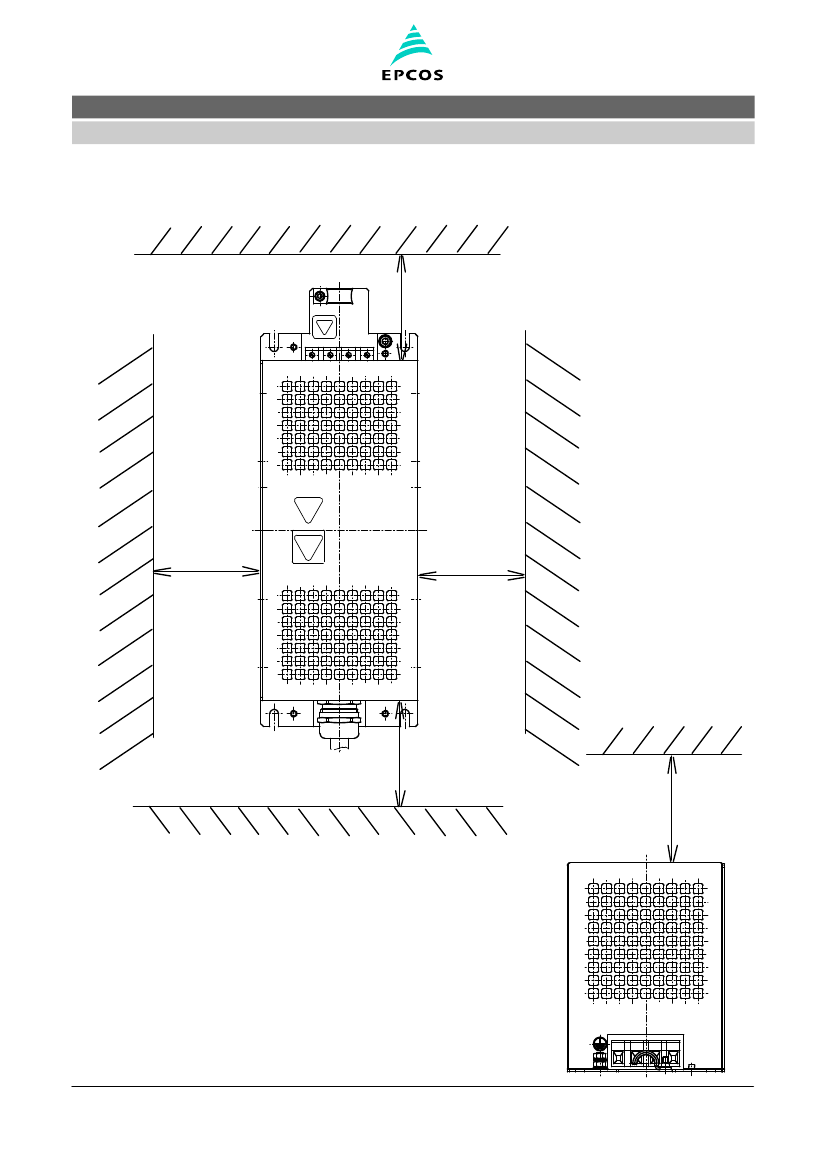

Convection space (cabinet fan recommended)
>200mm
>100mm
>100mm
>200mm
>200mm
Please read
Important notes
and
Cautions and
warnings
at the end of this document.
Page 5 of 11
B84143−V*−R147−01−7659
