EMC filters
2-line filters
SIFI-F for normal insertion loss
Series/Type:
Date:
B84111F
May 2014
© EPCOS AG 2015. Reproduction, publication and dissemination of this publication, enclosures hereto and the
information contained therein without EPCOS' prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
2-line filters
SIFI-F for normal insertion loss
B84111F
Power line filters for 1-phase systems
Rated voltage V
R
: 250 V AC/DC
Rated current I
R
: 3 A to 36 A
Construction
2-line filters
Metal case
Polyurethane potting (UL 94 V-0)
Versions
Standard version (B84111F0000B*/G*)
Medical version for applications with low leakage
current (B84111F0000M*)
Features
Easy to install
Very compact design
Cost-optimized construction
ENEC, UL and cUL approval

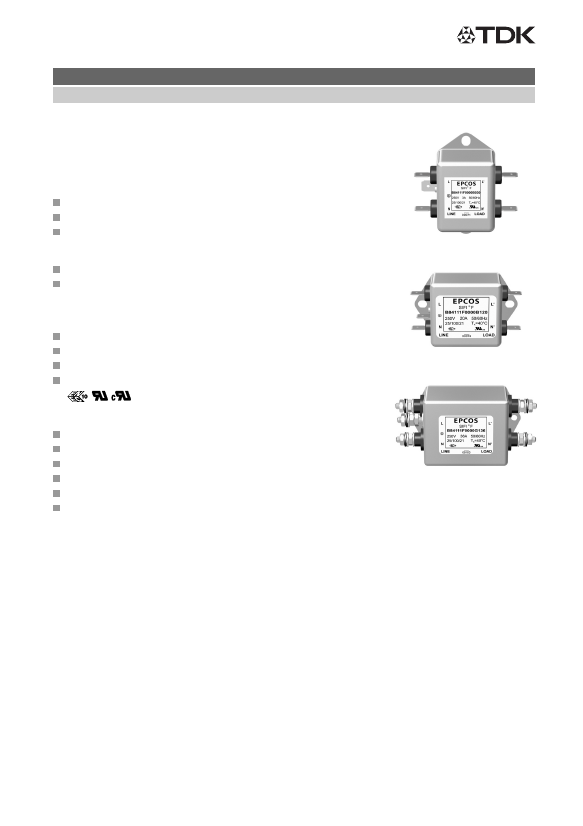

3 A, 6 A, 10 A
16 A, 20 A
Typical applications
Switch-mode power supplies
Industrial electronics
Telecommunications
Data systems
DC applications
Medical equipment (Version B84111F0000M*)
Terminals
3 A ... 20 A: Tab connectors
25 A ... 36 A: Threaded studs
Marking
Marking on component:
Manufacturer's logo, ordering code, rated voltage, rated
current, rated temperature, climatic category, date code,
approvals
Minimum data on packaging:
Manufacturer's logo, ordering code, quantity, date code
25 A, 36 A
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 15
2-line filters
SIFI-F for normal insertion loss
B84111F
Circuit diagram (standard version)
Circuit diagram (medical version)
Technical data and measuring conditions
Rated voltage V
R
Rated current I
R
Test voltage V
test
B84111F0000B*/G*
Test voltage V
test
B84111F0000M*
Leakage current l
LK
Climatic category (IEC 60068-1)
Approvals
250 V AC (50/60 Hz) / 250 V DC
Referred to 40
°C
rated temperature
1770 V DC, 2 s (line/line)
2700 V DC, 2 s (lines/case)
1770 V DC, 2 s (line/line)
2500 V AC, 2 s (lines/case)
At V
R
and 50 Hz
25/100/21 ( 25
°C/+100 °C/21
days damp heat test)
IEC 60939, UL 1283, CSA C22.2 No.8
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 15
2-line filters
SIFI-F for normal insertion loss
B84111F
Characteristics and ordering codes
I
R
A
C
R
X2
µF
C
R
Y2
pF
L
R
mH
2
×
1.5
2
×
1.5
2
×
1.8
2
×
1.8
2
×
0.87
2
×
0.87
2
×
0.65
2
×
0.65
2
×
0.43
2
×
0.43
2
×
0.66
2
×
0.66
2
×
0.4
2
×
0.4
I
LK
mA
0.369
0
0.369
0
0.369
0
0.369
0
0.369
0
0.369
0
0.785
0
Approx. Ordering code
weight
g
90
90
90
90
90
90
130
130
130
130
300
300
300
300
B84111F0000B030
B84111F0000M030
B84111F0000B060
B84111F0000M060
B84111F0000B110
B84111F0000M110
B84111F0000B116
B84111F0000M116
B84111F0000B120
B84111F0000M120
B84111F0000G125
B84111F0000M125
B84111F0000G136
B84111F0000M136
Approvals
V
R
= 250 V AC/DC
3 2
×
0.1
2
×
4700
3 2
×
0.1
6 2
×
0.1
2
×
4700
6 2
×
0.1
10 2
×
0.1
2
×
4700
10 2
×
0.1
16 2
×
0.1
2
×
4700
16 2
×
0.1
20 2
×
0.1
2
×
4700
20 2
×
0.1
25 2
×
0.1
2
×
4700
25 2
×
0.1
36 2
×
0.47
2
×
10000
36 2
×
0.47
×
= Approval granted
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 15
2-line filters
SIFI-F for normal insertion loss
B84111F

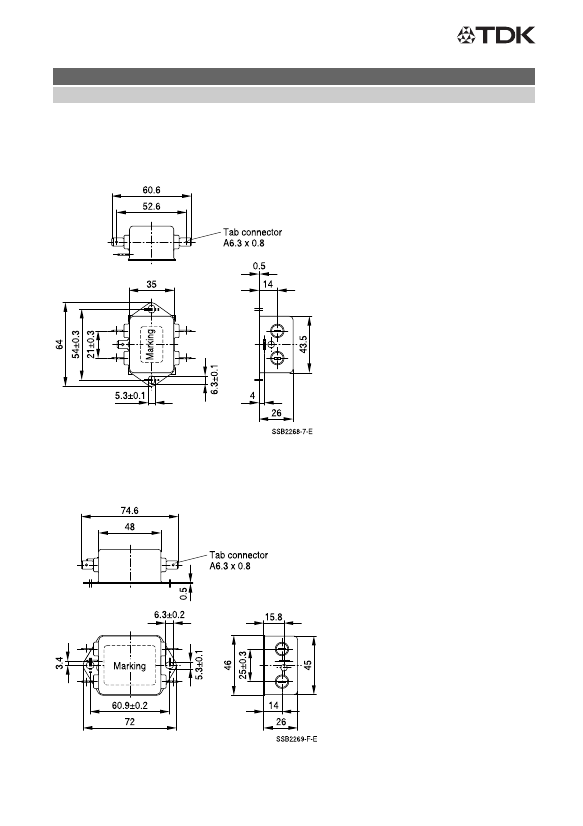

Dimensional drawings
B84111F0000*030, B84111F0000*060, B84111F0000*110 (3 A, 6 A, 10 A)
General tolerances according to ISO 2768 cL
Dimensions in mm
B84111F0000*116, B84111F0000*120 (16 A, 20 A)
General tolerances according to ISO 2768 cL
Dimensions in mm
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 5 of 15
