B39360-X7266-N201

Description
SAW-Video/Sound Filter, 1 Function(s), 36MHz, ROHS COMPLIANT, DUROPLAST, SIP5D, 5 PIN
CategoryAnalog mixed-signal IC    filter
File Size118KB,11 Pages
ManufacturerEPCOS (TDK)
Environmental Compliance
Download Datasheet Parametric View All

B39360-X7266-N201 Overview

SAW-Video/Sound Filter, 1 Function(s), 36MHz, ROHS COMPLIANT, DUROPLAST, SIP5D, 5 PIN

B39360-X7266-N201 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codeunknown
Maximum attenuation frequency (+/- delta f)4750 kHz
Attenuation frequency (+/-Δf) - minimum value4250 kHz
Attenuation at maximum frequency41 dB
Center frequency or cutoff frequency (fo/fc)36 MHz
filter typeSAW-VIDEO/SOUND FILTER
high4.8 mm
input resistance3000 OHM//11.8 pF
Maximum insertion loss22.8 dB
JESD-609 codee2
length13.7 mm
Manufacturer's serial numberX7266D
Installation typeTHROUGH HOLE MOUNT
Number of functions1
Maximum operating temperature65 °C
Minimum operating temperature-25 °C
Output impedance4700 OHM//3 pF Ω
physical sizeL13.7XB2.4XH4.8 (mm)/L0.539XB0.094XH0.189 (inch)
Terminal surfaceTin/Silver (Sn/Ag)
Base Number Matches1

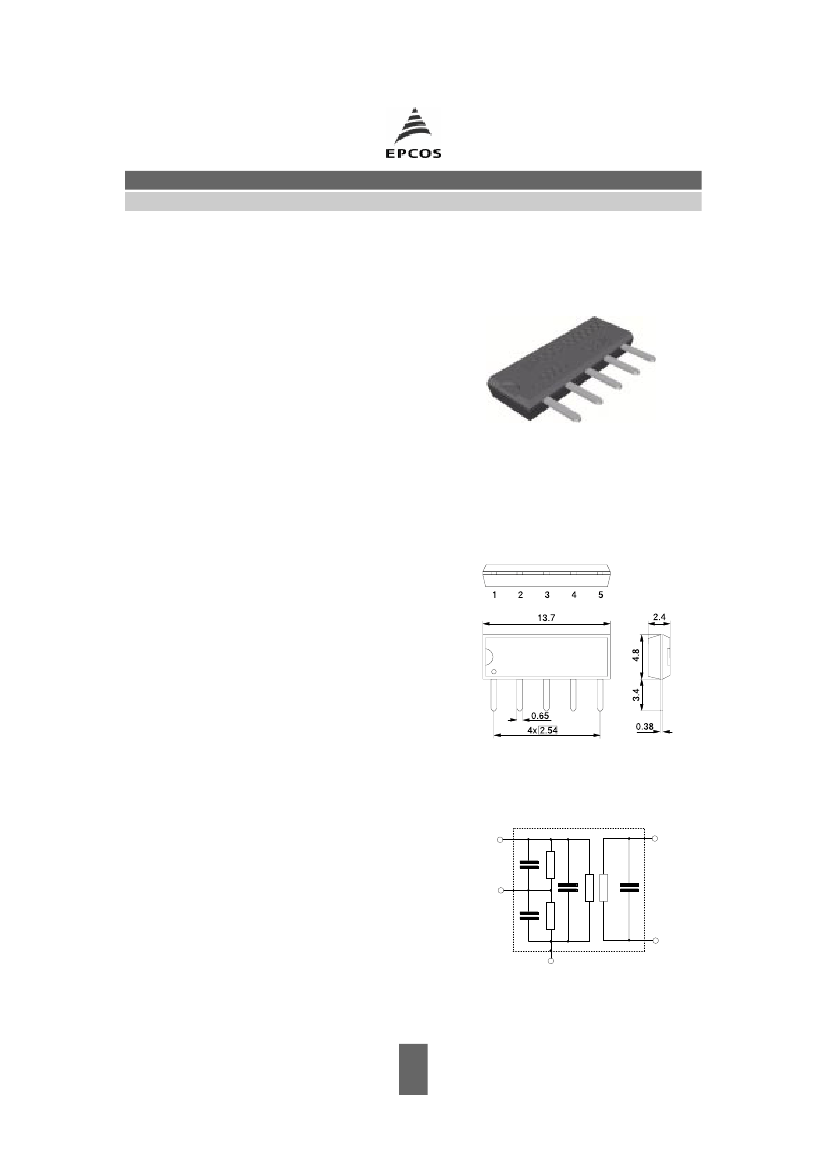

SAW multimedia filters
Series/Type:
X7266D
The following products presented in this data sheet are being withdrawn.
Ordering Code
B39360X7266N201
Substitute Product
Date of Withdrawal
2011-01-14
Deadline Last
Orders
2011-09-30
Last Shipments
2012-09-30
For further information please contact your nearest EPCOS sales office, which will also support you in selecting a
suitable substitute. The addresses of our worldwide sales network are presented at www.epcos.com/sales.
