BPW0484-10-07201-22AAAL datasheet, PDF

Datasheet> All Categories > The connector> socket> BPW0484-10-07201-22AAAL

BPW0484-10-07201-22AAAL: DescriptionIC Socket, BGA484, 484 Contact(s),; CategoryThe connector socket; File Size229KB，1 Pages; ManufacturerQuickLogic Corporation; Websitehttps://www.quicklogic.com

Download Datasheet Parametric Compare View All

BPW0484-10-07201-22AAAL Overview

IC Socket, BGA484, 484 Contact(s),

BPW0484-10-07201-22AAAL Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Contact to complete cooperation	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	BGA484
Number of contacts	484
Base Number Matches	1

Preview

Download Datasheet

View All

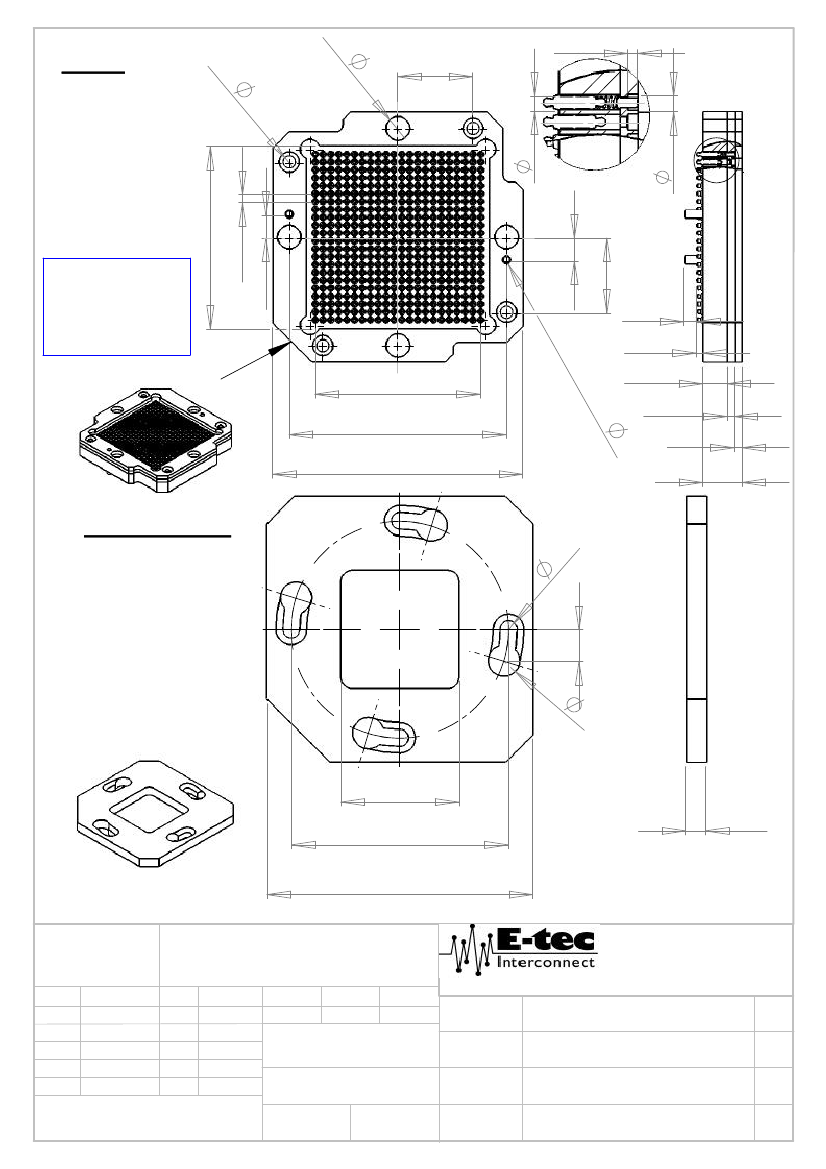

0.50

9.52

0.75

Socket

Material: TG 200

Thickness: 5.00 mm

484 contacts

Chip 23.00

Pitch 1

2.90

DETAIL X

SCALE 5 : 1

2.90

9.52

Recommended PCB layout

for BGA socket

PCB holes for locating pegs

- ø1.10±0.02

PCB pad diameter

-minimum ø0.60

1.60

0.80

3.10

0.90

"Corner A1"

27.55

31.75

Retention frame

Material: Epoxy FR4

Thickness: 2.50mm

E tec E-tec

US.EP.CN.TW.JP.KR Patent

E tec E-tec

US.EP.CN.TW.JP.KR Patent

E tec E-tec

US.EP.CN.TW.JP.KR Patent

27.55

33.75

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN MILLIMETERS

SURFACE FINISH:

GENERAL TOLERANCES: ±0.10

LINEAR:

ANGULAR:

2.2

E tec E-tec

0.80

1.6

Remark:

ati

loc

pti

2.50

"top view drawing"

Modification

DRAWN

CHK'D

APPV'D

MFG

Q.A

Visa

BUA screw Lock socket, 484 pins,

Pitch 1.00mm, matrix 22x22

Retention frame, Basic system 18x18

Date

Drawn by

Date

Name

www.e-tec.com

w/o locating pegs

"E-tec code"

w/o locating pegs

"Production code"

with locating pegs

L.G

K.S

29.09.05

L.G

29.09.05

BUW484-1030-22AA01

BUW0484-10-07201-22AAA

A4V

Scale: 2:1

MATERIAL:

SHEET 1 OF 1

"E-tec code"

with locating pegs

BUW484-1030-22AA01L

BPW0484-10-07201-22AAAL

REVISION

The information contained in this drawing is proprietary to

E-tec and shall not be reproduced or disclosed in whole

or in part or used for any design or manufacture except whe

such user possesses direct, written authorization from E-tec

WEIGHT:

"Production code"

G:\Konstruktion\Dessins Solidworks\Dessins\BGA\BUW\BUW484\BUW0484-10-07201-22AAA\BUW0484-10-07201-22AAA

BPW0484-10-07201-22AAAL Related Products

	BPW0484-10-07201-22AAAL	BUW484-1030-22AA01L	BUW484-1030-22AA01	BUW0484-10-07201-22AAA
Description	IC Socket, BGA484, 484 Contact(s),	IC Socket, BGA484, 484 Contact(s),	IC Socket, BGA484, 484 Contact(s),	IC Socket, BGA484, 484 Contact(s),
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	BGA484	BGA484	BGA484	BGA484
Number of contacts	484	484	484	484
Base Number Matches	1	1	1	1
