BMB1E0220BN3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> BMB1E0220BN3

BMB1E0220BN3: Description1 FUNCTIONS, 0.3A, FERRITE CHIP, EIA STD PACKAGE SIZE 0402, 2 PIN; CategoryAnalog mixed-signal IC filter; File Size430KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

BMB1E0220BN3 Overview

1 FUNCTIONS, 0.3A, FERRITE CHIP, EIA STD PACKAGE SIZE 0402, 2 PIN

BMB1E0220BN3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	EIA STD PACKAGE SIZE 0402, 2 PIN
Reach Compliance Code	unknown
ECCN code	EAR99
shell code	0402
structure	Multilayer Chip
Maximum DC resistance	0.6 Ω
filter type	FERRITE CHIP
maximum frequency	100 MHz
minimum frequency	100 MHz
high	0.5 mm
length	1 mm
Manufacturer's serial number	BMB-B
Material	Ferrite
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output impedance	220 OHM Ω
physical size	L1.0XB0.5XH0.5 (mm)/L0.039XB0.02XH0.02 (inch)
Rated current	0.3 A
series	BMB-B
width	0.5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

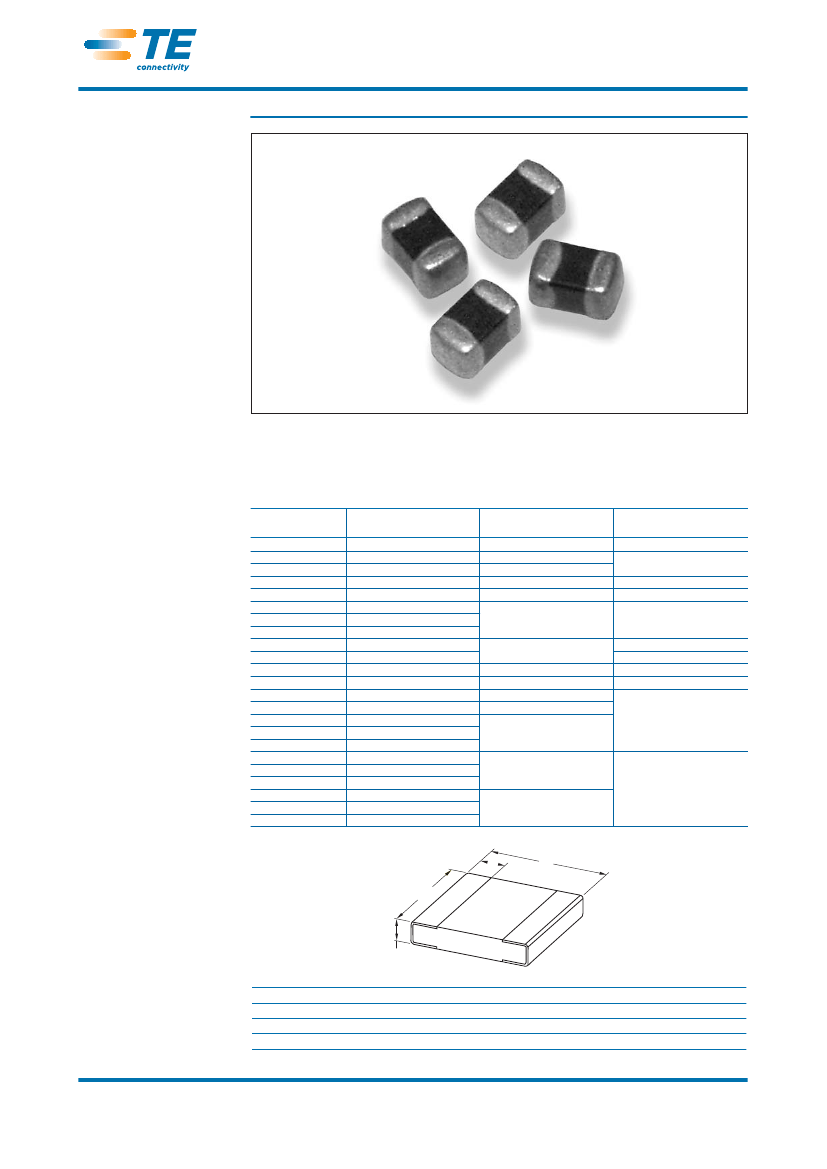

Multilayer Chip Beads

Type BMB-B Series

Key Features

Effective EMI Protection

Wide Frequency

Characteristics

High Soldering Heat

Resistance

Various Package Sizes

Available

Suited to a Variety of

Applications

These beads are designed for high speed applications. The BMB-B Series will minimise

the attenuation of the signal wave form due to its sharp impedance characteristics.

This series is offered in 04:02, 06:03 and 08:05 package sizes.

Specifications

Part Number

BMB1E0120BN3

BMB1E0220BN3

BMB1E0300BN3

BMB1J0030BN3

BMB1J0070BN3

BMB1J0120BN3

BMB1J0240BN3

BMB1J0300BN3

BMB1J0420BN3

BMB1J0600BN3

BMB2A0007BN3

BMB2A0030BN3

BMB2A0070BN3

BMB2A0100BN3

BMB2A0120BN3

BMB2A0200BN3

BMB2A0300BN3

BMB2A0450BN3

BMB2A0600BN3

BMB2A0750BN3

BMB2A1000BN3

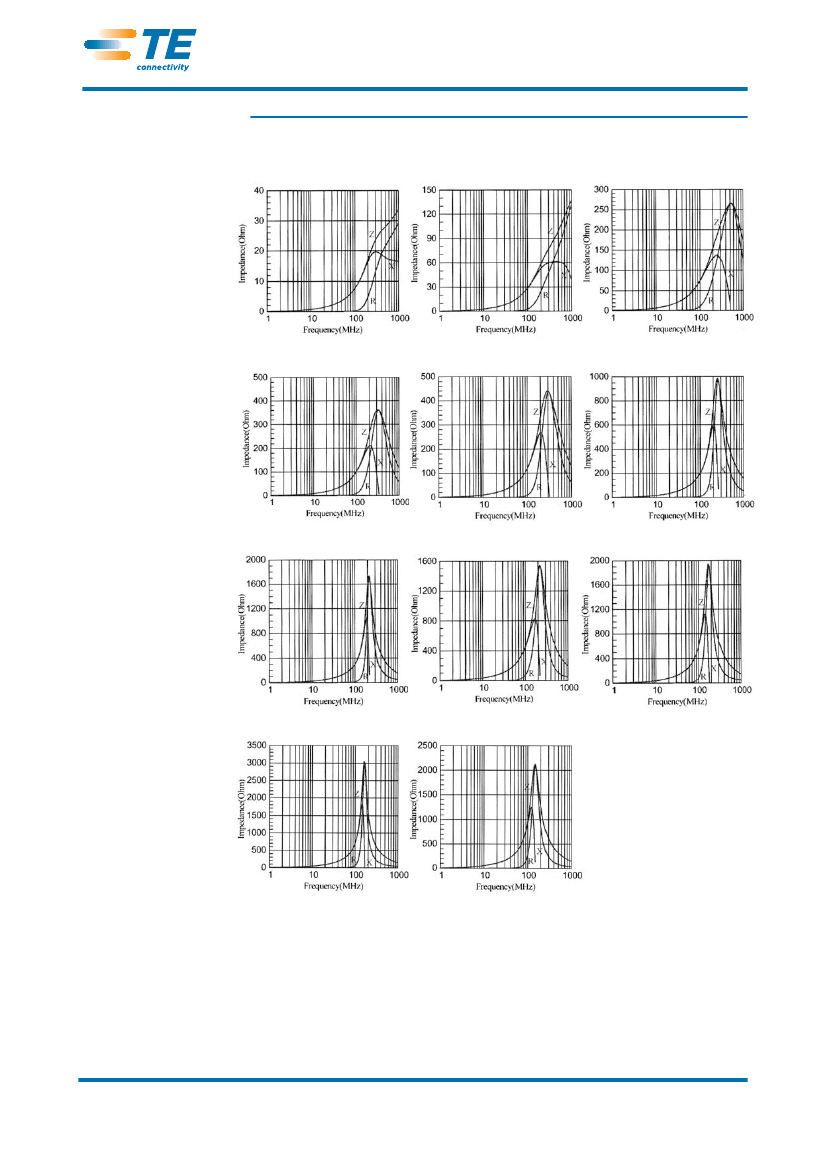

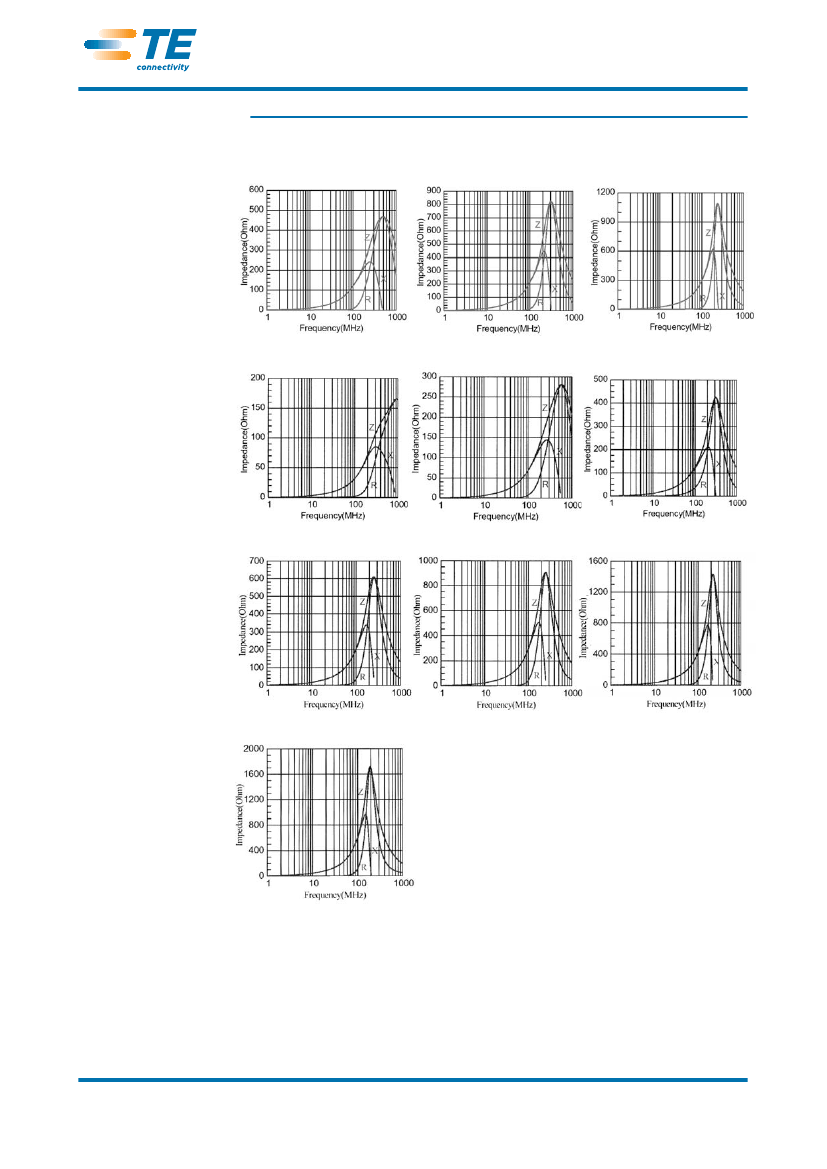

Impedance (ohms)

at 100MHz (±25%)

120

220

300

120

240

300

420

600

100

120

200

300

450

600

750

1000

DC Resistance

(ohms) maximum

0.4

0.6

0.8

0.3

0.4

0.5

0.6

0.1

0.2

300

0.4

Rated Current

(mA) maximum

300

250

200

100

200

100

0.5

0.6

0.7

0.8

200

Chip Dimensions

Size

0402

0603

0805

Code

1.0 ±0.10

1.6 ±0.15

2.0 ±0.20

0.5 ±0.10

0.8 ±0.15

1.2 ±0.20

0.5 ±0.10

0.8 ±0.15

0.9 ±0.20

0.25 ±0.10

0.3 ±0.20

0.5 ±0.30

Operating Temperature Range: -55°C to +125°C

1773179 CIS BI 06/2011

Dimensions are in millimeters

and inches unless otherwise

specified. Values in brackets

are standard equivalents.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

For email, phone or live chat, go to:

te.com/help
