Noise Suppression Products/EMI Suppression Filters > For Automotive > Chip Ferrite Bead for Automotive
Data Sheet
1
For Automotive
Chip Ferrite Bead for Automotive
BLM21A Series (0805 Size)
c

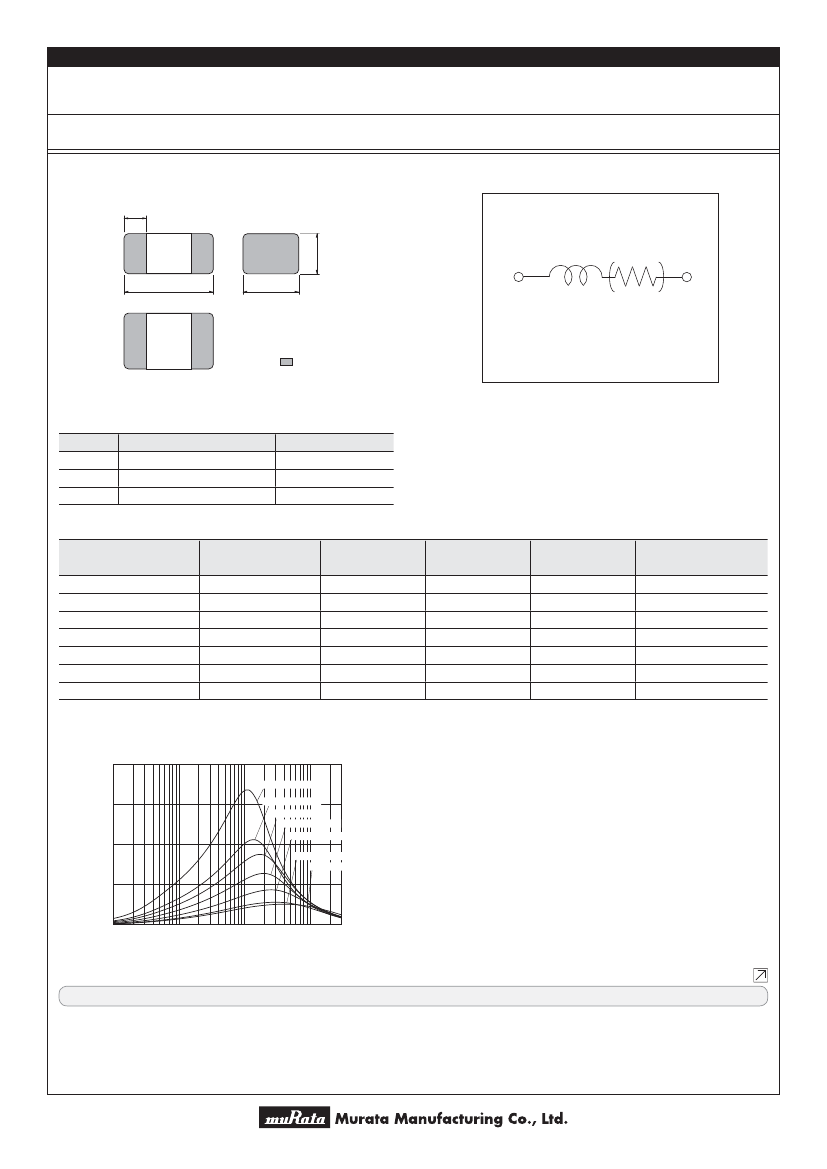

Dimensions
0.5±0.2
c
Equivalent Circuit
2.0±0.2
1.25±0.2
0.85±0.2
(Resistance element becomes dominant
at high frequencies.)
EIA CODE : 0805
: Electrode
(in mm)
c
Packaging
Code
D
J
B
Packaging
180mm Paper Tape
330mm Paper Tape
Bulk(Bag)
Minimum Quantity
4000
10000
1000
c
Rated Value (p: packaging code)
Part Number
BLM21AG121SH1p
BLM21AG151SH1p
BLM21AG221SH1p
BLM21AG331SH1p
BLM21AG471SH1p
BLM21AG601SH1p
BLM21AG102SH1p
Number of Circuits: 1
Impedance
(at 100MHz/20°C)
120ohm ±25%
150ohm ±25%
220ohm ±25%
330ohm ±25%
470ohm ±25%
600ohm ±25%
1000ohm ±25%
Impedance
(at 1GHz/20°C)
-
-
-
-
-
-
-
Rated Current
800mA
800mA
800mA
700mA
700mA
600mA
500mA
DC Resistance
0.1ohm max.
0.1ohm max.
0.13ohm max.
0.16ohm max.
0.19ohm max.
0.21ohm max.
0.28ohm max.
Operating
Temperature Range
-55 to +125°C
-55 to +125°C
-55 to +125°C
-55 to +125°C
-55 to +125°C
-55 to +125°C
-55 to +125°C
c
Impedance-Frequency Characteristics (Main Items)
1200
BLM21AG102SH1
900
Impedance (Ω)
BLM21AG601SH1
BLM21AG471SH1
BLM21AG331SH1
BLM21AG221SH1
600
BLM21AG151SH1
BLM21AG121SH1
300
0
1
10
100
Frequency (MHz)
1000
3000
Continued on the following page.
oThis
data sheet is applied for CHIP FERRITE BEAD used for Automotive Electronics equipment for your design.
!Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2012.1.10
http://www.murata.com/
Noise Suppression Products/EMI Suppression Filters > For Automotive > Chip Ferrite Bead for Automotive
Data Sheet
Continued from the preceding page.
2
c

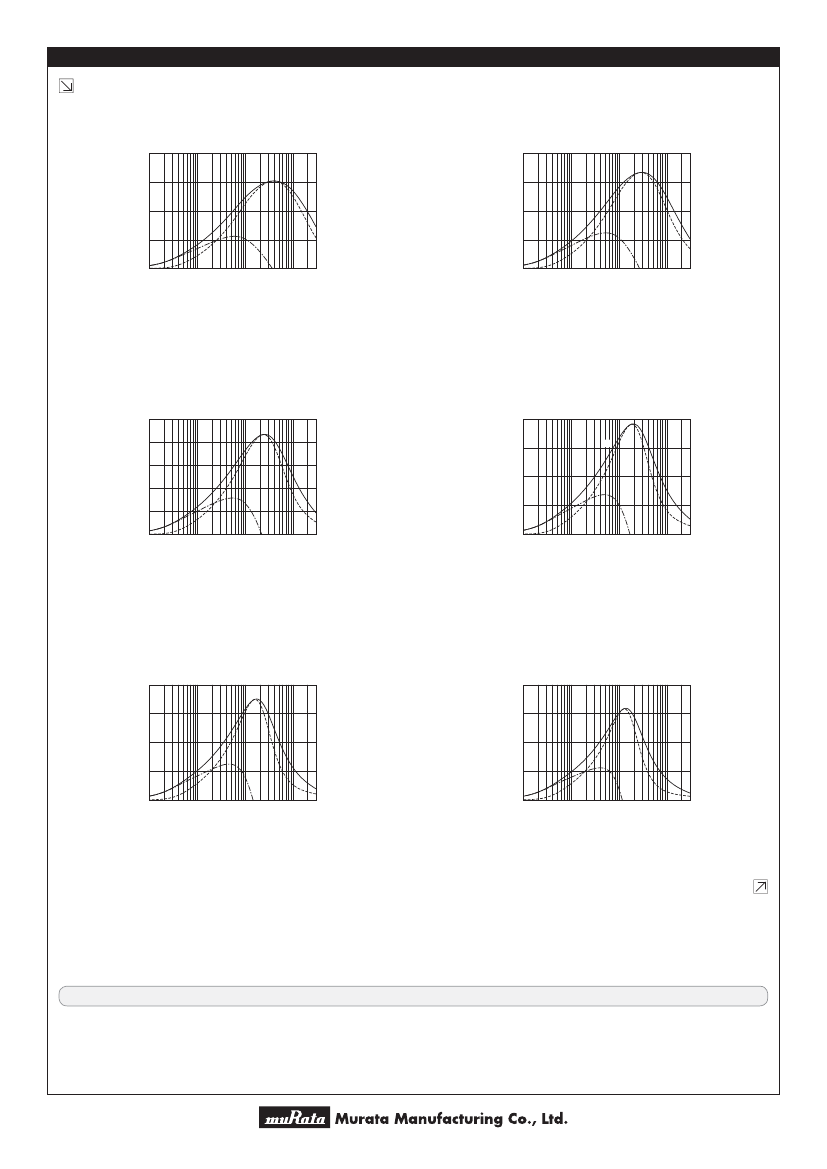

Impedance-Frequency Characteristics
BLM21AG121SH1
200
c
Impedance-Frequency Characteristics
BLM21AG151SH1
200
Z
150
Impedance (Ω)
Impedance (Ω)
Z
R
150
R
100
100
50
X
50
X
0
1
10
100
Frequency (MHz)
1000
3000
0
1
10
100
Frequency (MHz)
1000
3000
c
Impedance-Frequency Characteristics
BLM21AG221SH1
300
240
Impedance (Ω)
180
120
X
60
0
Z
c
Impedance-Frequency Characteristics
BLM21AG331SH1
400
300
R
Impedance (Ω)
Z
R
200
100
X
1
10
100
Frequency (MHz)
1000
3000
0
1
10
100
Frequency (MHz)
1000
3000
c
Impedance-Frequency Characteristics
BLM21AG471SH1
600
Z
c
Impedance-Frequency Characteristics
BLM21AG601SH1
800
Z
450
Impedance (Ω)
Impedance (Ω)
R
600
R
400
300
150
X
200
X
0
1
10
100
Frequency (MHz)
1000
3000
0
1
10
100
Frequency (MHz)
1000
3000
Continued on the following page.
oThis
data sheet is applied for CHIP FERRITE BEAD used for Automotive Electronics equipment for your design.
!Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2012.1.10
http://www.murata.com/
Noise Suppression Products/EMI Suppression Filters > For Automotive > Chip Ferrite Bead for Automotive
Data Sheet
Continued from the preceding page.
3
c
Impedance-Frequency Characteristics
BLM21AG102SH1
1200
Z
900
Impedance (Ω)
600
R
300
X
0
1
10
100
Frequency (MHz)
1000
3000
c !Caution/Notice
!Caution
(Rating)
1. Do not use products beyond the rated current as
this may create excessive heat and deteriorate
the insulation resistance.
2. Be sure to provide an appropriate fail-safe
function on your product to prevent a second damage
that may be caused by the abnormal function or
the failure our product.
Notice
Solderability of Tin plating termination chip might be
deteriorated when low temperature soldering profile
where peak solder temperature is below the Tin melting
point is used. Please confirm the solderability of Tin
plating termination chip before use.
oThis
data sheet is applied for CHIP FERRITE BEAD used for Automotive Electronics equipment for your design.
!Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2012.1.10
http://www.murata.com/
