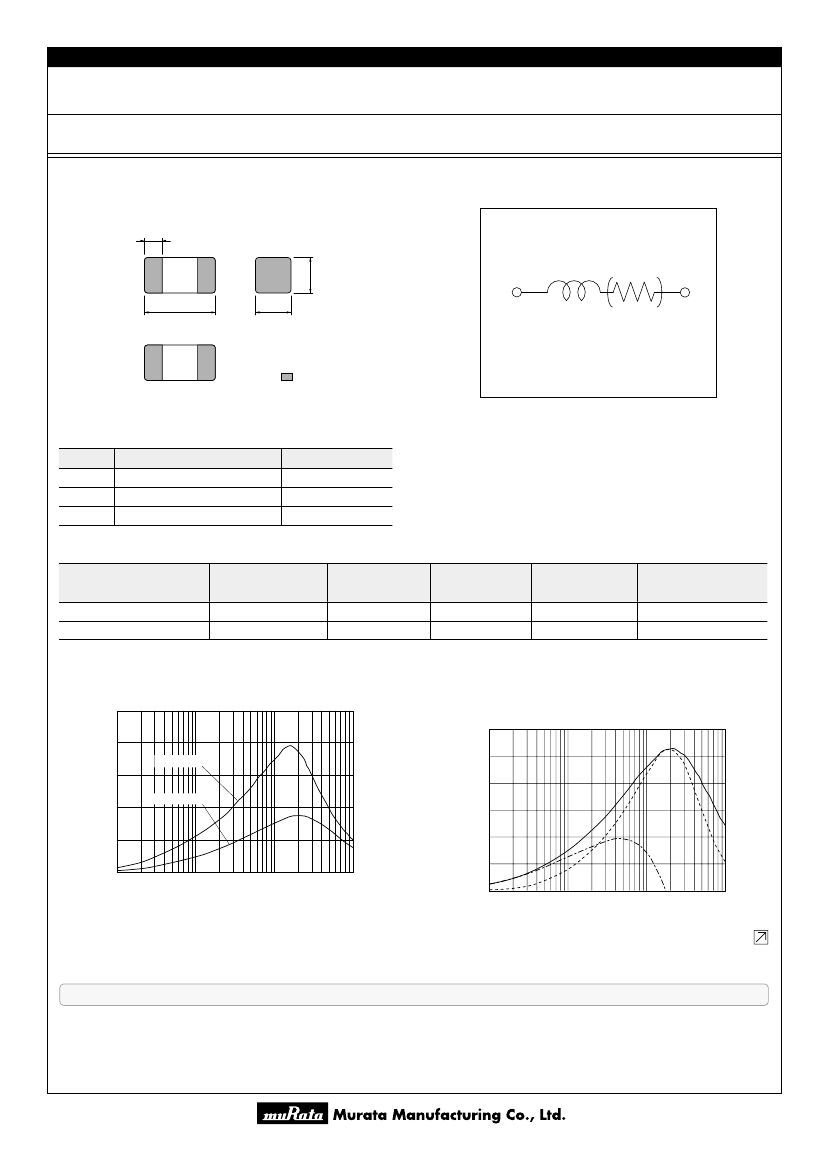

Noise Suppression Products/EMI Suppression Filters > For Automotive > Chip Ferrite Bead for Automotive
Data Sheet
1
For Automotive
I
Dimensions
0.4±0.2
Chip Ferrite Bead for Automotive
BLM18A_WH Series (0603 Size)
I
Equivalent Circuit
1.6±0.15
0.8±0.15
0.8±0.15
(Resistance element becomes dominant
at high frequencies.)
: Electrode
(in mm)
I
Packaging
Code
D
J
B
Packaging
180mm Paper Tape
330mm Paper Tape
Bulk(Bag)
Minimum Quantity
4000
10000
1000
I
For this products
BLM18A_WH series is designed for conductive glue mounting
method,not for normal soldering method. Please contact us for
applicable mounting method for BLM18A_WH series.
I
Rated Value (p: packaging code)
Part Number
BLM18AG471WH1p
BLM18AG102WH1p
Number of Circuits: 1
Impedance
(at 100MHz/20°C)
470ohm
±25%
1000ohm
±25%
Impedance
(at 1GHz/20°C)
-
-
Rated Current
200mA
200mA
DC Resistance
0.20ohm max.
0.70ohm max.
Operating
Temperature Range
-55 to +150°C
-55 to +150°C
I
Impedance-Frequency Characteristics (Main Items)
1500
I
Impedance-Frequency Characteristics
BLM18AG471WH1
600
1200
BLM18AG102WH1
Impedance (Ω)
900
400
BLM18AG471WH1
600
Impedance (Ω)
R
Z
200
X
300
0
1
10
Frequency (MHz)
100
1000
0
1
10
Frequency (MHz)
100
1000
Continued on the following page.
o
This data sheet is applied for CHIP FERRITE BEAD used for Automotive Electronics equipment for your design.
!
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2011.5.12
http://www.murata.com/
Noise Suppression Products/EMI Suppression Filters > For Automotive > Chip Ferrite Bead for Automotive
Data Sheet
Continued from the preceding page.
2
I
Impedance-Frequency Characteristics
BLM18AG102WH1
1500
1200
Impedance (Ω)
900
600
Z
R
300
X
0
1
10
Frequency (MHz)
100
1000
I
!Caution/Notice
!Caution
(Rating)
1. Do not use products beyond the rated current as
this may create excessive heat and deteriorate
the insulation resistance.
2. Be sure to provide an appropriate fail-safe
function on your product to prevent a second damage
that may be caused by the abnormal function or
the failure our product.
Notice
BLM series should be used within 6 months.
Products to be used after this period should
be checked for bondability with glue.
o
This data sheet is applied for CHIP FERRITE BEAD used for Automotive Electronics equipment for your design.
!
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2011.5.12
http://www.murata.com/
