BMB1J0080RS2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> BMB1J0080RS2

BMB1J0080RS2: DescriptionData Line Filter, 1 FUNCTIONS, 0.2 A, FERRITE CHIP, SURFACE MOUNT; CategoryAnalog mixed-signal IC filter; File Size422KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

BMB1J0080RS2 Overview

Data Line Filter, 1 FUNCTIONS, 0.2 A, FERRITE CHIP, SURFACE MOUNT

BMB1J0080RS2 Parametric

Parameter Name	Attribute value
Objectid	2094117404
Reach Compliance Code	unknown
Maximum DC resistance	0.3 Ω
filter type	FERRITE CHIP
high	0.8 mm
length	1.6 mm
Manufacturer's serial number	BMB-R
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output impedance	80 OHM Ω
physical size	L1.6XB0.8XH0.8 (mm)
Rated current	0.2 A
width	0.8 mm

Preview

Download Datasheet

View All

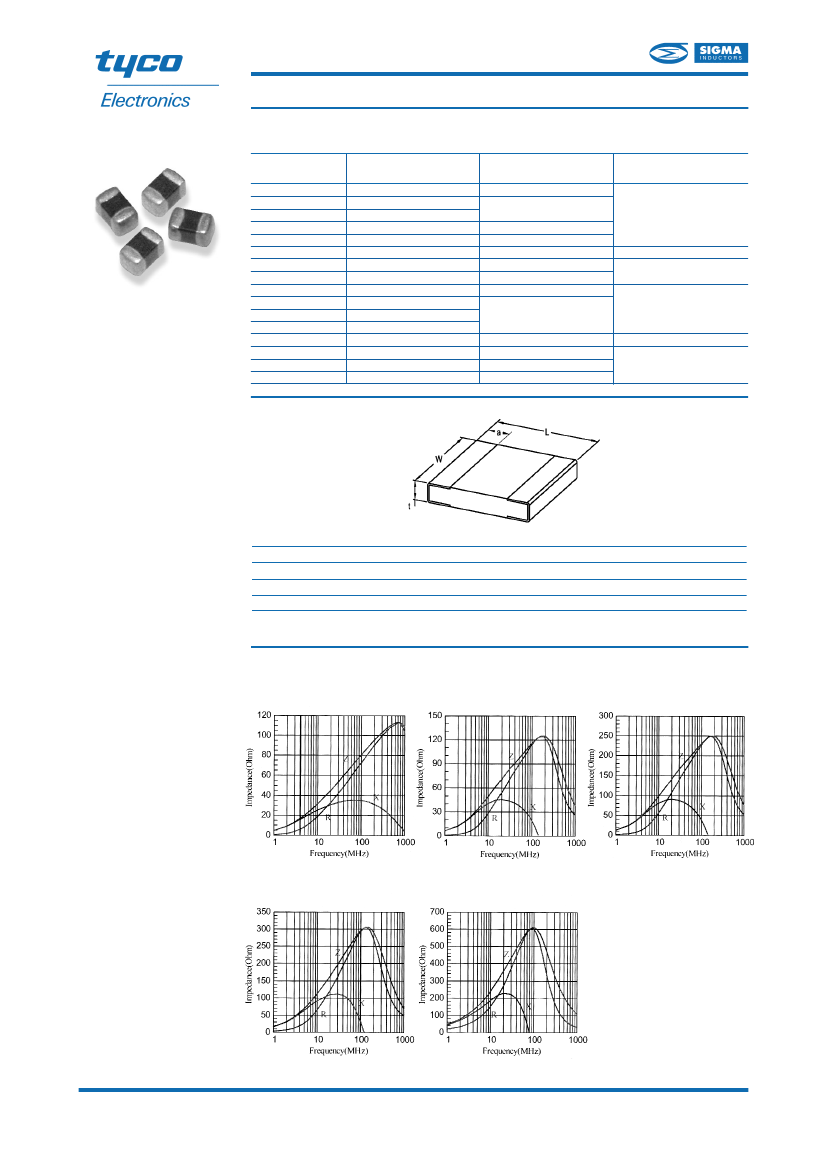

Multilayer Ferrite Beads

Type BMB-R Series

Specifications

Part Number

BMB1J0080RS2

BMB1J0120RS2

BMB1J0240RS2

BMB1J0300RS2

BMB1J0600RS2

BMB2A0080RS2

BMB2A0120RS2

BMB2A0240RS2

BMB2A0300RS2

BMB2A0430RS2

BMB2A0600RS2

BMB2B0026RS2

BMB2B0070RS2

BMB2B0600RS2

Impedance (ohms)

at 100MHz (±25%)

120

240

300

600

120

240

300

430

600

DC Resistance

(ohms) maximum

0.3

0.4

0.5

0.8

0.2

0.3

0.4

0.5

300

200

Rated Current (mA)

maximum

The BMB-R Series has been designed

for low speed applications and specifi-

cally for use in Digital Sound circuitry

and similar to prevent ringing. These

chip devices have been designed to

generate high impedances at low fre-

quencies.

The R series is offered in three sizes:

06:03, 08:05 and 12:06.

200

0.2

0.3

0.9

400

300

200

Chip Dimensions

Key Features

High Impedance at Lower

Frequency

Prevents Signal Ringing

Wide Frequency

Characteristics

Three Package Sizes

Available

Suited to a Variety of

Applications

Size

0603

0805

1206

1.6 ±0.15

2.0 ±0.20

3.2 ±0.20

0.8 ±0.15

1.2 ±0.20

1.6 ±0.20

0.8 ±0.15

0.9 ±0.20

1.1 ±0.20

0.3 ±0.20

0.5 ±0.30

Operating Temperature Range: -55°C to +125°C

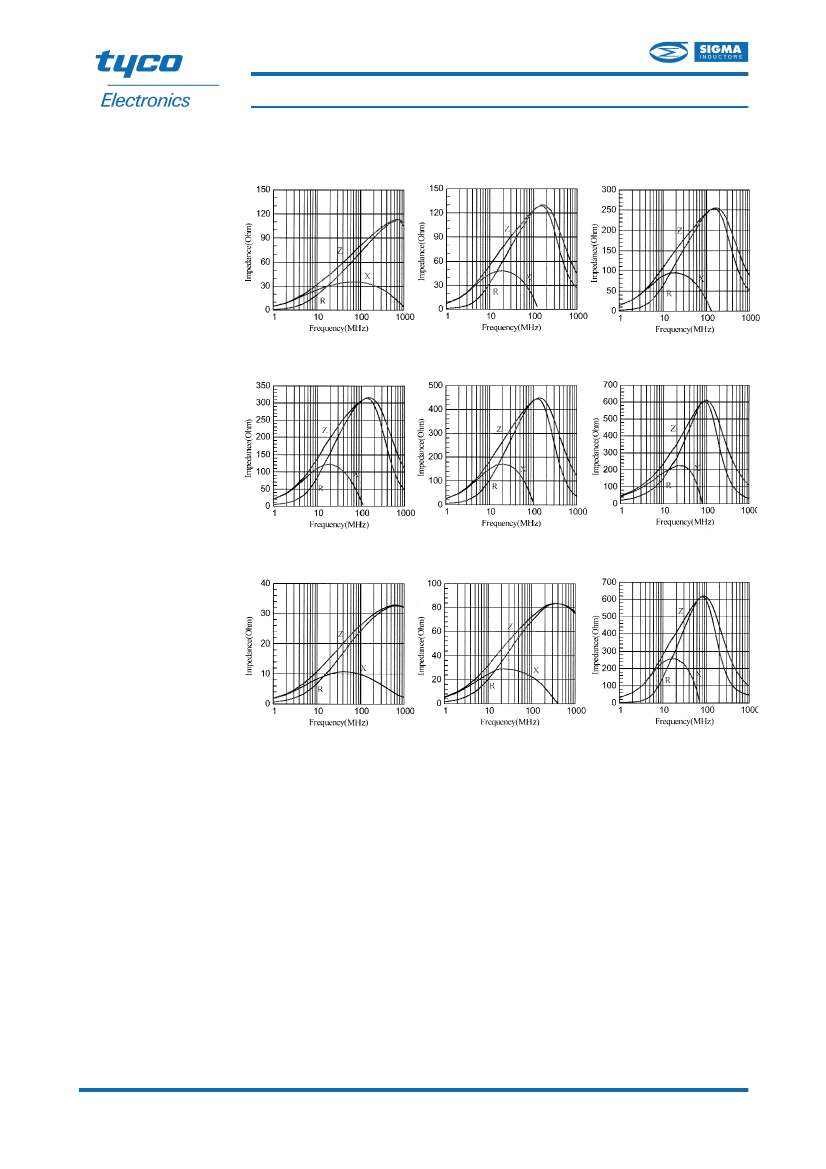

Characteristic Curves

BMB-1J-0080R-S2

BMB-1J-0120R-S2

BMB-1J-0240R-S2

BMB-1J-0300R-S2

BMB-1J-0600R-S2

Literature No. 1773184

Issued: 04-05

Dimensions are shown for

reference purposes only.

Dimensions are in millimetres

unless otherwise specified.

Specifications subject to

change.

www.tycoelectronics.com

passives.tycoelectronics.com

BMB1J0080RS2 Related Products

	BMB1J0080RS2	BMB2B0600RS2	BMB1J0300RS2	BMB2A0080RS2	BMB2A0240RS2	108SVH050MKQ	BMB2B0026RS2	BMB2B0070RS2
Description	Data Line Filter, 1 FUNCTIONS, 0.2 A, FERRITE CHIP, SURFACE MOUNT	1 FUNCTIONS, 0.2A, FERRITE CHIP	Data Line Filter, 1 FUNCTIONS, 0.2 A, FERRITE CHIP, SURFACE MOUNT	Data Line Filter, 1 FUNCTIONS, 0.3 A, FERRITE CHIP, SURFACE MOUNT	Data Line Filter, 1 FUNCTIONS, 0.2 A, FERRITE CHIP, SURFACE MOUNT	Small size – Extended Life – Low cost	1 FUNCTIONS, 0.4A, FERRITE CHIP	1 FUNCTIONS, 0.3A, FERRITE CHIP
Objectid	2094117404	-	2094117424	2094117450	2094117464	-	2094117493	2094117502
Reach Compliance Code	unknown	compliant	unknown	unknown	unknown	-	unknown	unknown
Maximum DC resistance	0.3 Ω	0.9 Ω	0.5 Ω	0.2 Ω	0.4 Ω	-	0.2 Ω	0.3 Ω
filter type	FERRITE CHIP	FERRITE CHIP	FERRITE CHIP	FERRITE CHIP	FERRITE CHIP	-	FERRITE CHIP	FERRITE CHIP
high	0.8 mm	1.1 mm	0.8 mm	0.9 mm	0.9 mm	-	1.1 mm	1.1 mm
length	1.6 mm	3.2 mm	1.6 mm	2 mm	2 mm	-	3.2 mm	3.2 mm
Installation type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1	-	1	1
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	-	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-	-55 °C	-55 °C
Output impedance	80 OHM Ω	600 OHM Ω	300 OHM Ω	80 OHM Ω	240 OHM Ω	-	26 OHM Ω	70 OHM Ω
physical size	L1.6XB0.8XH0.8 (mm)	L3.2XB1.6XH1.1 (mm)	L1.6XB0.8XH0.8 (mm)	L2XB1.2XH0.9 (mm)	L2XB1.2XH0.9 (mm)	-	-	-
Rated current	0.2 A	0.2 A	0.2 A	0.3 A	0.2 A	-	0.4 A	0.3 A
width	0.8 mm	1.6 mm	0.8 mm	1.2 mm	1.2 mm	-	1.6 mm	1.6 mm
