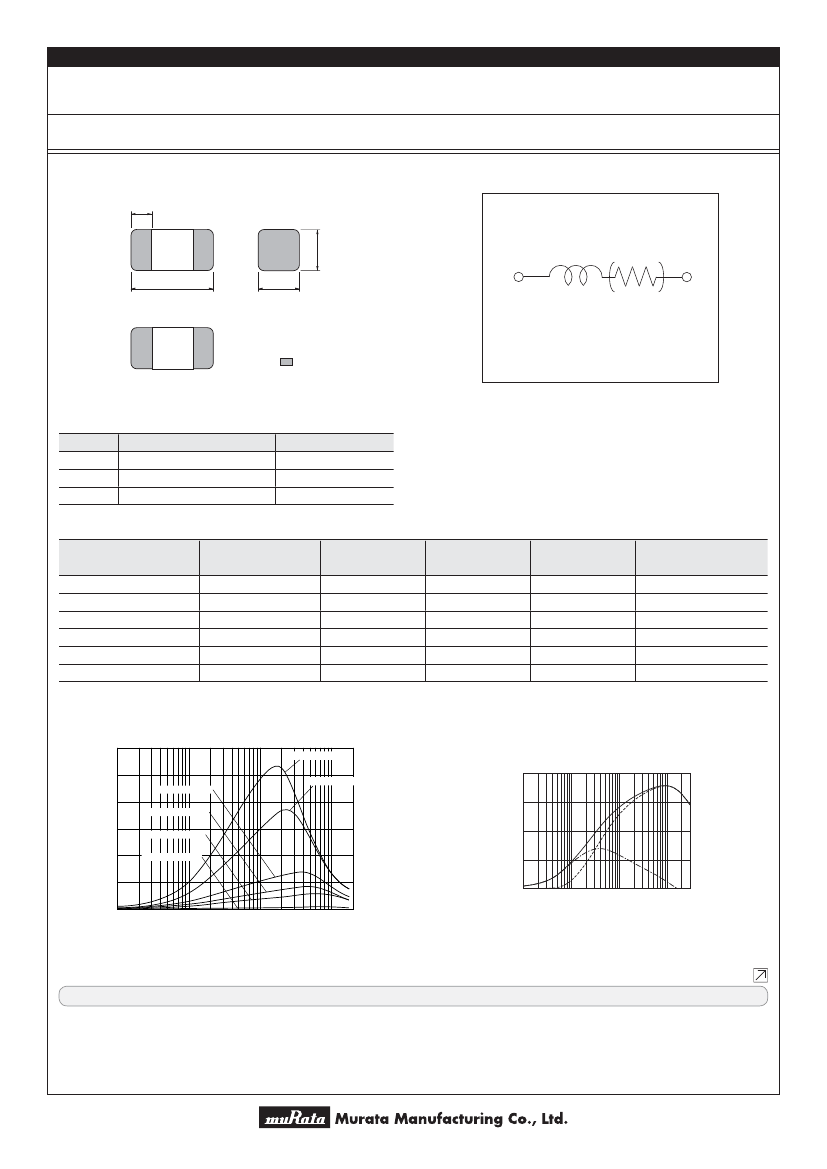

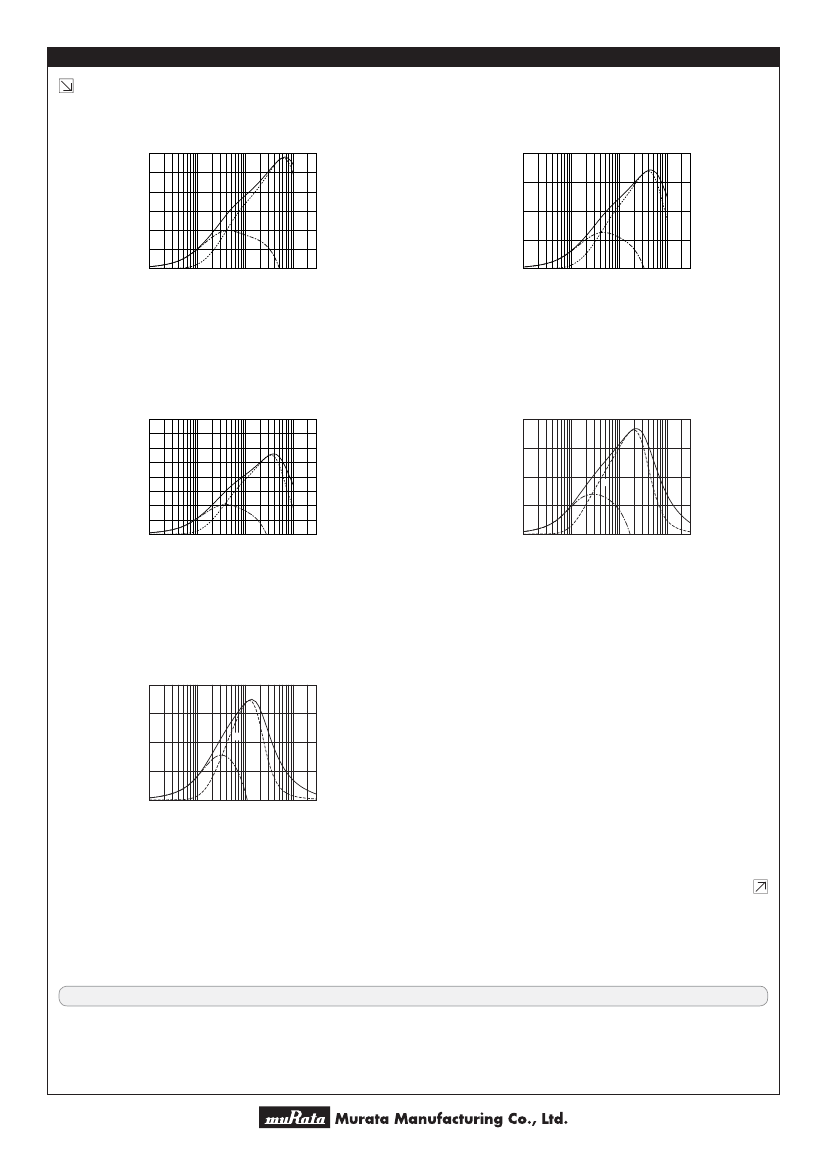

Noise Suppression Products/EMI Suppression Filters > For Automotive > Chip Ferrite Bead for Automotive
Data Sheet
1
For Automotive
Chip Ferrite Bead for Automotive
BLM15A_SH Series (0402 Size)
c
Dimensions
0.25±0.1
c
Equivalent Circuit
1.0±0.05
0.5±0.05
0.5±0.05
(Resistance element becomes dominant
at high frequencies.)
: Electrode
(in mm)
c
Packaging
Code
D
J
B
Packaging
180mm Paper Tape
330mm Paper Tape
Bulk(Bag)
Minimum Quantity
10000
50000
1000
c
Rated Value (p: packaging code)
Part Number
BLM15AG100SH1p
BLM15AG700SH1p
BLM15AG121SH1p
BLM15AG221SH1p
BLM15AG601SH1p
BLM15AG102SH1p
Number of Circuits: 1
Impedance
(at 100MHz/20°C)
10ohm (Typ.)
70ohm (Typ.)
120ohm ±25%
220ohm ±25%
600ohm ±25%
1000ohm ±25%
Impedance
(at 1GHz/20°C)
-
-
-
-
-
-
Rated Current
1000mA
500mA
500mA
300mA
300mA
200mA
DC Resistance
0.05ohm max.
0.15ohm max.
0.25ohm max.
0.35ohm max.
0.6ohm max.
1.0ohm max.
Operating
Temperature Range
-55 to +125°C
-55 to +125°C
-55 to +125°C
-55 to +125°C
-55 to +125°C
-55 to +125°C
c
Impedance-Frequency Characteristics (Main Items)
1200
BLM15AG102SH1
1000
BLM15AG601SH1
BLM15AG221SH1
800
Impedance (Ω)
BLM15AG121SH1
600
BLM15AG700SH1
BLM15AG100SH1
c
Impedance-Frequency Characteristics
BLM15AG100SH1
16
Z
R
8
X
12
Impedance (Ω)
400
4
200
0
0
1
10
100
Frequency (MHz)
1000 2000
1
10
100
Frequency (MHz)
1000
3000
Continued on the following page.
oThis
data sheet is applied for CHIP FERRITE BEAD used for Automotive Electronics equipment for your design.
!Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our products in it
may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2013.7.8
http://www.murata.com/
Noise Suppression Products/EMI Suppression Filters > For Automotive > Chip Ferrite Bead for Automotive
Data Sheet
Continued from the preceding page.
2
c
Impedance-Frequency Characteristics
BLM15AG700SH1
120
100
Z
Impedance (Ω)
80
60
40
20
0
X
R
c
Impedance-Frequency Characteristics
BLM15AG121SH1
200
150
Impedance (Ω)
Z
R
100
50
X
0
1
10
100
Frequency (MHz)
1000
3000
1
10
100
Frequency (MHz)
1000
3000
c
Impedance-Frequency Characteristics
BLM15AG221SH1
400
c
Impedance-Frequency Characteristics
BLM15AG601SH1
800
300
Impedance (Ω)
Z
200
R
Impedance (Ω)
600
Z
400
R
100
X
200
X
0
0
1
10
100
Frequency (MHz)
1000
3000
1
10
100
Frequency (MHz)
1000
3000
c
Impedance-Frequency Characteristics
BLM15AG102SH1
1200
900
Impedance (Ω)
Z
600
R
300
X
0
1
10
100
Frequency (MHz)
1000
3000
Continued on the following page.
oThis
data sheet is applied for CHIP FERRITE BEAD used for Automotive Electronics equipment for your design.
!Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our products in it
may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2013.7.8
http://www.murata.com/
Noise Suppression Products/EMI Suppression Filters > For Automotive > Chip Ferrite Bead for Automotive
Data Sheet
Continued from the preceding page.
3
c !Caution/Notice
!Caution
(Rating)
1. Do not use products beyond the rated current as
this may create excessive heat and deteriorate
the insulation resistance.
2. Be sure to provide an appropriate fail-safe
function on your product to prevent a second damage
that may be caused by the abnormal function or
the failure our product.
Notice
Solderability of Tin plating termination chip might be
deteriorated when low temperature soldering profile
where peak solder temperature is below the Tin melting
point is used. Please confirm the solderability of Tin
plating termination chip before use.
oThis
data sheet is applied for CHIP FERRITE BEAD used for Automotive Electronics equipment for your design.
!Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our products in it
may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
