Multilayer Ferrite Beads
Type BMB-R Series
Key Features
I
I
I
I
High Impedance at
Lower Frequency
Prevents Signal Ringing
Wide Frequency
Characteristics
Suited to a Variety of
Applications

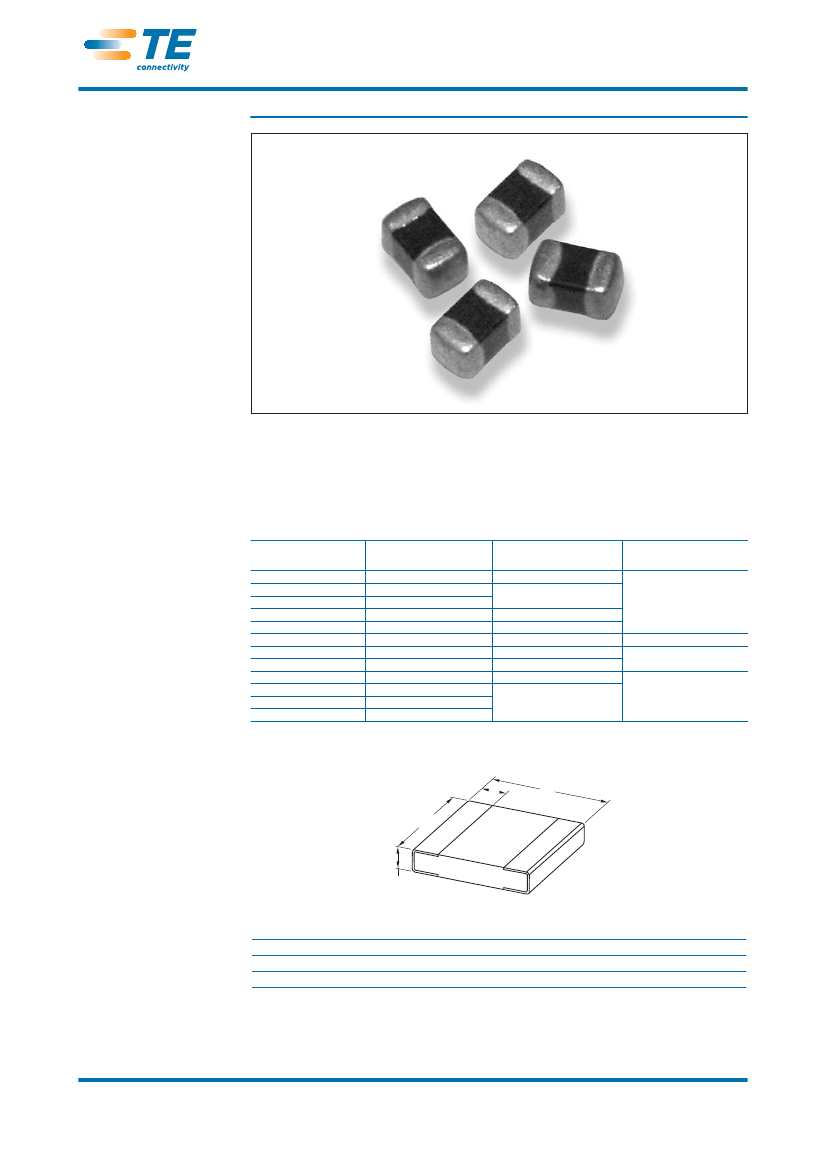

The BMB R Series has been designed for low speed applications and specifically for use
in Digital Sound circuitry and similar to prevent ringing. These chip devices have been
designed to generate high impedances at low frequencies.
The R series is offered in two sizes 06:03 and 08:05
Specifications
Part Number
BMB-1J-0080R-S2
BMB-1J-0120R-S2
BMB-1J-0240R-S2
BMB-1J-0300R-S2
BMB-1J-0600R-S2
BMB-2A-0080R-S2
BMB-2A-0120R-S2
BMB-2A-0240R-S2
BMB-2A-0300R-S2
BMB-2A-0430R-S2
BMB-2A-0600R-S2
Impedance (ohms)
at 100MHz (±25%)
80
120
240
300
600
80
120
240
300
430
600
DC Resistance
(ohms) maximum
0.3
0.4
0.5
0.8
0.2
0.3
0.4
0.5
300
200
Rated Current (mA)
maximum
200
Chip Dimensions
a
L
W
t
Size
0603
0805
L
1.6 ±0.15
2.0 ±0.20
W
0.8 ±0.15
1.2 ±0.20
t
0.8 ±0.15
0.9 ±0.20
a
0.3 ±0.20
0.5 ±0.30
Operating Temperature Range: -55°C to +125°C
1773184 CIS BI 06/2011
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
For email, phone or live chat, go to:
te.com/help
Multilayer Ferrite Beads
Type BMB-R Series

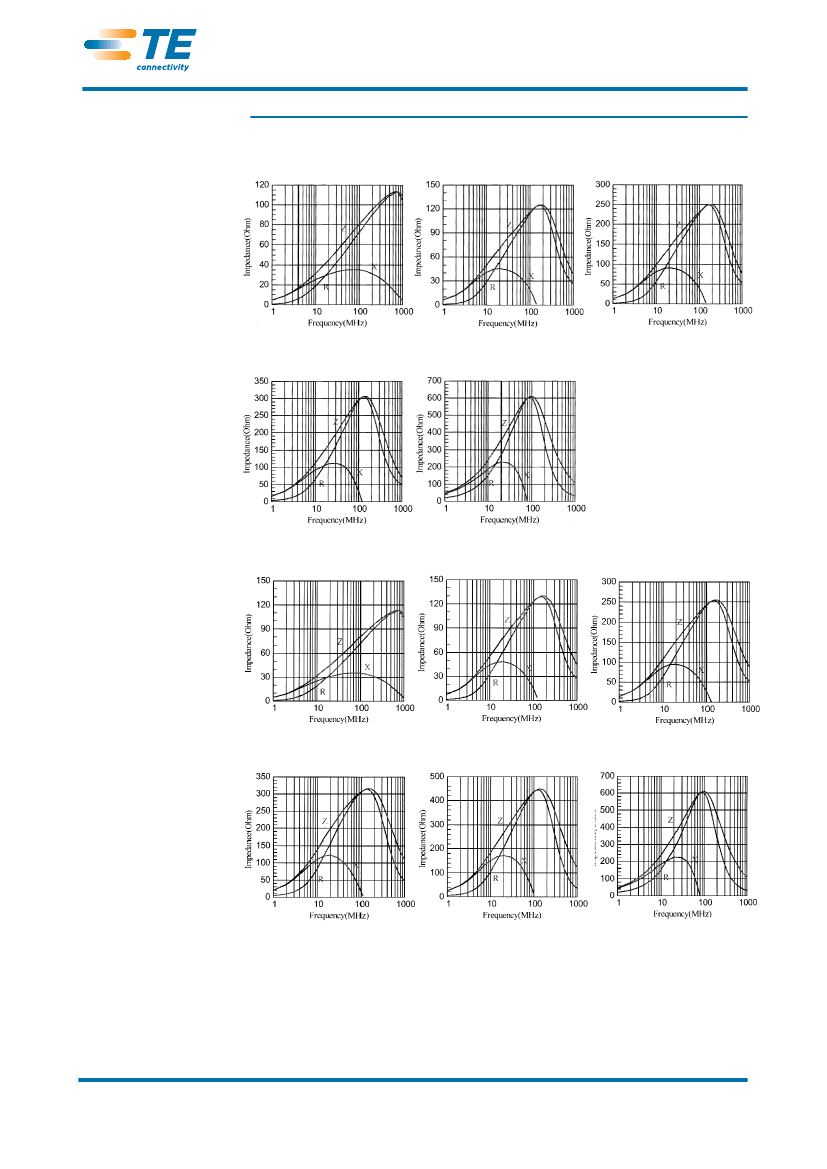

Characteristic Curves
BMB-1J-0080R-S2
BMB-1J-0120R-S2
BMB-1J-0240R-S2
BMB-1J-0300R-S2
BMB-1J-0600R-S2
BMB-2A-0080R-S2
BMB-2A-0120R-S2
BMB-2A-0240R-S2
BMB-2A-0300R-S2
BMB-2A-0430R-S2
BMB-2A-0600R-S2
