EMC filters
2-line filters
SIFI-H for very high insertion loss
Series/Type:
Date:
B84113H
May 2014
© EPCOS AG 2015. Reproduction, publication and dissemination of this publication, enclosures hereto and the
information contained therein without EPCOS' prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
2-line filters
SIFI-H for very high insertion loss
B84113H
Power line filters for 1-phase systems
Rated voltage V
R
: 250 V AC/DC
Rated current I
R
: 3 A to 36 A
Construction
2-line filters
Metal case
Polyurethane potting (UL 94 V-0)
Versions
Standard version (B84113H0000B*/G*)
For applications with low leakage current
(B84113H0000M*)
Features
Easy to install
Compact design
Cost optimized construction
ENEC, UL and cUL approval
Typical applications
Switch-mode power supplies
Industrial electronics
Telecom systems
Data systems
DC applications
Medical equipment (version B84113H0000M*)
Terminals
3 A ... 16 A: Tab connectors
20 A ... 36 A: Threaded studs
Marking
Marking on component:
Manufacturer's logo, ordering code, rated voltage, rated
current, rated temperature, climatic category, date code,
approvals
Minimum data on packaging:
Manufacturer's logo, ordering code, quantity, date code
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 14
2-line filters
SIFI-H for very high insertion loss
B84113H
Typical circuit diagram (standard version)
Typical circuit diagram (medical version)
Technical data and measuring conditions
Rated voltage V
R
Rated current I
R
Test voltage V
test
250 V AC (50/60 Hz) / 250 V DC
Referred to 40
°C
rated temperature
1770 V DC, 2 s (line/line)
Standard version: 2700 V DC, 2 s (lines/case)
Medical version: 2500 V AC (lines/case)
At V
R
and 50 Hz
25/100/21 ( 25
°C/+100 °C/21
days damp heat test)
IEC 60939, UL 1283, CSA C22.2 No.8
Leakage current l
LK
Climatic category (IEC 60068-1)
Approvals
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 14
2-line filters
SIFI-H for very high insertion loss
B84113H
Characteristics and ordering codes
I
R
A
C
R
X2
µF
C
R
Y2
pF
L
R
mH
4
×
5.9
4
×
5.9
4
×
3.6
4
×
3.6
4
×
3.9
4
×
3.9
4
×
1.3
4
×
1.3
4
×
1.2
4
×
1.2
4
×
0.8
4
×
0.8
4
×
0.5
4
×
0.5
I
LK
mA
0.369
0
0.369
0
0.369
0
0.369
0
1.73
0
1.73
0
1.73
0
Approx. Ordering code
weight
g
250
250
260
260
420
420
440
440
860
860
870
870
870
870
B84113H0000B030
B84113H0000M030
B84113H0000B060
B84113H0000M060
B84113H0000B110
B84113H0000M110
B84113H0000B116
B84113H0000M116
B84113H0000G120
B84113H0000M120
B84113H0000G125
B84113H0000M125
B84113H0000G136
B84113H0000M136
Approvals
V
R
= 250 V AC/DC
3
2
×
1.0
2
×
4700
3
2
×
1.0
6
2
×
1.0
2
×
4700
6
2
×
1.0
10
2
×
1.5
2
×
4700
10
2
×
1.5
16
2
×
1.5
2
×
4700
16
2
×
1.5
20
2
×
2.2
2
×
22000
20
2
×
2.2
25
2
×
2.2
2
×
22000
25
2
×
2.2
36
2
×
3.3
2
×
22000
36
2
×
3.3
×
= Approval granted
Dimensional drawings
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
B84113H0000*030, B84113H0000*060 (3 A, 6 A)
General tolerances according to ISO 2768 cL
Dimensions in mm
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 14
2-line filters
SIFI-H for very high insertion loss
B84113H
B84113H0000*110, B84113H0000*116 (10 A, 16 A)
General tolerances according to ISO 2768 cL
Dimensions in mm

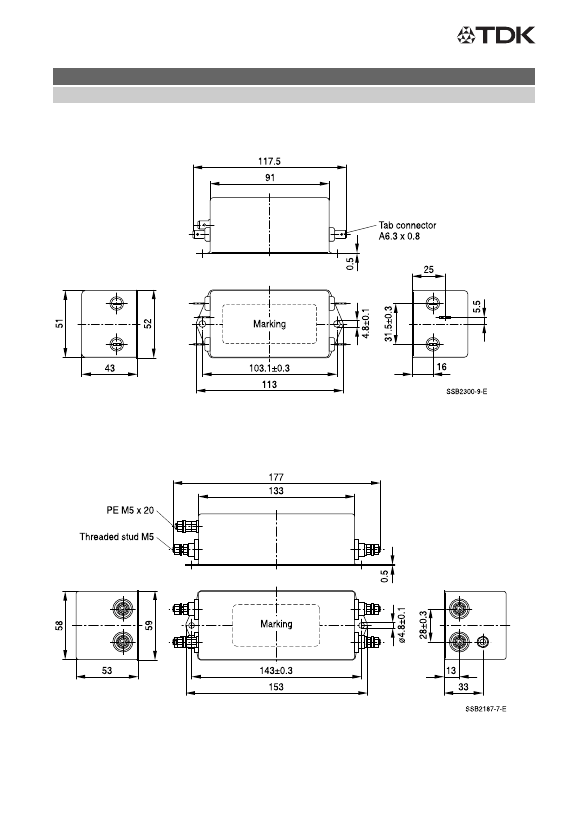

B84113H0000*120 ... B84113H0000*136 (20 A ... 36 A)
General tolerances according to ISO 2768 cL
Dimensions in mm
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 5 of 14
