B84299D2320B003 datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> filter> B84299D2320B003

B84299D2320B003: Description250V, 50/60Hz, SINGLE PHASE EMI FILTER; CategoryAnalog mixed-signal IC filter; File Size131KB，11 Pages; ManufacturerEPCOS (TDK); Environmental Compliance

Download Datasheet Parametric View All

B84299D2320B003 Overview

250V, 50/60Hz, SINGLE PHASE EMI FILTER

B84299D2320B003 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Certification	VDE; EN
filter type	SINGLE PHASE EMI FILTER
high	106 mm
high potential	1200 V
length	850 mm
Installation type	PANEL MOUNT
working frequency	50/60Hz Hz
Maximum operating temperature	40 °C
Minimum operating temperature	-25 °C
physical size	L850.0XB174.0XH106.0 (mm)/L33.465XB6.85XH4.173 (inch)
Rated current	32 A
Rated voltage	250 V
width	174 mm
Base Number Matches	1

Preview

Download Datasheet

View All

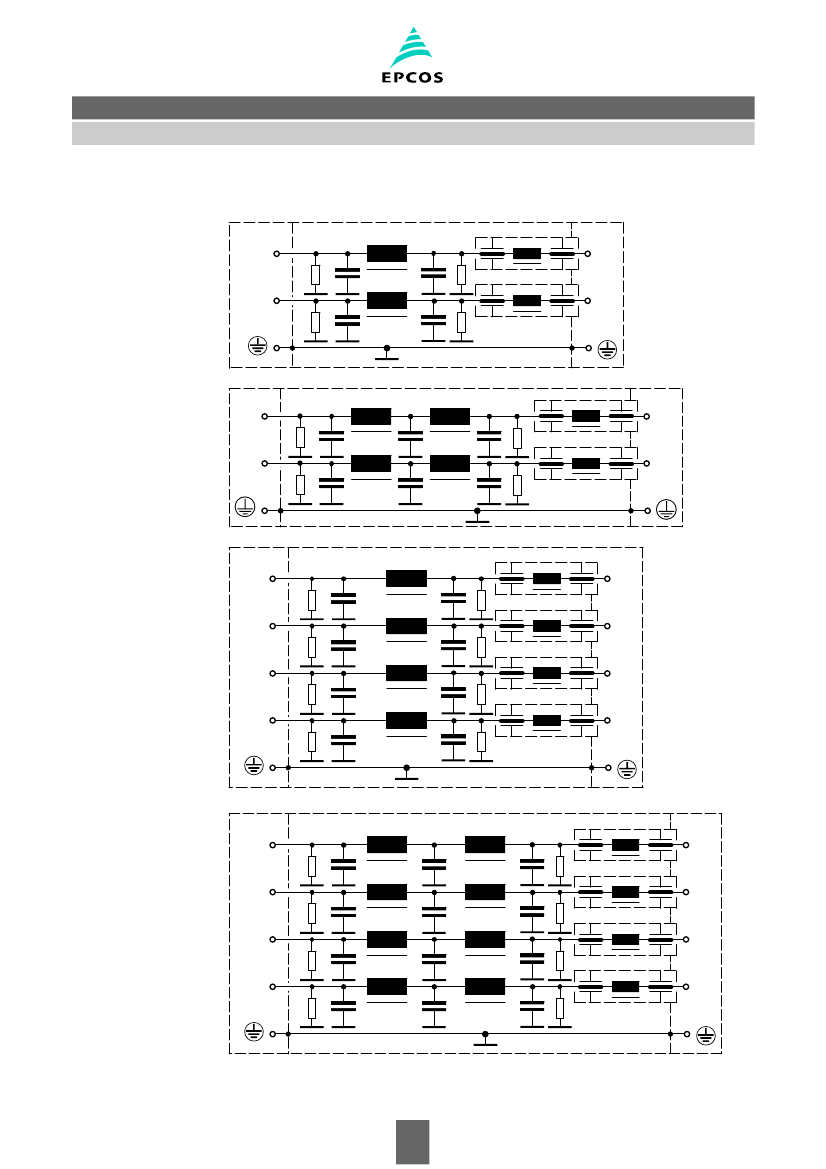

Filter for power lines

16 A and 32 A

B84299C2...

B84299D2...

General

The filter are outstanding for their big field of applications, because the filters are designed with single

lines without coupling effects. By using of single chokes instead of current compensated chokes the

insertion loss values will not be reduced at all operating current conditions, also at operating of artificial

mains network (AMN) or other equipment with high leakage currents.

Design

The electric components are enclosed in a RF–tight stainless steel housing. Screw–type conduit fittings

are used for the cable entry. The RF–tight covering of the opening for the connections is obtained by

means of specially formed covers. Neutral conductor and conductor are connected via threaded bolts.

The space around the fixing holes is left unpainted in order to ensure good RF contacting to metal areas

(ground).

Protective measures

Due to the high capacitances between conductors and safety conductor, protective measures in

accordance with VDE 0100 and VDE 0875 (additional ground connection) are necessary if the relevant

VDE specifications do not include adequate measures.

In order to discharging of the capacitors after turning off, resistors are incorporated into the filter.

General technical data

Rated Voltage U

Rated frequency f

Rated current I

Test voltage

DC resistance R

Power dissipation P

Voltage drop / line

Cap. current / line I

Max. allowed harmonic dist. (THD)

Permissible ambient temperature

Approx. weight

Mechanical version

440/250 V

50 / 60 Hz

see page 2

1200 V dc, 2 sec.

see page 2

< 1%

see page 2

–25 to +40°C

see page 2

with cable glands at both sides

or connection by flexible tube

for connecting directly at

the mounting wall

refered to +40°C

ambient temperature

Line / Line

Line / Ground

each line

at rated current

of rated voltage 440 / 250 V

at 230V / 50Hz

according to EN 50160

Line / Line

Line / Ground

The information describes the type of filter and shall not be

considered as assured characteristics. terms of delivery and

rights to change design resered.

B84299–C2xxx–....–2–7659

31–July–2003

11 pages
