SAW Components
SAW RF filter
GPS
Series/type:
Ordering code:
Date:
Version:
B4300
B39162B4300F210
August 25, 2011
2.1
©
EPCOS AG 2011. Reproduction, publication and dissemination of this data sheet, enclosures
hereto and the information contained therein without EPCOS’ prior express consent is prohibited.
SAW Components
SAW RF filter
Data sheet
Application
s
Low-loss RF filter for GPS application
s
No matching network required for operation at 50
Ω
s
Additional passband characteristics for Galileo
B4300
1575.42 MHz
Package size 1.4 x 1.1 x 0.4
Package code QCS5P
RoHS compatible
Approximate weight 0.003 g
Package for
Surface Mount Technology
(SMT)
s
Ni, gold-plated terminals
s
AEC-Q200 qualified component family (operable
temperature range –40˚C to +85˚C)
s
Electrostatic Sensitive Device
(ESD)
s
s
s
s
s

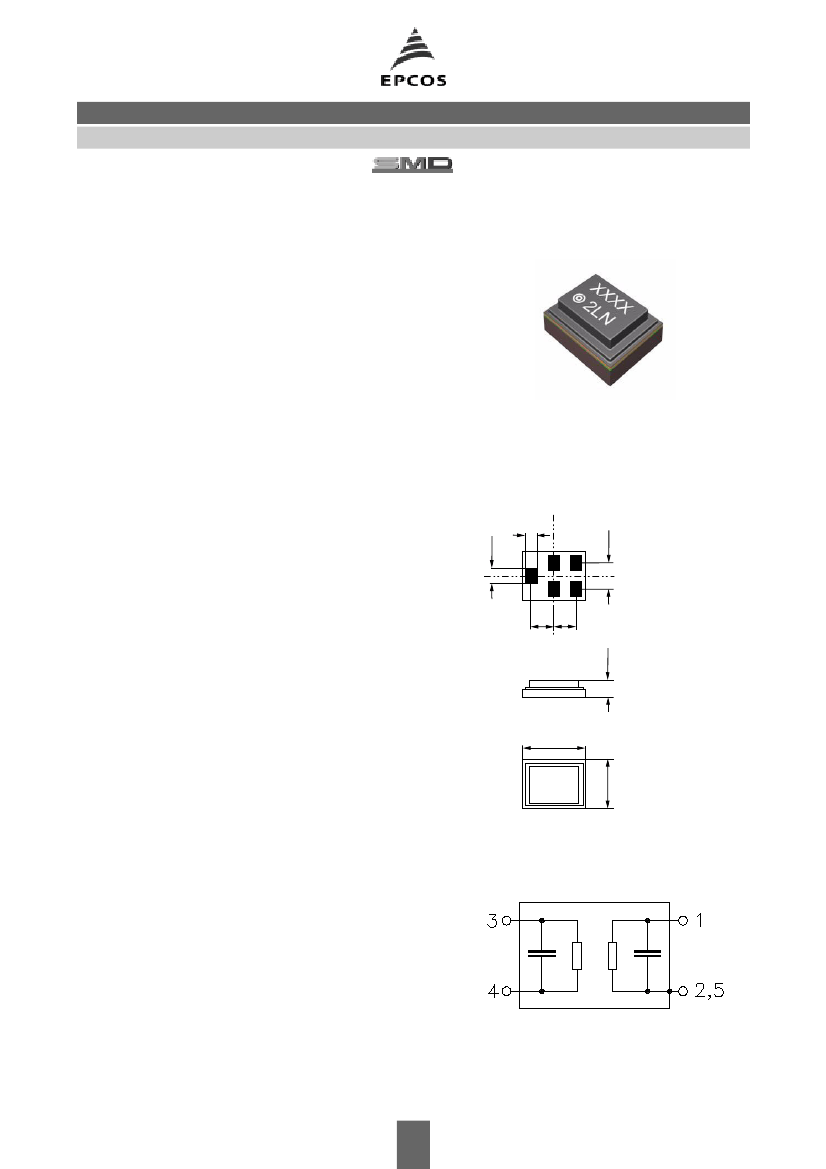

mm
3
0.325
2 3
1
0.575
Features
0.25
bottom view
5
0.5 0.5
0.4
4
side view
1.4
1.1
top view
Pin configuration
s
1
s
4
s
2,3,5
Input
Output
to be grounded
Please read
cautions and warnings and
important notes
at the end of this document.
2
August 25, 2011
SAW Components
SAW RF filter
Data sheet
Characteristics
Temperature range for specification:
Terminating source impedance:
Terminating load impedance:
T = –40 ˚C to +85 ˚C
50
Ω
Z
S
=
Z
L
=
50
Ω
min.
Center frequency
f
C
—
typ.
@ 25 ˚C
1575.42
max.
—
B4300
1575.42 MHz
MHz
Maximum insertion attenuation
α
max
1573.92 ... 1576.92 MHz
Amplitude ripple
(p-p)
∆α
1573.92 ... 1576.92 MHz
VSWR
1573.92 ... 1576.92 MHz
Attenuation
1.00
810.00
1453.00
1625.00
1710.00
1749.00
1785.00
1920.00
2200.00
2450.00
2700.00
...
...
...
...
...
...
...
...
...
...
...
810.00
1453.00
1525.00
1710.00
1749.00
1785.00
1920.00
2200.00
2450.00
2700.00
4000.00
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
α
—
1.0
1.3
dB
—
0.1
0.6
dB
—
1.3
1.7
41
40
37
40
43
44
43
41
35
40
30
45
45
44
50
50
50
50
52
40
50
35
—
—
—
—
—
—
—
—
—
—
—
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
Please read
cautions and warnings and
important notes
at the end of this document.
3
August 25, 2011
SAW Components
SAW RF filter
Data sheet
Additional Passband Characteristics for Galileo
Temperature range for specification:
Terminating source impedance:
Terminating load impedance:
T = –40 ˚C to +85 ˚C
50
Ω
Z
S
=
Z
L
=
50
Ω
min.
Center frequency
Maximum insertion attenuation
1572.42 ... 1578.42 MHz
f
C
α
max
—
1.2
1.8
—
typ.
@ 25 ˚C
1575.42
max.
—
B4300
1575.42 MHz
MHz
dB
Amplitude ripple
(p-p)
∆α
1572.42 ... 1578.42 MHz
VSWR
1572.42 ... 1578.42 MHz
—
0.4
1.0
dB
—
1.5
1.9
Maximum ratings
Operable temperature range T
Storage temperature range T
stg
DC voltage
V
DC
Source power
P
S
–40/+85
–40/+85
0
10
20
˚C
˚C
V
dBm
dBm
source impedance 50
Ω
824 MHz to 915 MHz,
1710 MHz to1785 MHz
Please read
cautions and warnings and
important notes
at the end of this document.
4
August 25, 2011
SAW Components
SAW RF filter
Data sheet

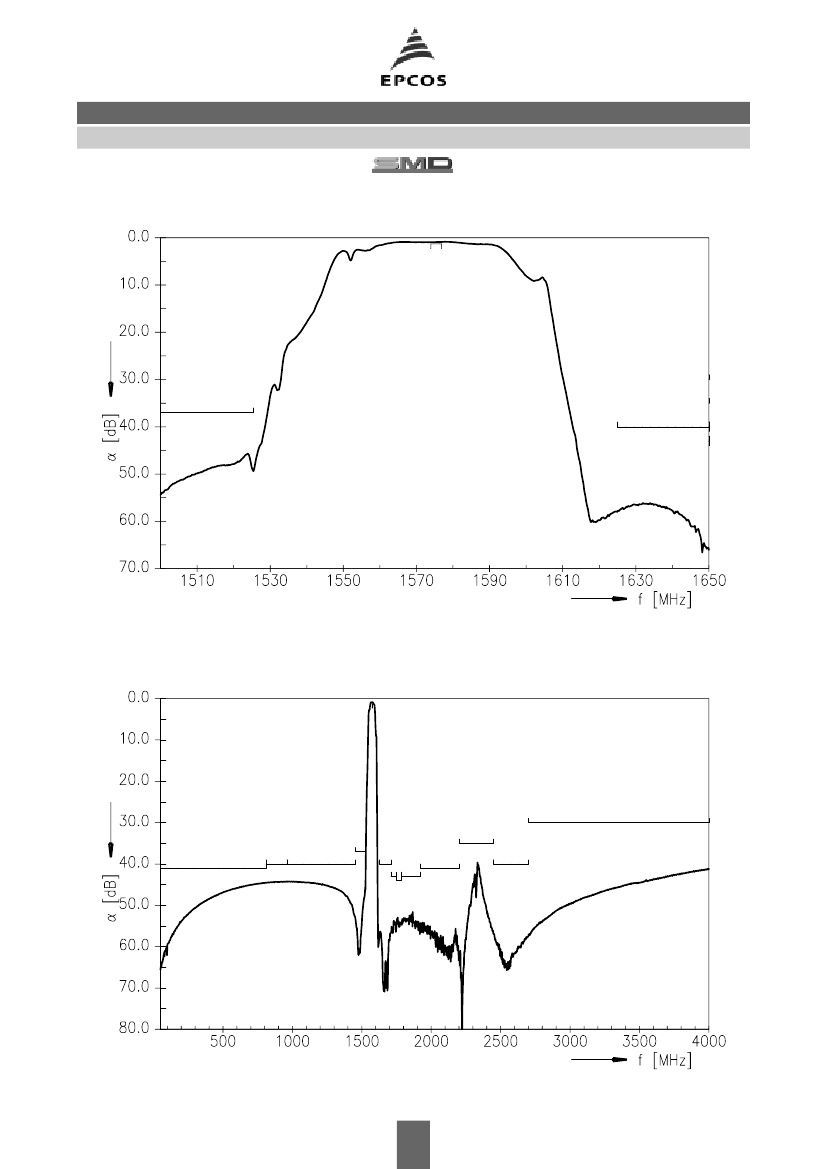

Transfer function
B4300
1575.42 MHz
Transfer function
(wideband)
Please read
cautions and warnings and
important notes
at the end of this document.
5
August 25, 2011
