SAW Components
SAW RF filter
Short range devices
Series/type:
Ordering code:
Date:
Version:
B3516
B39192-B3516-U410
April 08, 2009
2.0
©
EPCOS AG 2009. Reproduction, publication and dissemination of this data sheet, enclosures
hereto and the information contained therein without EPCOS’ prior express consent is prohibited.
SAW Components
SAW RF filter
Data sheet
Application
s
Low-loss RF filter for mobile telephone
B3516
1880.00 MHz
PCS systems, transmit path
s
Usable passband 60 MHz
s
No matching network required for
operation at 50
Ω
Features
s
s
s
s
s
s
s
s
s
Package size 3.0 x 3.0 x 1.1 mm
3
Package code DCC6C
RoHS compatible
Approximate weight 0.037 g
Package for
Surface Mount Technology
(SMT)
Ni, gold-plated terminals
Lead free soldering compatible with J - STD20C
AEC-Q200 qualified component family
Electrostatic Sensitive Device
(ESD)
Pin configuration
s
2
Input
s
5
Output
s
1,3,4,6 To be grounded
Please read
cautions and warnings and
important notes
at the end of this document.
2
April 08, 2009
SAW Components
SAW RF filter
Data sheet
Characteristics
Reference temperature:
Terminating source impedance:
Terminating load impedance:
T
A
=
Z
S
=
Z
L
=
+25 ˚C
50
Ω
50
Ω
min.
—
typ.
1880.00
max.
—
B3516
1880.00 MHz
Center frequency
f
C
MHz
Maximum insertion attenuation
α
max
1850.00 ... 1910.00 MHz
Amplitude ripple (p-p)
∆α
1850.00 ... 1910.00 MHz
Input VSWR
1850.00 ... 1910.00 MHz
Output VSWR
1850.00 ... 1910.00 MHz
Attenuation
10.00
1570.00
1935.00
2200.00
2700.00
...
...
...
...
...
1570.00
1720.00
2200.00
2700.00
3820.00
MHz
MHz
MHz
MHz
MHz
α
—
2.9
3.4
dB
—
1.3
1.8
dB
—
2.0
2.2
—
2.0
2.2
25.0
26.0
32.0
24.0
12.0
29.0
31.0
36.0
27.0
15.0
—
—
—
—
—
dB
dB
dB
dB
dB
Please read
cautions and warnings and
important notes
at the end of this document.
3
April 08, 2009
SAW Components
SAW RF filter
Data sheet
Characteristics
Temperature range for specification:
Terminating source impedance:
Terminating load impedance:
T
A
= –40 ˚C to +85 ˚C
Z
S
=
50
Ω
Z
L
=
50
Ω
min.
Center frequency
f
C
—
typ.
@ 25 ˚C
1880.00
max.
—
B3516
1880.00 MHz
MHz
Maximum insertion attenuation
α
max
1850.00 ... 1910.00 MHz
Amplitude ripple (p-p)
∆α
1850.00 ... 1910.00 MHz
Input VSWR
1850.00 ... 1910.00 MHz
Output VSWR
1850.00 ... 1910.00 MHz
Attenuation
10.00
1570.00
1935.00
2200.00
2700.00
...
...
...
...
...
1570.00
1720.00
2200.00
2700.00
3820.00
MHz
MHz
MHz
MHz
MHz
α
—
2.9
4.1
dB
—
1.3
2.7
dB
—
2.0
2.3
—
2.0
2.3
25.0
26.0
20.0
24.0
12.0
29.0
31.0
36.0
27.0
15.0
—
—
—
—
—
dB
dB
dB
dB
dB
Maximum ratings
Operable temperature range T
A
Storage temperature range
DC voltage
Input power max.
1850...1910 MHz
T
stg
V
DC
P
IN
–45/+125 ˚C
–45/+125 ˚C
6
13
12
V
dBm
dBm
source and load impedance 50
Ω
peak power of TDMA signal,
duty cycle 1 : 3
continuous wave
Please read
cautions and warnings and
important notes
at the end of this document.
4
April 08, 2009
SAW Components
SAW RF filter
Data sheet

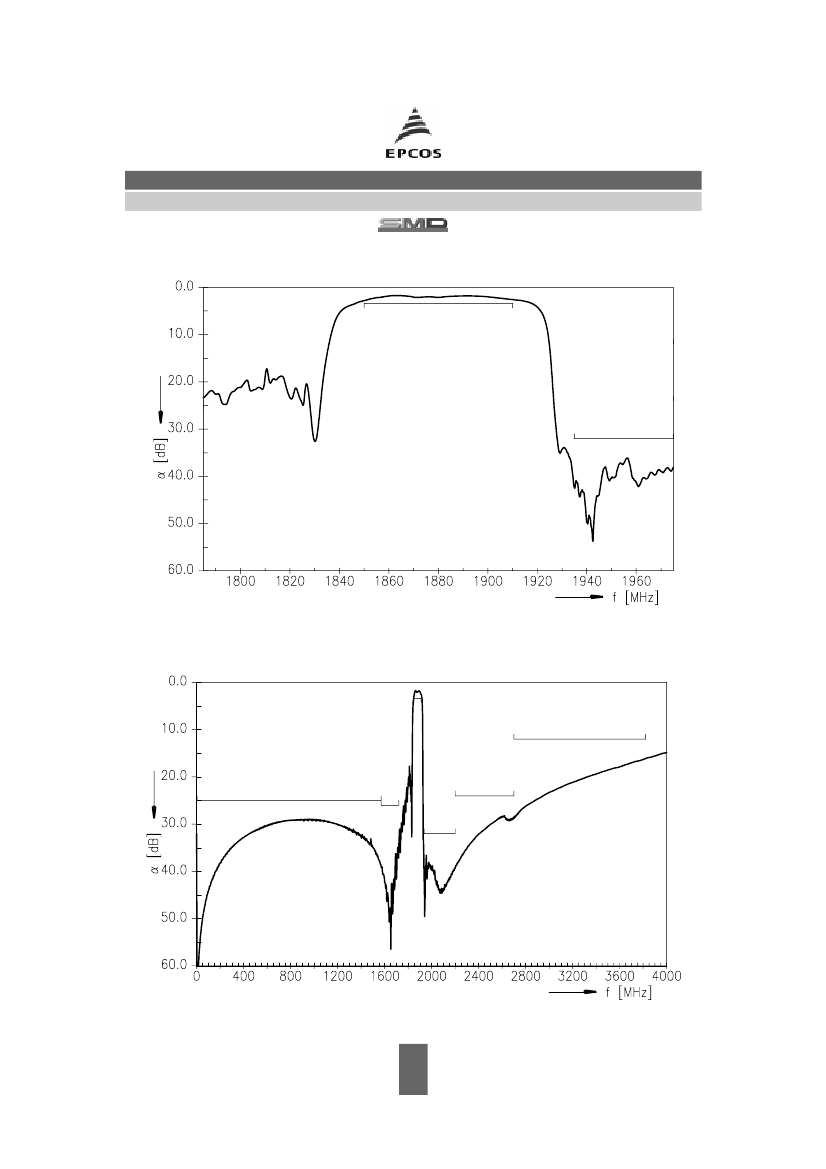

Transfer function
(25˚ C spec)
B3516
1880.00 MHz
Transfer function
(wiedeband)
Please read
cautions and warnings and
important notes
at the end of this document.
5
April 08, 2009
