BLM21PG121SH1J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> BLM21PG121SH1J

BLM21PG121SH1J: DescriptionFerrite Chip, 1 Function(s), 3A, EIA STD PACKAGE SIZE 0805, 2 PIN; CategoryAnalog mixed-signal IC filter; File Size128KB，4 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric View All

BLM21PG121SH1J Overview

Ferrite Chip, 1 Function(s), 3A, EIA STD PACKAGE SIZE 0805, 2 PIN

BLM21PG121SH1J Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	0805
Reach Compliance Code	compliant
ECCN code	EAR99
shell code	0805
structure	Chip Bead
Maximum DC resistance	0.03 Ω
filter type	FERRITE CHIP
maximum frequency	100 MHz
minimum frequency	100 MHz
high	0.85 mm
JESD-609 code	e3
length	2 mm
Material	Ferrite
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output impedance	120 OHM Ω
method of packing	TAPE
physical size	L2.0XB1.25XH0.85 (mm)/L0.079XB0.049XH0.033 (inch)
Rated current	3 A
Terminal surface	Tin (Sn)
width	1.25 mm
Base Number Matches	1

Preview

Download Datasheet

View All

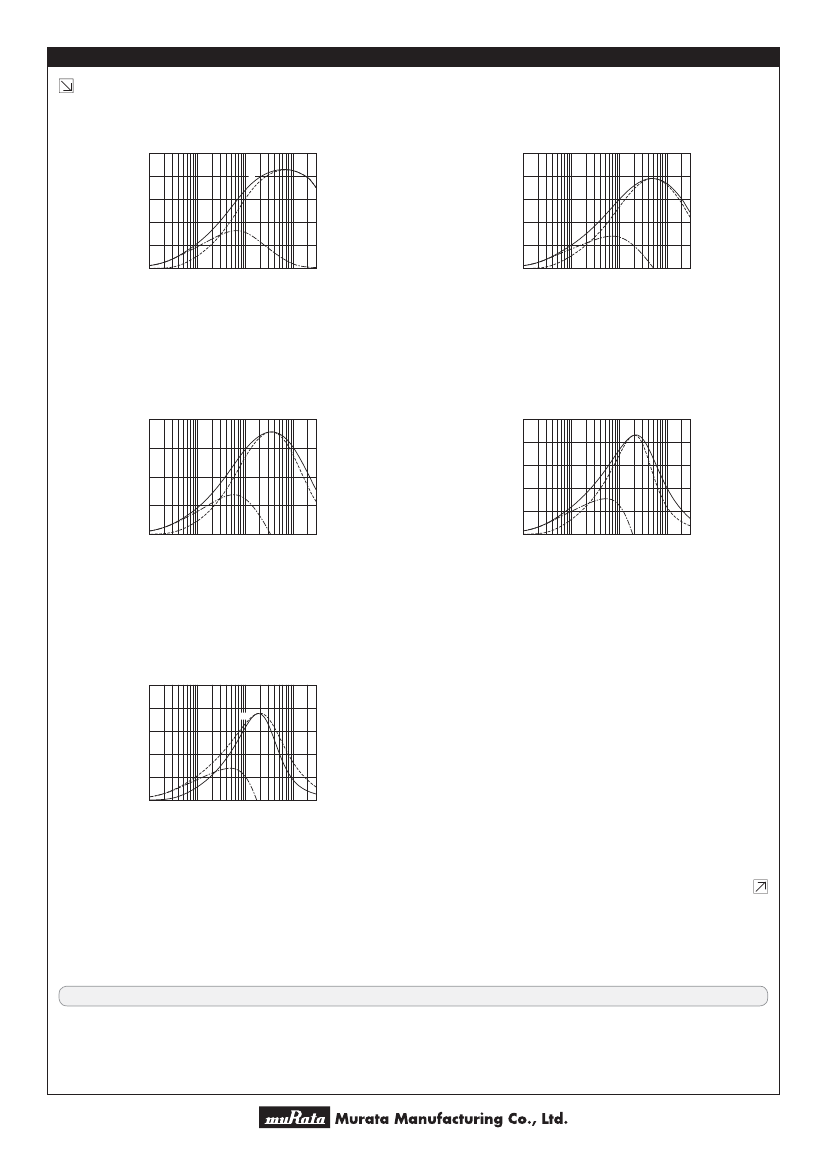

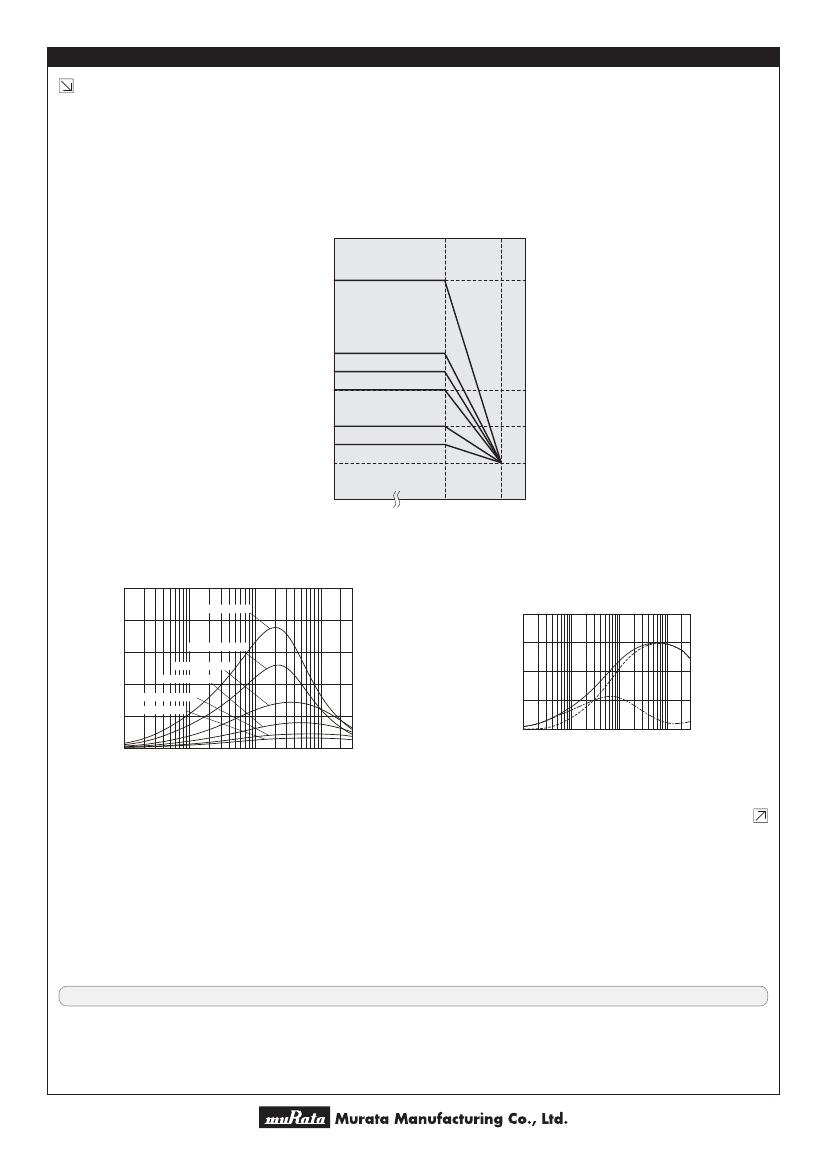

Noise Suppression Products/EMI Suppression Filters > For Automotive > Chip Ferrite Bead for Automotive

Data Sheet

For Automotive

Chip Ferrite Bead for Automotive

BLM21P Series (0805 Size)

Dimensions

0.5±0.2

Equivalent Circuit

2.0±0.2

1.25±0.2

0.85±0.2

(Resistance element becomes dominant

at high frequencies.)

EIA CODE : 0805

: Electrode

(in mm)

Packaging

Code

Packaging

180mm Paper Tape

330mm Paper Tape

Bulk(Bag)

Minimum Quantity

4000

10000

1000

Rated Value (p: packaging code)

Part Number

BLM21PG220SH1p

BLM21PG300SH1p

BLM21PG600SH1p

BLM21PG121SH1p

BLM21PG221SH1p

BLM21PG331SH1p

Number of Circuits: 1

Continued on the following page.

Impedance

(at 100MHz/20°C)

22ohm ±25%

30ohm (Typ.)

60ohm ±25%

120ohm ±25%

220ohm ±25%

330ohm ±25%

Impedance

(at 1GHz/20°C)

Rated Current

6000mA

4000mA

3500mA

3000mA

2000mA

1500mA

DC Resistance

0.009ohm max.

0.014ohm max.

0.02ohm max.

0.03ohm max.

0.045ohm max.

0.07ohm max.

Operating

Temperature Range

-55 to +125°C

oThis

data sheet is applied for CHIP FERRITE BEAD used for Automotive Electronics equipment for your design.

!Note:

1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s speciﬁcations are subject to change or our

products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.

2. This datasheet has only typical speciﬁcations because there is no space for detailed speciﬁcations. Therefore, please approve our product

speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

2012.1.10
