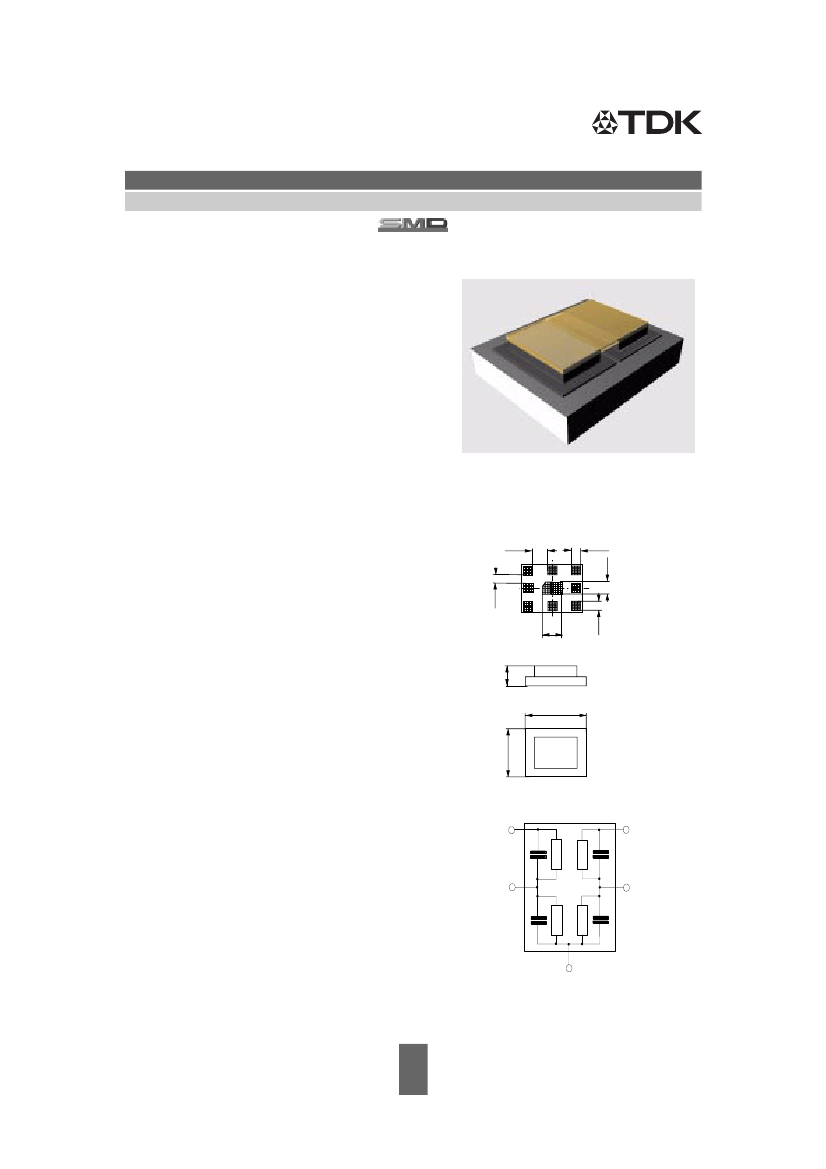

SAW Components
BAW Duplexer
Data Sheet
Application
s
Low-loss BAW duplexer for mobile telephone
B7692
1880.0 / 1960.0 MHz
WCDMA Band II systems
s
Low insertion attenuation
s
Low amplitude ripple
s
Usable passband 60 MHz
Features
s
Package size 3.0 x 2.5 mm
2
,
s
s
s
s
s
0.65
1
2
3
0.5
1.05
max. height 1.15 mm
RoHS compatible
Package for
Surface Mount Technology
(SMT)
Ni, gold-plated terminals
Fully matched by integrated matching network
Electrostatic Sensitive Device
(ESD)
0.4
9
8
4
0.6
bottom view
1.1
0.5
side view
top view
7
6
5
3.0
Pin configuration
s
s
s
s
s
2.5
1
3
1
6
7, 8, 9
2, 4, 5
TX Input
RX Output
Antenna
To be grounded
To be grounded
3
7,8,9
2,4,5
6
Please read
cautions and warnings and
important notes
at the end of this document.
2
December 11, 2008
SAW Components
BAW Duplexer
Data Sheet
Characteristics
Temperature range for specification:
ANT terminating impedance:
RX terminating impedance:
TX terminating impedance:
T
= –10 ˚C to +85 ˚C
Z
ANT
= 50
Ω
Z
RX
= 50
Ω
Z
TX
= 50
Ω
B7692
1880.0 / 1960.0 MHz
Characteristics TX - ANT
Center frequency
f
C
min.
typ.
@ 25˚C
1880.0
max.
MHz
Maximum insertion attenuation
@f
Carrier
1852.4 ... 1907.6 MHz
α
WCDMA1)
@f
Carrier
1852.4
... 1907.6 MHz
α
WCDMA1)
Amplitude ripple
(p-p)
@f
Carrier
1852.4 ... 1907.6 MHz
α
WCDMA1)
Error Vector Magnitude
@f
Carrier
1852.4 ... 1907.6 MHz EVM
4)
Input VSWR (TX port)
1850.0 ... 1910.0 MHz
1850.0
... 1910.0 MHz
Output VSWR (ANT port)
1850.0 ... 1910.0MHz
Attenuation
50.0
1574.4
1770.0
@f
Carrier
1932.4
2110.0
2400.0
3700.0
3820.0
1)
2)
3)
4)
-
-
-
-
-
-
-
-
2.2
2.2
1.0
1.2
1.7
1.7
1.8
34
41
22
55
38
28
20
8
3.0
2)
3.2
3)
2.0
3.8
2.1
2)
2.2
3)
2.2
-
-
-
-
-
-
-
-
dB
dB
dB
%
α
...
...
...
...
...
...
...
...
1574.0 MHz
1576.5 MHz
1830.0 MHz
1987.6 MHz
α
WCDMA1)
2155.0 MHz
2500.0 MHz
3820.0 MHz
6000.0 MHz
30
36
10
45
20
20
14
5
dB
dB
dB
dB
dB
dB
dB
dB
Attenuation of WCDMA signal (“Powertransferfunction”). Please refer to annotation on page (6).
-10 to +55 ˚C
+55 to +85 ˚C
Error Vector Magnitude (EVM) based on definition given in 3GPP TS 25.141.
Please read
cautions and warnings and
important notes
at the end of this document.
3
December 11, 2008
SAW Components
BAW Duplexer
Data Sheet
Characteristics
Temperature range for specification:
ANT terminating impedance:
RX terminating impedance:
TX terminating impedance:
Characteristics ANT- RX
Center frequency
f
C
T
= –10 ˚C to +85 ˚C
Z
ANT
= 50
Ω
Z
RX
= 50
Ω
Z
TX
= 50
Ω
min.
typ.
@ 25˚C
1960.0
max.
MHz
B7692
1880.0 / 1960.0 MHz
Maximum insertion attenuation
@f
Carrier
1932.4 ... 1987.6 MHz
α
WCDMA1)
Amplitude ripple
(p-p)
@f
Carrier
1932.4 ... 1987.6 MHz
α
WCDMA1)
Error Vector Magnitude
@f
Carrier
1932.4 ... 1987.6 MHz EVM
2)
@f
Carrier
1932.4
... 1987.6 MHz EVM
2)
Input VSWR (ANT port)
1930.0 ... 1990.0 MHz
Output VSWR (RX port)
1930.0 ... 1990.0 MHz
Attenuation
0.3
1770.0
@f
Carrier
1852.4
2075.0
2400.0
3860.0
5620.0
1)
2)
3)
4)
-
-
-
-
-
-
-
30
38
48
15
35
30
15
2.6
1.3
2.0
2.0
1.8
1.8
35
44
55
40
48
50
40
3.5
2.0
3.8
3)
6.0
4)
2.2
2.2
-
-
-
-
-
-
-
dB
dB
%
%
α
... 1770.0 MHz
... 1850.0 MHz
... 1907.6 MHz
α
WCDMA1)
...
...
...
...
2400.0 MHz
2500.0 MHz
3980.0 MHz
5820.0 MHz
dB
dB
dB
dB
dB
dB
dB
Attenuation of WCDMA signal (“Powertransferfunction”). Please refer to annotation on page (6).
Error Vector Magnitude (EVM) based on definition given in 3GPP TS 25.141.
+10 ˚C to +85 ˚C.
-10 ˚C to +10 ˚C.
Please read
cautions and warnings and
important notes
at the end of this document.
4
December 11, 2008
SAW Components
BAW Duplexer
Data Sheet
Characteristics
Temperature range for specification:
Antenna terminating impedance:
RX terminating impedance:
TX terminating impedance:
T
= –10 ˚C to +85 ˚C
Z
ANT
= 50
Ω
Z
RX
= 50
Ω
Z
TX
= 50
Ω
B7692
1880.0 / 1960.0 MHz
IMD Product Level Limits at Rx fre-
quencies and at Rx port
1)
(1930 ... 1990 MHz):
Blocker 1
80.0MHz
Blocker 2
1770.0 ... 1830.0MHz
Blocker 3
3840.0MHz
1)
min.
-
-
-
typ.
@ 25˚C
-112
-110
-86
max.
-
-
-
dBm
dBm
dBm
IMD product level limits for power levels P
TX
= 21dBm (antenna port output power) and P
Blocker
=
-15dBm (antenna port input power).
Characteristics TX - RX
Isolation
@f
Carrier
1852.4
@f
Carrier
1932.4
1)
min.
typ.
@ 25 ˚C
54
54
max.
α
... 1907.6 MHz
α
WCDMA1)
... 1987.6 MHz
α
WCDMA1)
50
48
-
-
dB
dB
Attenuation of WCDMA signal (“Powertransferfunction”). Please refer to annotation on page (6).
Please read
cautions and warnings and
important notes
at the end of this document.
5
December 11, 2008
