SAW Filters for Multimedia Applications
Series/Type:
K9358M
The following products presented in this data sheet are being withdrawn.
Ordering Code
B39380K9358M100
Substitute Product
B39380K9358X400
Date of Withdrawal
2010-10-08
Deadline Last
Orders
2011-03-30
Last Shipments
2011-06-30
For further information please contact your nearest EPCOS sales office, which will also support you in selecting a
suitable substitute. The addresses of our worldwide sales network are presented at www.epcos.com/sales.
SAW Components
SAW IF filter
Data sheet
Application
s
TV IF audio filter with pass band for sound carriers
K 9358 M
38.00 MHz
between 31.45 MHz and 32.50 MHz
s
Standards: B/G, D/K, I
Features
s
s
s
s

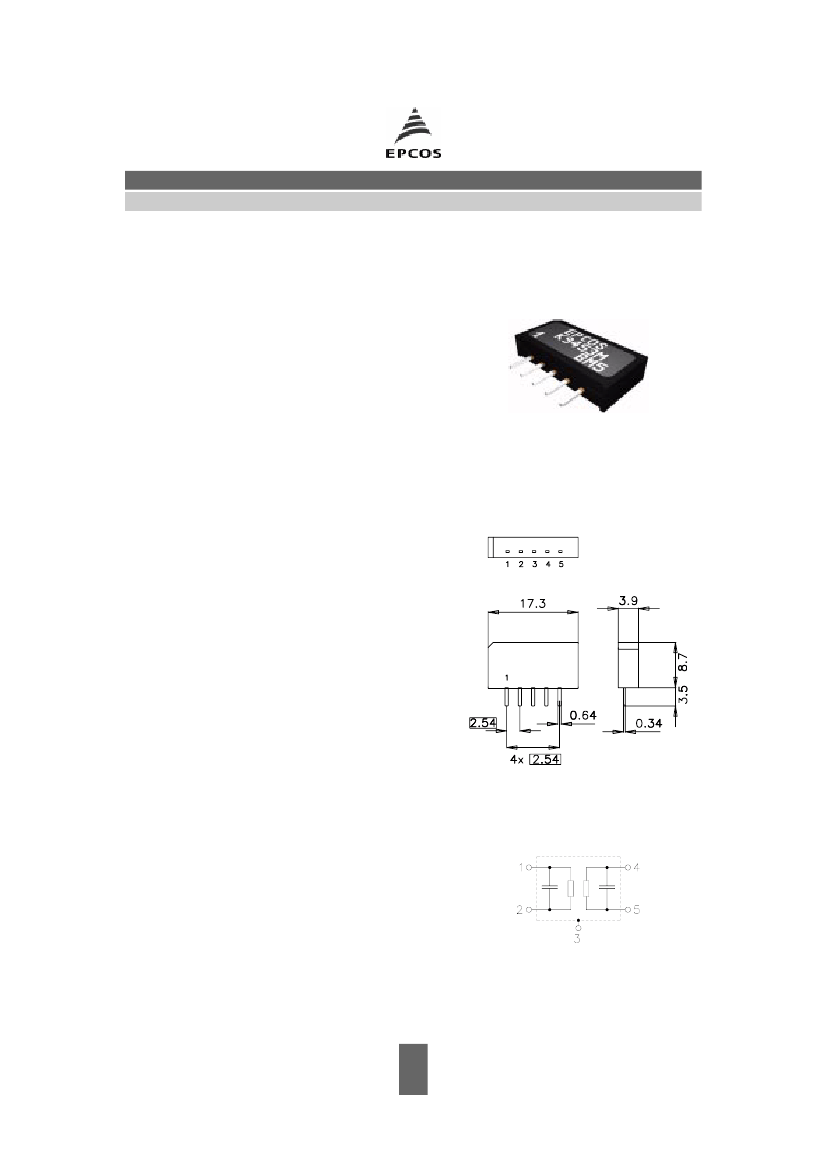

Plastic package
SIP5K
Approximate weight 1.0 g
RoHS compatible
Tinned CuFe alloy terminals
Pin configuration
s
s
s
s
s
1
2
3
4
5
Input
Input - ground
Chip carrier - ground
Output
Output
Please read
cautions and warnings and
important notes
at the end of this document.
2
April 07, 2006
SAW Components
SAW IF filter
Data sheet
Characteristics
Reference temperature:
Terminating source impedance:
Terminating load impedance:
T
A
= 25 °C
Z
S
= 50
Ω
Z
L
= 2 kΩ || 3 pF

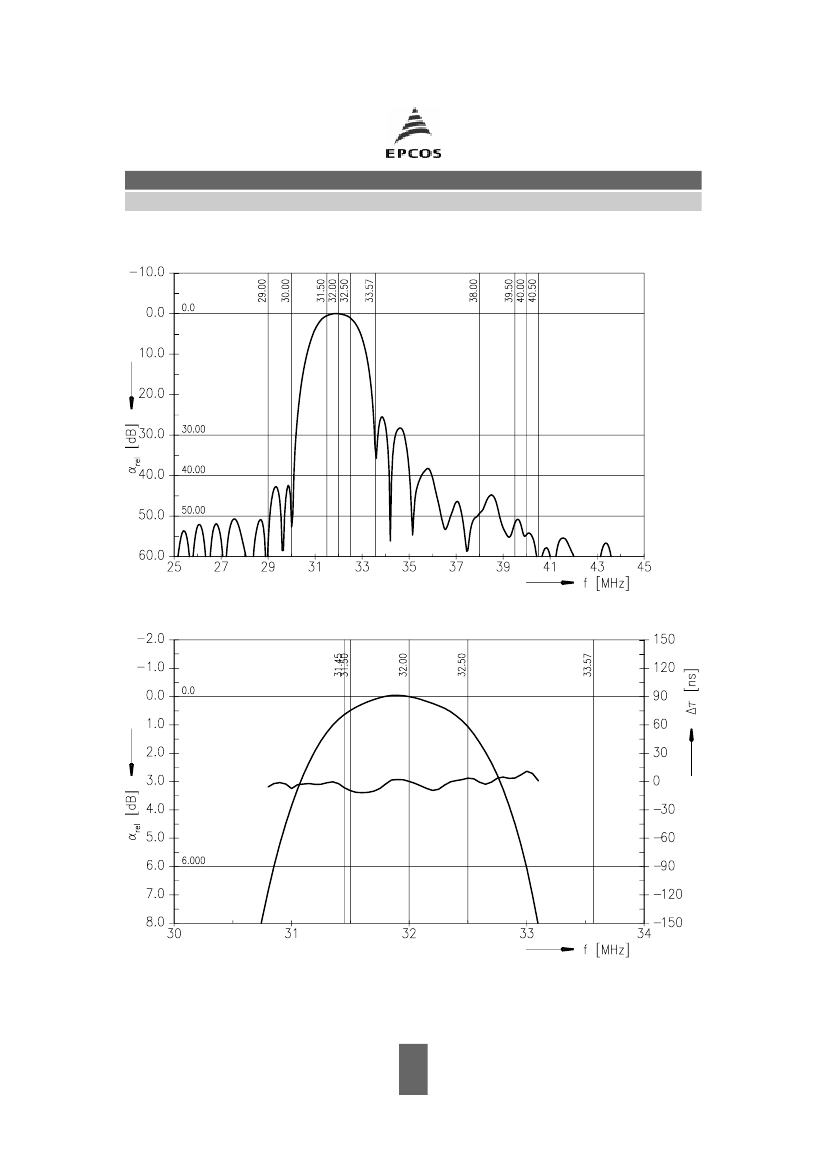

min.
Insertion attenuation
Reference level for the
following data
Relative attenuation
Sound carrier
Picture carrier
Color carrier
Adjacent picture carrier
Adjacent sound carrier
Lower sidelobe
Upper sidelobe
α
typ.
@ 25 ˚C
9.8
max.
K 9358 M
38.00 MHz
32.00 MHz
8.3
11.3
dB
31.45 MHz
31.50 MHz
32.50 MHz
38.00 MHz
33.57 MHz
30.00 MHz
39.50 MHz
40.00 MHz
40.50 MHz
α
rel
–0.4
–0.5
0.1
38.0
24.0
30.0
40.0
40.0
40.0
37.0
37.0
0.6
0.5
1.1
48.0
32.0
50.0
52.0
54.0
60.0
50.0
45.0
1.6
1.5
2.1
—
—
—
—
—
—
—
—
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
25.00 ... 29.00 MHz
38.00 ... 45.00 MHz
Impedance
at 32.00 MHz
Input:
Z
IN
= R
IN
||
C
IN
Output:
Z
OUT
= R
OUT
||
C
OUT
Temperature coefficient of frequency
TC
f
—
—
—
0.9||10.4
2.9|| 3.0
–72
—
—
—
kΩ || pF
kΩ || pF
ppm/K
Maximum ratings
Operable temperature range
Storage temperature range
DC voltage
AC voltage
T
T
stg
V
DC
V
pp
–25 / +65 °C
–40 / +85 °C
5
V
10
V
between any terminals
between any terminals
Please read
cautions and warnings and
important notes
at the end of this document.
3
April 07, 2006
SAW Components
SAW IF filter
Data sheet
K 9358 M
38.00 MHz
References
Type
Ordering code
Marking and package
Packaging
Date codes
S-parameters
Soldering profile
RoHS compatible
K 9358 M
B39380-K9358-M100
C61157-A1-A15
F61074-V8067-Z000
L_1126
K9358M_NB.s4p
S_6001
defined as compatible with the following documents:
"DIRECTIVE 2002/95/EC OF THE EUROPEAN PARLIAMENT
AND OF THE COUNCIL of 27 January 2003 on the restriction
of the use of certain hazardous substances in electrical and
electronic equipment. 2005/618/EC from April 18th, 2005,
amending Directive 2002/95/EC of the European Parliament
and of the Council for the purposes of establishing the maxi-
mum concentration values for certain hazardous substances in
electrical and electronic equipment."
For further information please contact your local EPCOS sales office or visit our webpage at
www.epcos.com .
Published by EPCOS AG
Surface Acoustic Wave Components Division
P.O. Box 80 17 09, 81617 Munich, GERMANY
©
EPCOS AG 2006. This brochure replaces the previous edition.
For questions on technology, prices and delivery please contact the Sales Offices of EPCOS AG or
the international Representatives.
Due to technical requirements components may contain dangerous substances. For information on
the type in question please also contact one of our Sales Offices.
Please read
cautions and warnings and
important notes
at the end of this document.
5
April 07, 2006
Analog electronics
