BFD1650R2B datasheet, PDF - EEWORLD Datasheet

BFD1650R2B: DescriptionFerrite Bead, 1 Function(s), 100V, 3A,; CategoryAnalog mixed-signal IC filter; File Size190KB，4 Pages; ManufacturerSAMWHA; Websitehttp://www.samwha.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BFD1650R2B Overview

Ferrite Bead, 1 Function(s), 100V, 3A,

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum DC resistance	0.01 Ω
filter type	FERRITE BEAD
Minimum insulation resistance	1 MΩ
Manufacturer's serial number	BF
Installation type	THROUGH HOLE MOUNT
Number of functions	1
Output impedance	80 OHM Ω
method of packing	BULK
Rated current	3 A
Rated voltage	100 V
Base Number Matches	1

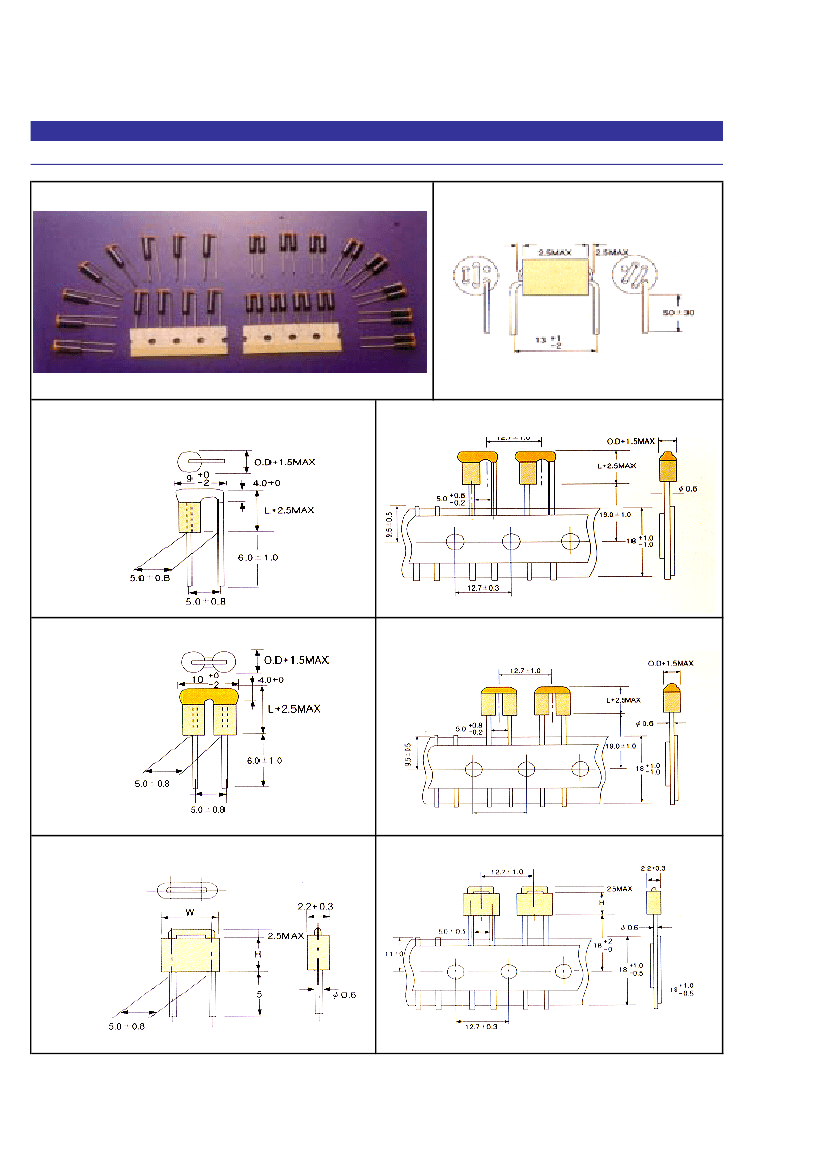

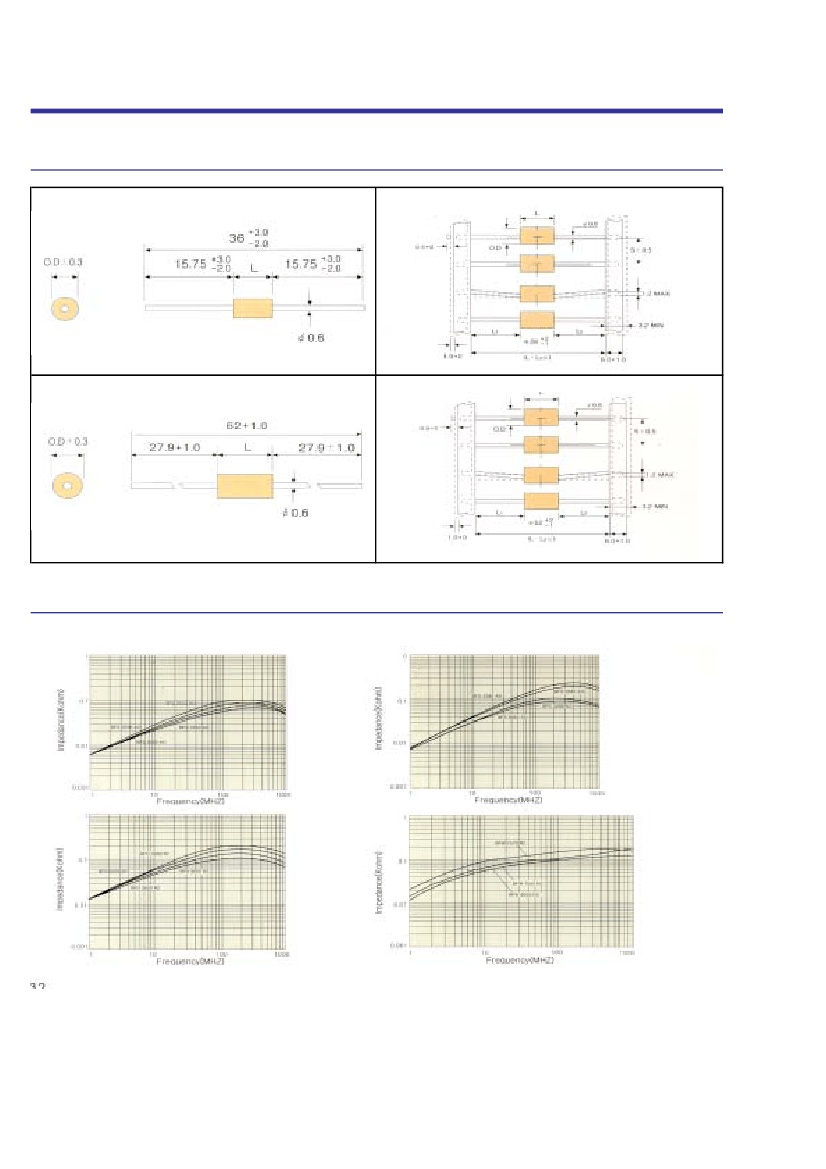

EMI BEAD FILTERS (PATENTED)

FEATURES

・

㎒

・

± Ω

Ω

APPLICATION

・

TYPE DESIGNATION

⑥

⑤

④

③

②

①

・

㎜

	BFD1650R2B	BFD1650R2F	BFW6050R2B	BFW6050R2F	BFW7550R2B	BFW7550R2F
Description	Ferrite Bead, 1 Function(s), 100V, 3A,	Ferrite Bead, 1 Function(s), 100V, 3A,	Ferrite Bead, 1 Function(s), 100V, 6A,	Ferrite Bead, 1 Function(s), 100V, 6A,	Ferrite Bead, 1 Function(s), 100V, 6A,	Ferrite Bead, 1 Function(s), 100V, 6A,
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum DC resistance	0.01 Ω	0.01 Ω	0.01 Ω	0.01 Ω	0.01 Ω	0.01 Ω
filter type	FERRITE BEAD	FERRITE BEAD	FERRITE BEAD	FERRITE BEAD	FERRITE BEAD	FERRITE BEAD
Minimum insulation resistance	1 MΩ	1 MΩ	1 MΩ	1 MΩ	1 MΩ	1 MΩ
Manufacturer's serial number	BF	BF	BF	BF	BF	BF
Installation type	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of functions	1	1	1	1	1	1
Output impedance	80 OHM Ω	80 OHM Ω	115 OHM Ω	115 OHM Ω	110 OHM Ω	110 OHM Ω
method of packing	BULK	TAPE	BULK	TAPE	BULK	TAPE
Rated current	3 A	3 A	6 A	6 A	6 A	6 A
Rated voltage	100 V	100 V	100 V	100 V	100 V	100 V
Base Number Matches	1	1	1	1	1	1
diameter	-	-	6 mm	6 mm	7.5 mm	7.5 mm
physical size	-	-	D6XL5 (mm)	D6XL5 (mm)	D7.5XL5 (mm)	D7.5XL5 (mm)
