EMC filters
3-line filters
for converters and power electronics
Series/Type:
Date:
B84143B*R110
May 2014
© EPCOS AG 2015. Reproduction, publication and dissemination of this publication, enclosures hereto and the
information contained therein without EPCOS' prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
3-line filters
for converters and power electronics
B84143B*R110
Power line filters for 3-phase systems
Rated voltage V
R
: 520/300 V AC
Rated current I
R
: 8 A to 200 A
Construction
3-line filters
Metal case
Book size
Features
Very high insertion loss
Optimized leakage current
Space saving by optimized footprint
Litz wires on the load side reduce mounting time
Low weight
Degree of protection: IP 20
1)
Optimized for long motor cables
and operation under full load
Design complies with UL 1283, CSA C22.2 No.8
ENEC approval
Typical applications
Frequency converters for motor drives, e.g.
elevators, pumps, traction systems, conveyor systems,
HVAC systems (heating, ventilation and air
conditioning)
Wind farms
Power supplies
Terminals
Line: Finger-safe terminal blocks
Load: Litz wires
Marking
Marking on component:
Manufacturer's logo, ordering code, rated voltage, rated
current, rated temperature, climatic category, date code
Minimum data on packaging:
Manufacturer's logo, ordering code, quantity, date code
1) According to IEC 60529
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 15
3-line filters
for converters and power electronics
B84143B*R110
Technical data and measuring conditions
Rated voltage V
R
520/300 V AC (50/60 Hz)
Rated voltage for IT mains supply 460/265 V AC (50/60 Hz)
Rated current I
R
Test voltage V
test
Overload capability (thermal)
Leakage current l
LK
Climatic category (IEC 60068-1)
Approvals
See also chapter "General technical information", section 7.
Referred to 40
°C
rated temperature
2250 V DC, 2 s (line/line)
2720 V DC, 2 s (lines/case)
1.5 I
R
for 3 min per hour or
2.5 I
R
for 30 s per hour
At V
R
and 50 Hz
25/100/21 ( 25
°C/+100 °C/21
days damp heat test)
IEC 60939
Characteristics and ordering codes
I
R
Terminal cross section
Line side:
Load side: litz
terminal blocks
wires
2
mm
mm
2
1.5
2.5
4
6
10
16
25
35
35
70 / 35
1)
I
LK
R
typ
Approx.
weight
kg
1.5
1.5
2.7
3.2
3.7
4.3
7.7
8.3
9.7
13.5
B84143B0008R110
B84143B0016R110
B84143B0025R110
B84143B0036R110
B84143B0050R110
B84143B0066R110
B84143B0090R110
B84143B0120R110
B84143B0150R110
B84143B0200R110
×
×
×
×
×
×
×
×
×
×
Ordering code
Approv.
A
mA
2.54
2.54
3.1
3.1
3.1
3.1
3.1
3.1
3.1
3.1
mΩ
26
13
10
6.5
4.3
2.7
2.0
1.4
0.9
0.5
V
R
= 520/300 V AC
8
4
16
4
25
6
36
6
50 16
66 25
90 25
120 50
150 50
200 95
1) PE wire
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 15
3-line filters
for converters and power electronics
B84143B*R110

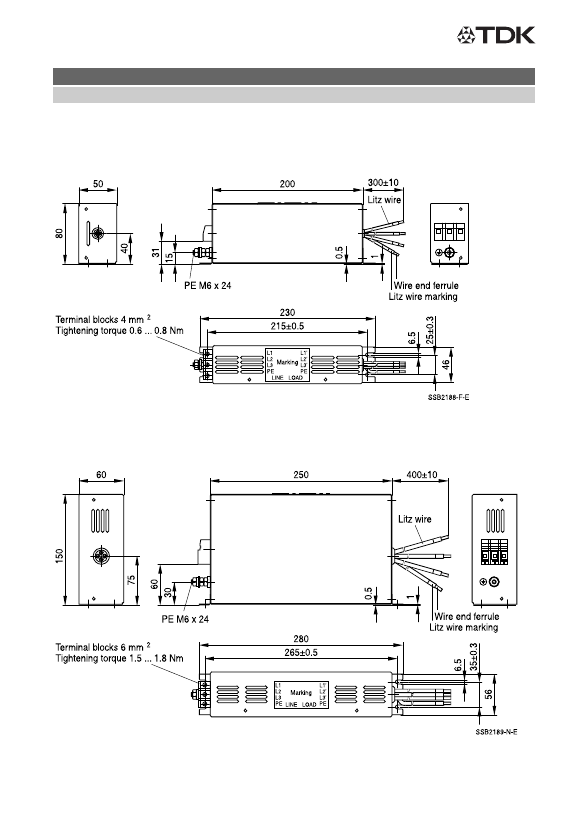

Dimensional drawings
B84143B0008R110, B84143B0016R110 (8 A and 16 A)
General tolerances according to ISO 2768 cL
Dimensions in mm
B84143B0025R110 (25 A)
General tolerances according to ISO 2768 cL
Dimensions in mm
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 5 of 15
