B39212-B1662-B510

Description
SAW Filter, 1 Function(s), 2096.66MHz, 8 Pin(s), Ceramic, ROHS COMPLIANT, SMD, QCC8F, 8 PIN
CategoryAnalog mixed-signal IC    filter
File Size79KB,7 Pages
ManufacturerTDK Corporation
Websitehttp://www.tdk.com
Environmental Compliance
Download Datasheet Parametric View All

B39212-B1662-B510 Overview

SAW Filter, 1 Function(s), 2096.66MHz, 8 Pin(s), Ceramic, ROHS COMPLIANT, SMD, QCC8F, 8 PIN

B39212-B1662-B510 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codecompliant
Center frequency or cutoff frequency (fo/fc)2096.66 MHz
filter typeSAW FILTER
high1.1 mm
input resistance150 OHM
Maximum insertion loss5 dB
JESD-609 codee4
length3 mm
Installation typeSURFACE MOUNT
Number of functions1
Number of terminals8
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Output impedance150 OHM Ω
Packaging MaterialsCERAMIC
physical sizeL3.0XB3.0XH1.1 (mm)/L0.118XB0.118XH0.043 (inch)
Terminal surfaceNickel/Gold (Ni/Au)
width3 mm
Base Number Matches1

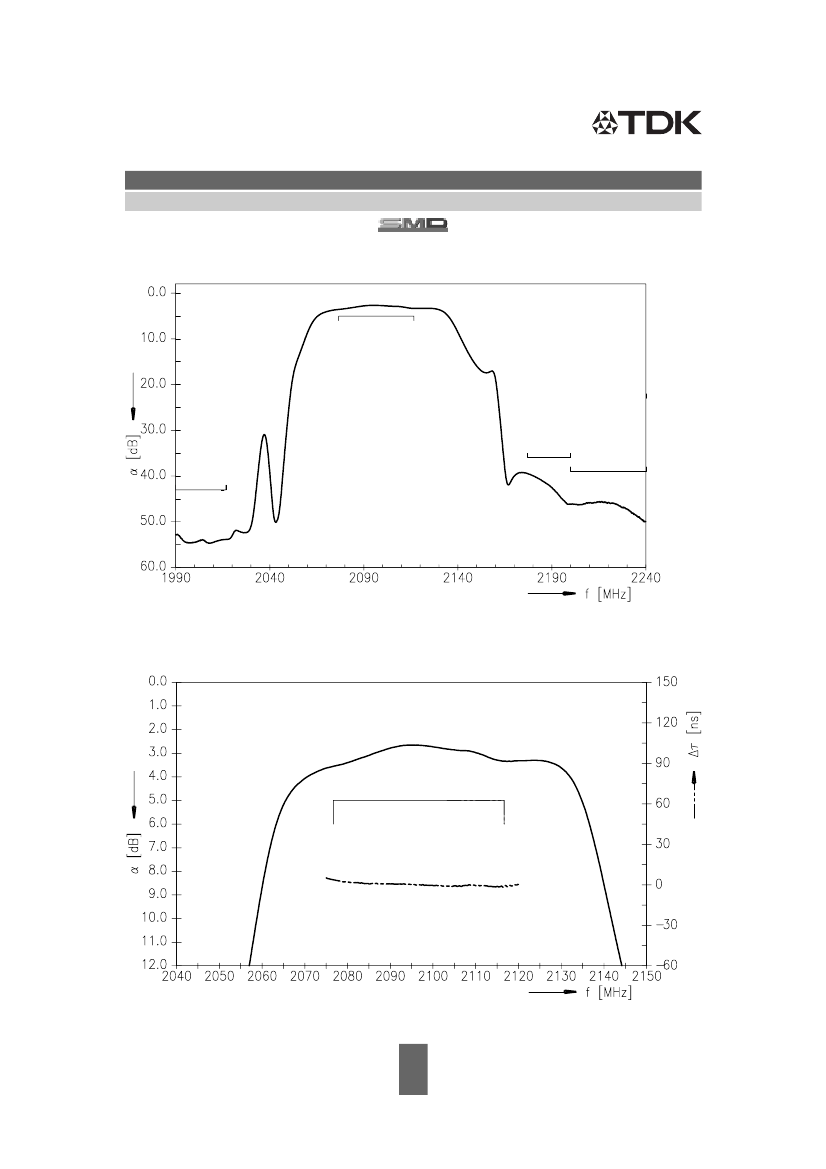

SAW Components
SAW RF low loss filter
Satellite CSS
Series/type:
Ordering code:
Date:
Version:
B1662
B39212-B1662-B510
November 23, 2009
2.0
EPCOS AG 2015. Reproduction, publication and dissemination of this publication, enclosures hereto and the information
contained therein without EPCOS' prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
