Microwave Ceramics and Modules
2-Pol Filter for DECT
Datasheet Standard
Filter
B69812N1897J320
Features
SMD filter consisting of coupled resonators with stepped impedances
(NdBa)TiO3 (ε
r
= 88 /
TCf
=0±10 ppm/K) with a coating of copper (10µm) and tin (>5µm)
Excellent reflow solderability, no migration effect due to copper/tin metallization
Index
Page 2
•
Component drawing
•
Recommended footprint
Page 3
•
Characteristics
•
Maximum ratings
•
Typical passband characteristic
Page 4
•
Processing information
•
Soldering requirements
•
Delivery mode
ISSUE DATE
13.05.03
ISSUE
A
PUBLISHER
SAW MWC PD F
PAGE
1/4
Microwave Ceramics and Modules
2-Pol Filter for DECT
Datasheet Standard
Filter
B69812N1897J320
Characteristics
min.
Center frequency
Insertion loss
Passband
Amplitude ripple (peak - peak)
Standing wave ratio
Impedance
Attenuation
at 1660 to 1680 MHz
at 1770 to 1790 MHz
at 3760 to 3800 MHz
at 5640 to 5700 MHz
f
c -
α
IL
B
20
∆α
SWR
Z
α
40
15
12
8
0.3
1.5
50
42
17
0.5
2.0
Ω
dB
dB
dB
dB
typ.
1890
1.3
max.
-
1.8
MHz
dB
MHz
dB
Maximum ratings
IEC climatic category (IEC 68-1)
Operating temperature
Typical Passband Characteristics
- 40/+ 90/56
T
op
0 / + 55
°C
0
attenuation [dB]
-10
-20
-30
-40
-50
-60
frequency [GHz]
DB[S11]
DB[S21]
ISSUE DATE
1.65
1.67
1.69
1.71
1.73
1.75
1.77
1.79
1.81
1.83
1.85
1.87
1.89
1.91
1.93
1.95
1.97
1.99
2.01
2.03
2.05
13.05.03
ISSUE
A
PUBLISHER
SAW MWC PD F
PAGE
3/4
Microwave Ceramics and Modules
2-Pol Filter for DECT
Datasheet Standard
Filter
B69812N1897J320
ZNr.: 514 (FILT95_2)
Processing information
Wettability to IEC 68-2-58:
≥
75% (after aging)
Soldering requirements
Soldering type
Maximum soldering temperature
(measuring point on top surface of the component)
Recommended soldering conditions (infrared):
Temp. [°C]
within 10 sec.
reflow
235 (max. 2 sec.)
225 (max. 10 sec.)
°C
°C
215°C±10°C
20-40 sec.
40-80 sec.
Time [sec.]
LOETPROF.DOC
Delivery mode
Blister tape to IEC 286-3, polyester, grey
Pieces/tape: 3000
Reel: diameter - 330 mm

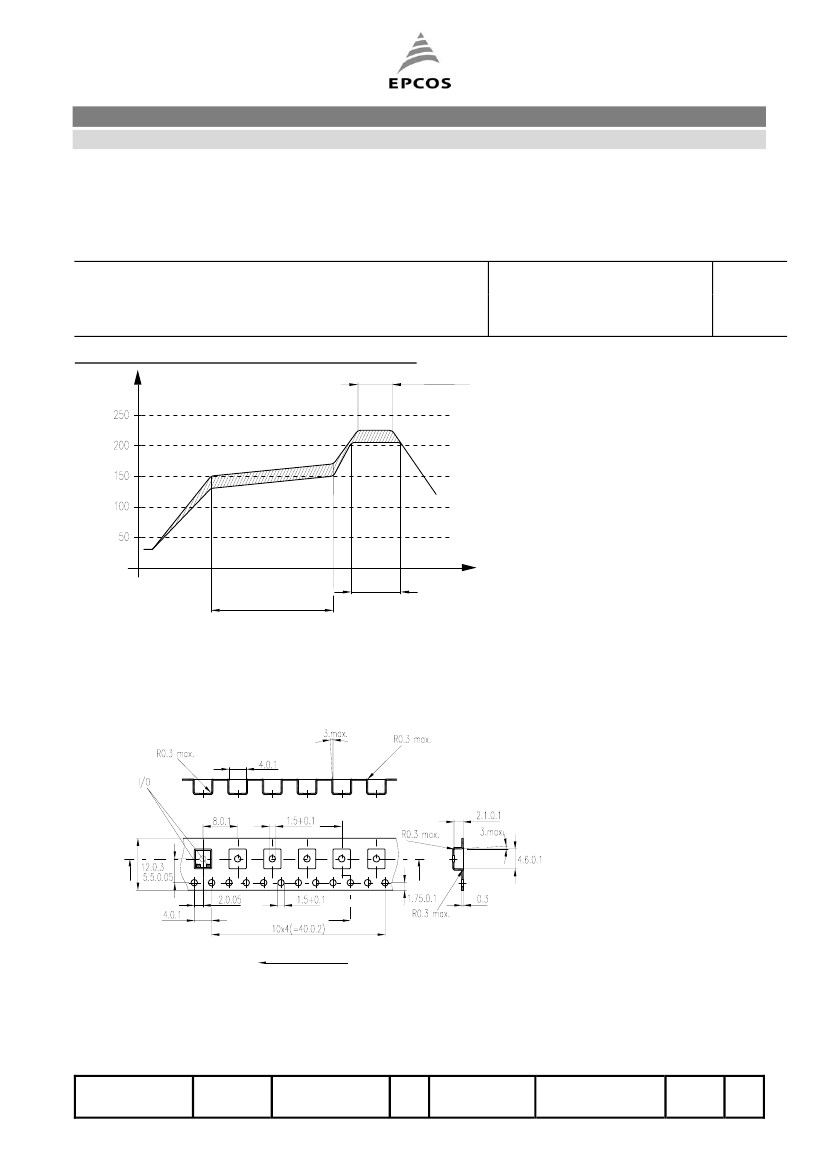

Profile B-B:
Profile A-A:
A
B
B
A
direction of unreeling
