Multilayer Ferrite Beads
Type BMB-M Series
Type BMB-M Series
Specifications
Style
Part
Number
BMB2B0030M4N2
BMB2B0060M4N2
BMB2B0120M4N2
BMB2B0240M4N2
BMB2B0300M4N2
BMB2B0470M4N2
BMB2B0600M4N2
BMB2B1000M4N2
BMB2B0060M4N3
BMB2B0120M4N3
BMB2B0220M4N3
BMB2B0470M4N3
BMB2B0600M4N3
Impedance (ohms)
at 100MHz ±25%
30
60
120
240
300
470
600
1000
60
120
220
470
600
DC Resistance
(ohms) maximum
0.4
0.8
1.0
1.5
1.7
Rated Current
(mA) maximum
350
250
150
100
50
A
The BMB-M Series meets the require-
ments for high density packaging of
electrical circuits by incorporating 4
ferrite beads into one package. This
series is most suitable for EMI
suppression of multiple-lines whilst
cross-talk is minimised due to the
excellent magnetic shielding.
0.4
150
0.55
0.6
B
General Specification
Key Features
I
I
I
I
I
Multi-Line EMI Suppression
High Density Packaging
Suited to Low Frequency
Applications
Designed for Computers
& Peripherals
Ideal for Video & Audio
Applications
Size
1206
A
3.2 ±0.2
B
1.6 ±0.2
C
0.9 ±0.2
D
0.3 ±0.2
E
0.4 ±0.2
F
0.8 ±0.1
Operating Temperature Range: -25°C to +85°C
Characteristic Curves
BMB-2B-0030M4-N2
BMB-2B-0060M4-N2
BMB-2B-0120M4-N2
BMB-2B-0240M4-N2
BMB-2B-0300M4-N2
BMB-2B-0470M4-N2
BMB-2B-0600M4-N2
BMB-2B-1000M4-N2
Literature No. 1773182
Issued: 04-05
Dimensions are shown for
reference purposes only.
Dimensions are in millimetres
unless otherwise specified.
Specifications subject to
change.
www.tycoelectronics.com
passives.tycoelectronics.com

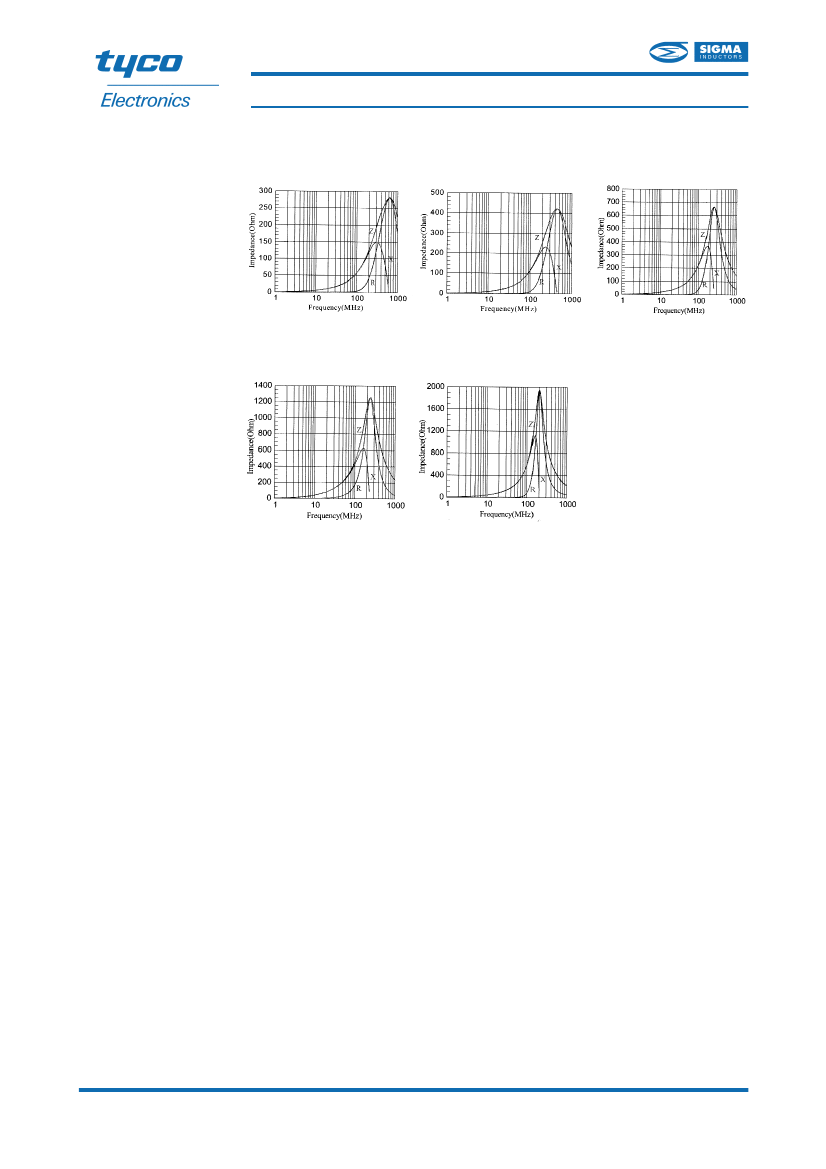

Multilayer Ferrite Beads
Type BMB-M Series
Characteristic Curves (continued)
BMB-2B-0060M4-N3
BMB-2B-0120M4-N3
BMB-2B-0220M4-N3
BMB-2B-0470M4-N3
BMB-2B-0600M4-N3
Literature No. 1773182
Issued: 04-05
Dimensions are shown for
reference purposes only.
Dimensions are in millimetres
unless otherwise specified.
Specifications subject to
change.
www.tycoelectronics.com
passives.tycoelectronics.com
