B39301B5105U310 datasheet, PDF

B39301B5105U310: DescriptionSAW Filter, 1 Function(s), 302.4MHz, 8 Pin(s), Plastic, ROHS COMPLIANT, CERAMIC, SMD, QCC8C, 8 PIN; CategoryAnalog mixed-signal IC filter; File Size97KB，8 Pages; ManufacturerEPCOS (TDK); Environmental Compliance

Download Datasheet Parametric View All

B39301B5105U310 Overview

SAW Filter, 1 Function(s), 302.4MHz, 8 Pin(s), Plastic, ROHS COMPLIANT, CERAMIC, SMD, QCC8C, 8 PIN

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Other features	INSERTION LOSS INCLUDING MATCHING NETWORK
Center frequency or cutoff frequency (fo/fc)	302.4 MHz
filter type	SAW FILTER
high	1.35 mm
input resistance	100 OHM
Maximum insertion loss	3 dB
JESD-609 code	e4
length	5 mm
Manufacturer's serial number	B5105
Installation type	SURFACE MOUNT
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output impedance	100 OHM Ω
Packaging Materials	PLASTIC

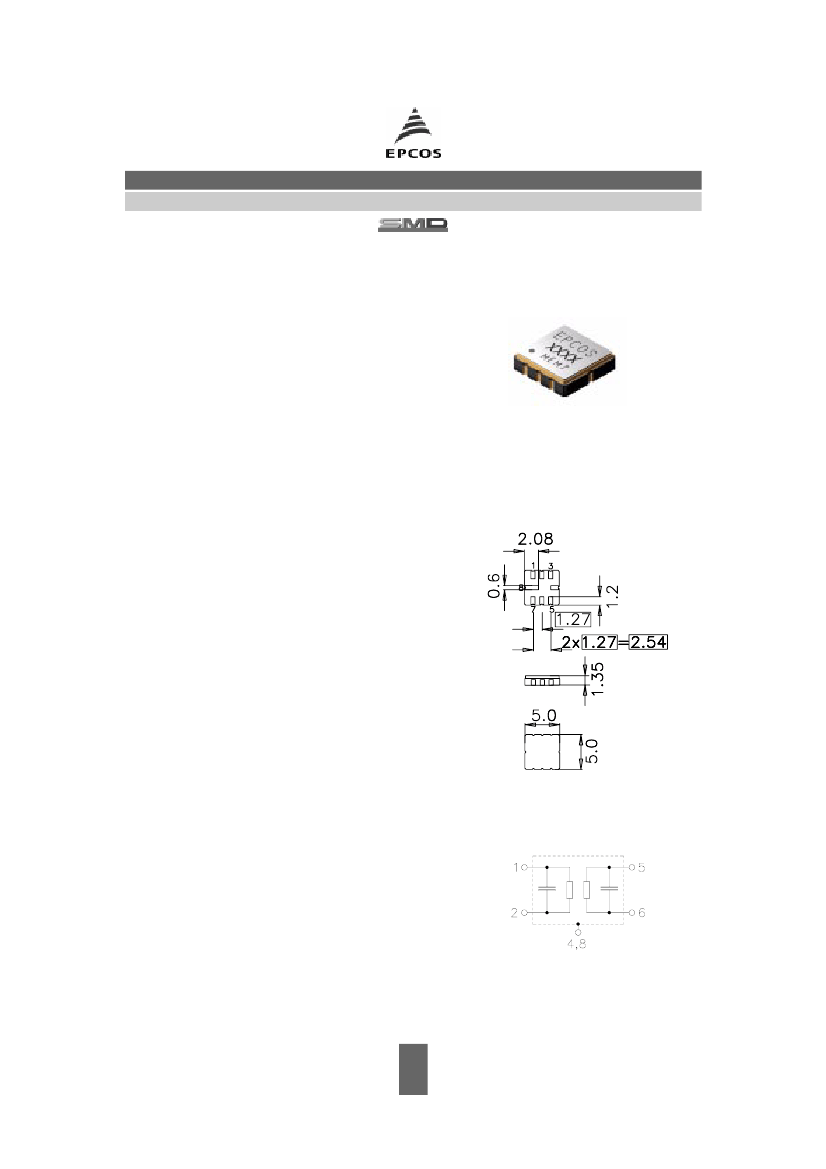

physical size	L5.0XB5.0XH1.35 (mm)/L0.197XB0.197XH0.053 (inch)
Terminal surface	Nickel/Gold (Ni/Au)
width	5 mm
Base Number Matches	1

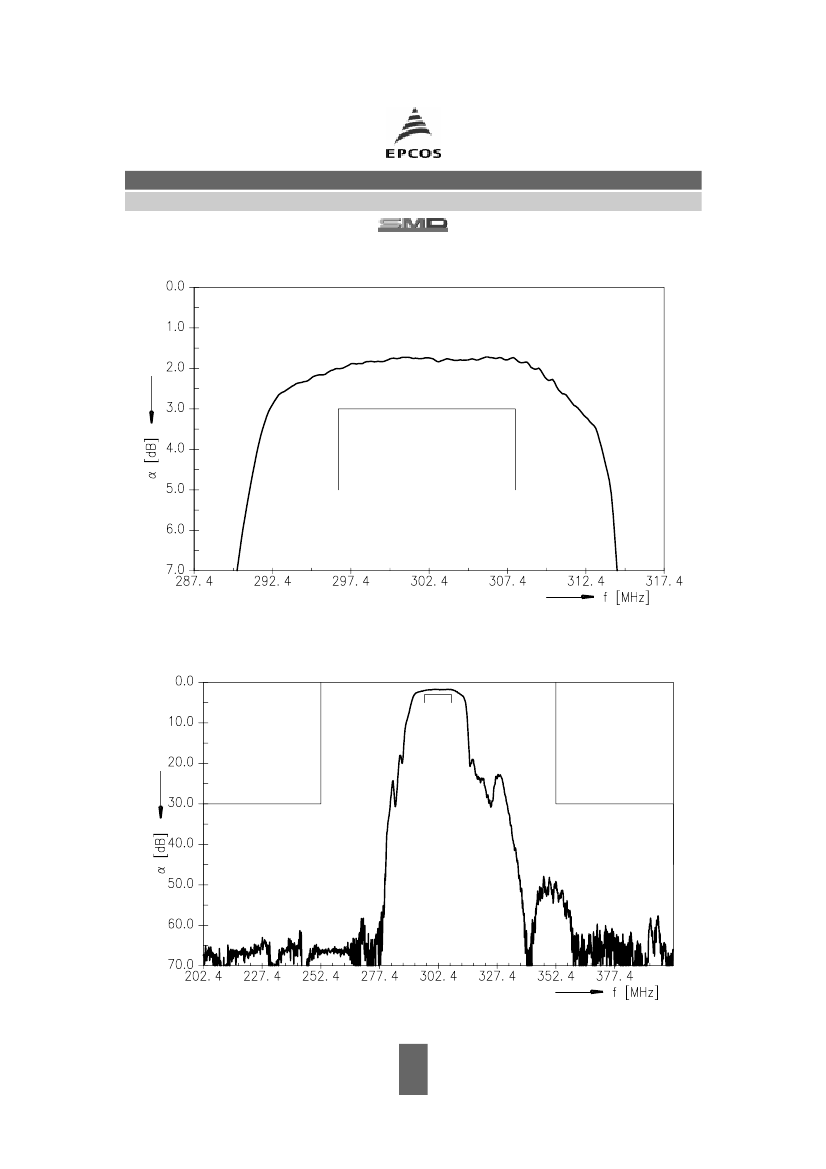

SAW Filters for Infrastructure Systems

Series/Type:

B5105

The following products presented in this data sheet are being withdrawn.

Ordering Code

B39301B5105U310

Substitute Product

Date of Withdrawal

2011-07-15

Deadline Last

Orders

2011-12-31

Last Shipments

2012-03-31

For further information please contact your nearest EPCOS sales office, which will also support you in selecting a

suitable substitute. The addresses of our worldwide sales network are presented at www.epcos.com/sales.
