BPF-EDU0960 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> BPF-EDU0960

BPF-EDU0960: DescriptionBand Pass Filter, 570MHz, CASE HP1156, 18 PIN; CategoryAnalog mixed-signal IC filter; File Size86KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com

Download Datasheet Parametric View All

BPF-EDU0960 Overview

Band Pass Filter, 570MHz, CASE HP1156, 18 PIN

BPF-EDU0960 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
average input power	0.5 W
Center frequency or cutoff frequency (fo/fc)	570 MHz
filter type	BAND PASS FILTER
input resistance	50 OHM
Maximum insertion loss	3 dB
Manufacturer's serial number	BPF-EDU0960
Installation type	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output impedance	50 OHM Ω
voltage standing wave ratio	1.9
Base Number Matches	1

Preview

Download Datasheet

View All

Engineering Development Model

Band Pass Filter

Surface Mount

Important Note

This model has been designed, built and tested in our engineering

department. Performance data represents model capability.

At present it is a non-catalog model. On request, we can supply a

final specification sheet, part number and price/delivery information.

Please click "Back", and then click "Contact Us" for Applications support.

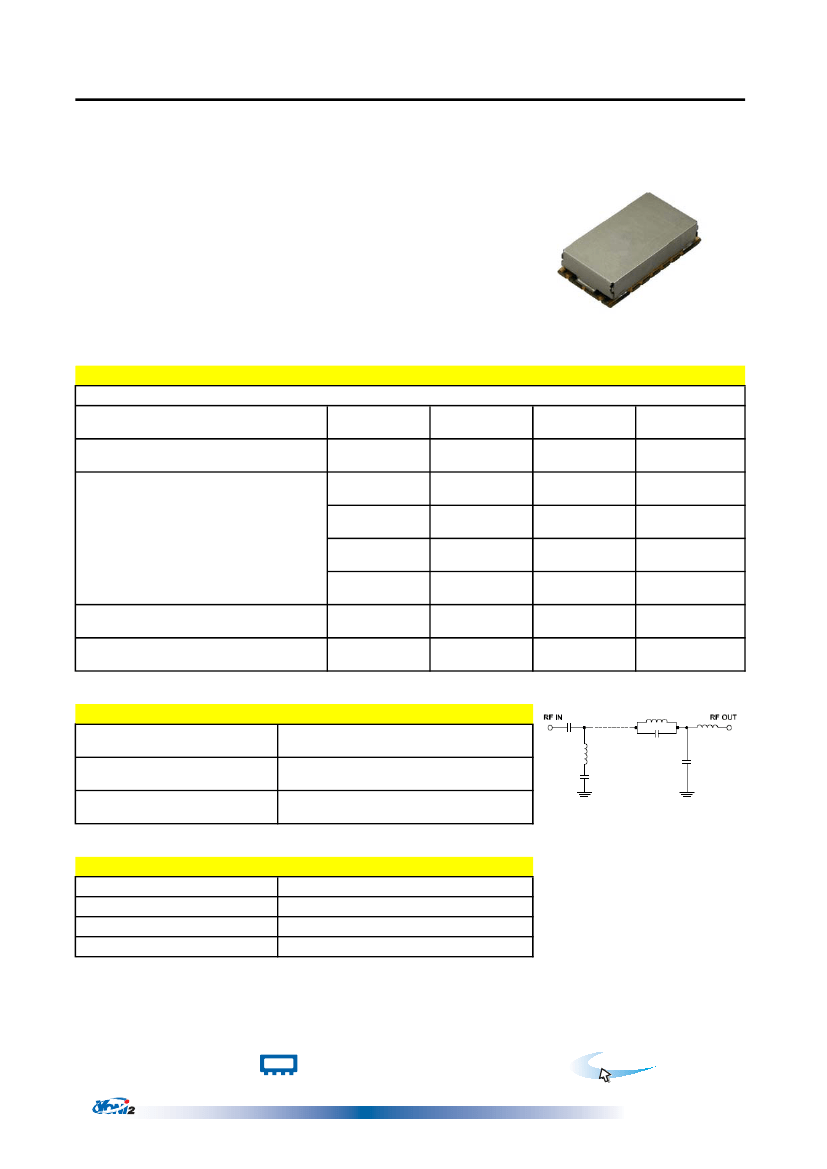

BPF-EDU0960

CASE STYLE :HP1156

ELECTRICAL SPECIFICATIONS 50Ω @ +25°C

Parameter

Passband

(Loss < 3 dB)

Centre frequency

Low Band (Loss > 40 dB)

Low Band (Loss > 20 dB)

High Band (Loss > 20 dB)

High Band (Loss > 40 dB)

Passband VSWR

Stopband VSWR

300

800

835

1.3

Min.

420

570

300

365

835

1600

1.9

Typ.

Max.

720

Units

MHz

(:1)

Functional Schematic

MAXIMUM RATINGS

Operating Temperature

Storage Temperature

RF Power Input

-40°C to 85°C

-55°C to 100°C

0.5 W

PIN CONNECTIONS

Input

Output

Not Connected

Case Ground

9,18

1,3,4,5,6,7,8,10,12,13,14,15,16,17

Mini-Circuits

ISO 9001 ISO 14001

CERTIFIED

RF/IF MICROWAVE COMPONENTS

ALL N

minicircuits.com

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661 For detailed performance specs & shopping online see Mini-Circuits web site

The Design Engineers Search Engine

Provides ACTUAL Data Instantly From MINI-CIRCUITS At:

www.minicircuits.com

REV. X1

BPF-EDU0960

URJ

080630

Page 1 of 1
