B0509GD1: DescriptionDC-DC Regulated Power Supply Module, 2 Output, 1W, Hybrid, DIP-14/6; CategoryPower/power management The power supply circuit; File Size41KB，3 Pages; ManufacturerSENSITRON; Websitehttp://www.sensitron.com/

Download Datasheet Parametric View All

B0509GD1 Overview

DC-DC Regulated Power Supply Module, 2 Output, 1W, Hybrid, DIP-14/6

B0509GD1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	QIP,
Contacts	14/6
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ADDITIONAL OUTPUT OF -9V ALSO AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	5.25 V
Minimum input voltage	4.75 V
Nominal input voltage	5 V
JESD-30 code	R-XDIP-P6
JESD-609 code	e0
length	20.4 mm
Maximum load regulation	0.3%
Humidity sensitivity level	1
Number of functions	1
Output times	2
Number of terminals	6
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output voltage	9.09 V
Minimum output voltage	8.91 V
Nominal output voltage	9 V
Package body material	UNSPECIFIED
encapsulated code	QIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	1 W
Fine-tuning/adjustable output	NO
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

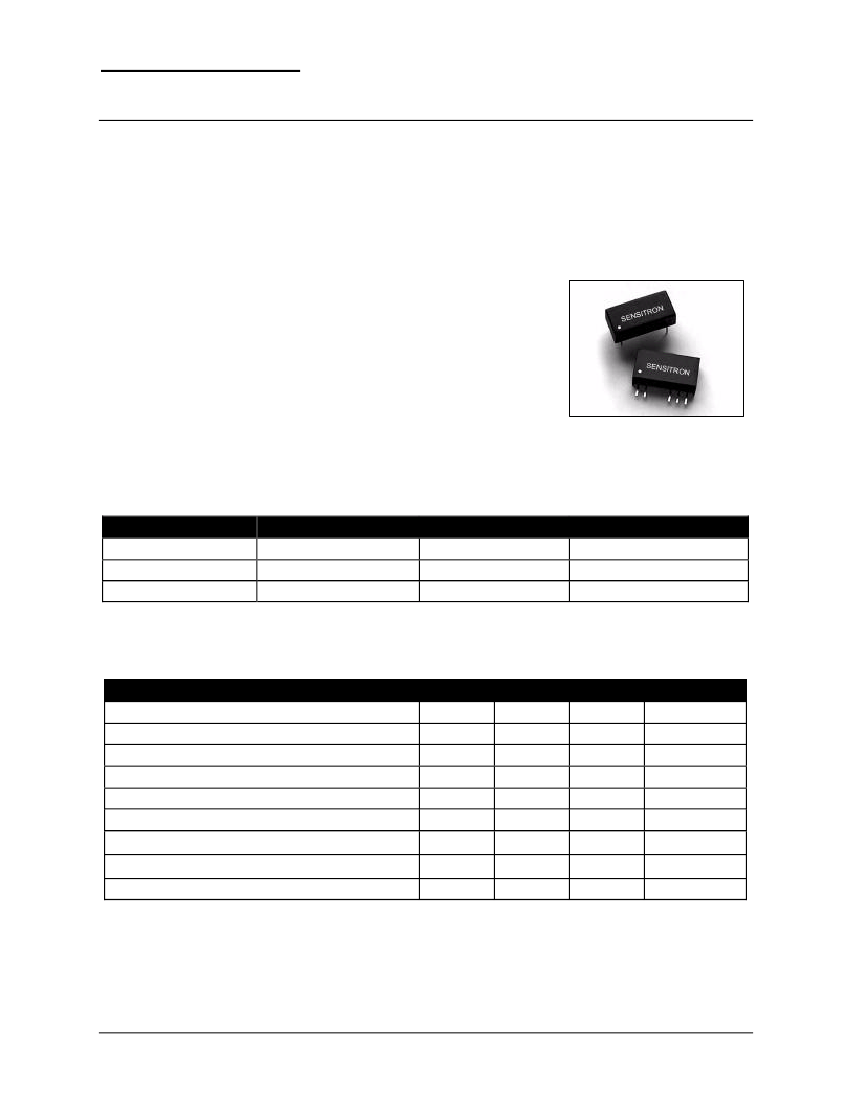

SENSITRON

SEMICONDUCTOR

TECHNICAL DATA

DATA SHEET 1239, REV. -

B(R) - 1W Series

DC-DC Converters

Fixed Input, 3000V Isolation, Regulated, Dual Output

FEATURES:

•

Isolation Voltage:

Isolation Resistance (1):

Short-Circuit Duration:

Case Temperature Rise:

Cooling Method:

Standby Power Dissipation:

Operating Temp.:

Storage Temp.:

Humidity:

Soldering Temp. (2):

Case Material:

Mean Time Before Failure:

3000Vdc

1000MΩ

1 second

Max. 25°C, Typ. 15°C

Free-Air Cooling

1W (100mW)

-40°C ~ + 85°C

-55°C ~ + 125°C

≤

95%

300°C

Non-Flammable Material (UL94-V0)

> 1,000,000 hours (Operating Temp. 25°C)

B(R) Dual Output-1W Series Input Characteristics

Part Number

B05XXGS/D1

B12XXGS/D1

Nominal Input Voltage

5Vdc

12Vdc

Input Voltage Range

4.75~5.25Vdc

11.4~12.6Vdc

Maximum Input Voltage*

5.5Vdc

13.2Vdc

26.4Vdc

B24XXGS/D1

24Vdc

22.8~25.2Vdc

* Voltage above this value may cause permanent damage to the device.

B(R) Dual Output-1W Series Output Characteristics

Parameter

1W Output Power

Line Regulation

Load Regulation

Output Voltage Accuracy

Efficiency at 100% Load

Temperature Coefficient

1W Ripple

1W Noise

Switching Frequency

1.

2.

80

5

50

100

55

60

MIN

TYP

MAX

1

0.25

0.3

±

1

70

0.03

10

100

150

Units

W

%

%/°C

mVp-p

kHz

All specifications at TA=25°C, 75% of the humidity, Nominal input voltage, full output load unless otherwise

specified.

Soldering for 10 seconds at 1.5mm away from the edge.

•

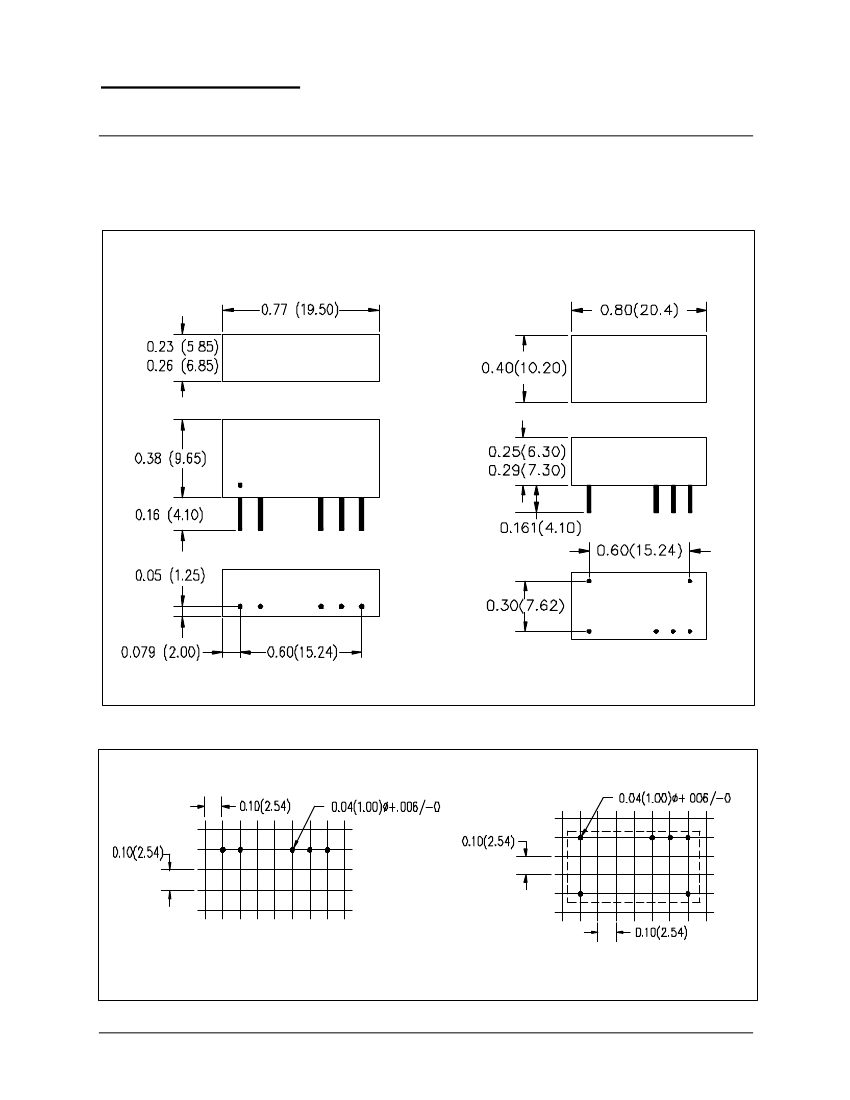

221 West Industry Court

•

Deer Park, NY 11729-4681

•

Phone (631) 586-7600

•

Fax (631) 242-9798

•

World Wide Web Site - http://www.sensitron.com

•

E-Mail Address - sales@sensitron.com

•
