UTC BA6208
LINEAR INTEGRATED CIRCUIT
REVERSIBLE MOTOR DRIVER
DESCRIPTION
The UTC BA6208 is monolithic ICs used for driving
reversible motors. They allow control of reversible motors in
cassette players and other electrical equipment by using
TTL-level logic signals. The ICs contain a logic section,
which controls forward and reverse rotations as well as
forced stop, and an output power section, which can supply
an output current of up to 100mA (typical) according to the
logic control.
SIP-9
FEATURES
*Motor driving power transistors are built in (100mA typically).
*Brake is applied when stopping the motor (when in- puts A
and B are both HIGH level).
*Built-in diode to absorb surge currents.
*Very low standby circuit current when inputs A and B are
both LOW level.
*Wide range of operating supply voltage (4.5 ~ 15.0V)
*Direct control with the TTL logic.
SOP-8
PIN CONFIGURATION
SIP-9
1
NC
2
B
IN
3
A
IN
4
NC
5
GND
6
Vcc
7
B
OUT
8
A
OUT
9
NC
SOP-8
V
CC
B
OUT
GND
A
OUT
1
B
OUT
2
3
4
8
7
6
5
A
IN
GND
NC
B
IN
UTC
UNISONIC TECHNOLOGIES CO., LTD.
1
QW-R109-004,B
UTC BA6208
PARAMETER
Power Supply Voltage
Power Dissipation
Operating Temperature
Storage Temperature
Maximum Output Current
LINEAR INTEGRATED CIRCUIT
SYMBOL
Vcc
Pd
Topr
Tstg
Iout
ABSOLUTE MAXIMUM RATING
(Ta=25°C)
VALUE
18
700 (SIP9) [note 1]
450 (SOP8) [note 2]
-20 to +60
-55 to +125
500
UNIT
V
mW
mW
°C
°C
mA
Note 1: Reduced by 7mW for each increase in Ta of 1°C over 25°C.
Note 2: Reduced by 4.5mW for each increase in Ta of 1°C over 25°C.
RECOMMENDED OPERATING CONDITIONS
(Ta=25°C)
PARAMETER
Power Supply Voltage
SYMBOL
Vcc
MIN
4.5
TYP
MAX
15
UNIT
V
INPUT TRUTH TABLE
3pin (Ain)
H
L
H
L
Note: HIGH level input is 2.0V or more.
LOW level input is 0.8V or less.
2pin (Bin)
L
H
H
L
8pin (Aout)
H
L
L
OPEN
7pin (Bout)
L
H
L
OPEN
ELECTRICAL CHARACTERISTICS
(Ta=25°C, V
CC
=9V, unless otherwise specified)
PARAMETER
Output Current
Output Saturation Voltage
Input High Level Voltage
Input Low Level Voltage
Standby Supply Current
Input High Level Current
SYMBOL
I
O
V
CE
V
IH
V
IL
I
ST
I
IH
TEST CONDITIONS
Io=100mA
MIN
200
TYP
MAX
1.6
UNIT
mA
V
V
V
mA
µA
2.0
0.8
When inputs A and B are
both Low level
V
IH
=4.5V
400
0.4
Note: A diode that absorbs at least 500mA is built in to give protection against surge currents with a pulse width of
10 ms and a duty ratio of 10% or less.
UTC
UNISONIC TECHNOLOGIES CO., LTD.
2
QW-R109-004,B
UTC BA6208

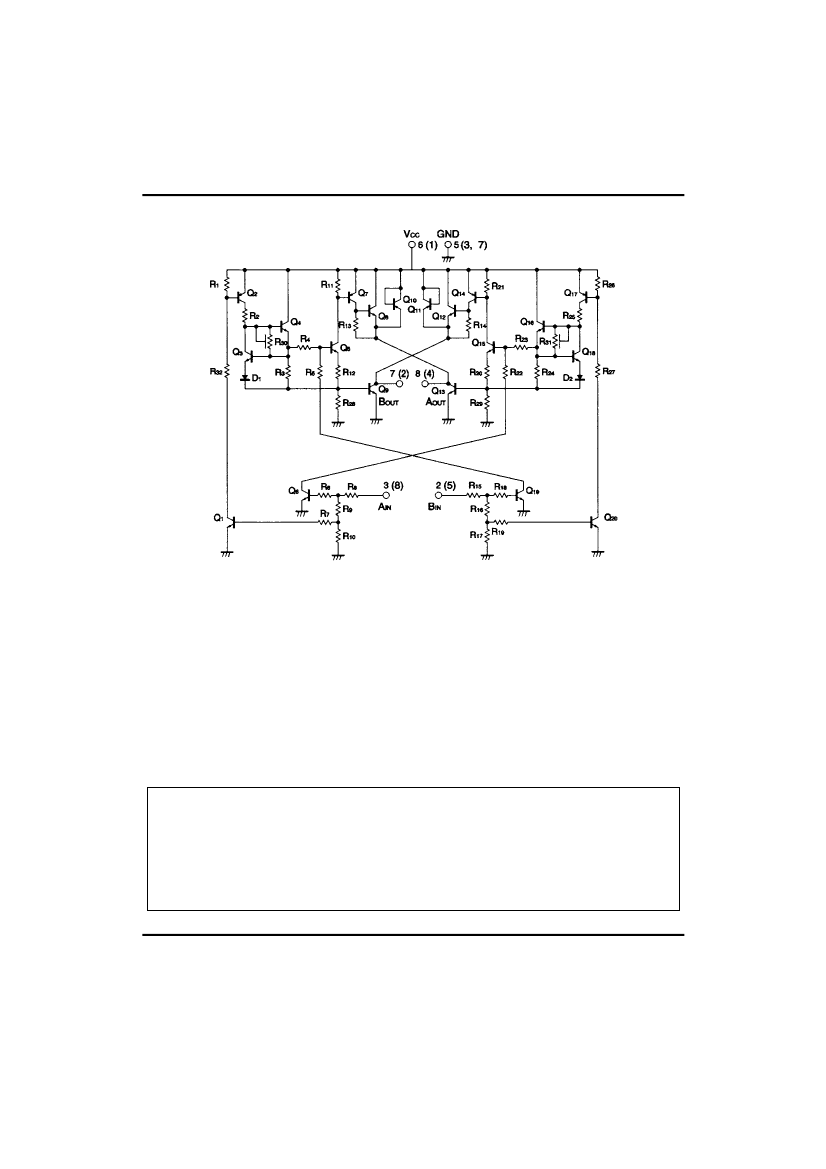

TEST CIRCUIT
LINEAR INTEGRATED CIRCUIT
Note: Figures in parentheses are for SOP-8.
UTC assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or
other parameters) listed in products specifications of any and all UTC products described or contained
herein. UTC products are not designed for use in life support appliances, devices or systems where
malfunction of these products can be reasonably expected to result in personal injury. Reproduction in
whole or in part is prohibited without the prior written consent of the copyright owner. The information
presented in this document does not form part of any quotation or contract, is believed to be accurate
and reliable and may be changed without notice.
UTC
UNISONIC TECHNOLOGIES CO., LTD.
3
QW-R109-004,B
