B1209GD2U datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> B1209GD2U

B1209GD2U: DescriptionDC-DC Unregulated Power Supply Module, 2 Output, 2W, Hybrid, DIP-14/6; CategoryPower/power management The power supply circuit; File Size41KB，3 Pages; ManufacturerSENSITRON; Websitehttp://www.sensitron.com/

Download Datasheet Parametric View All

B1209GD2U Overview

DC-DC Unregulated Power Supply Module, 2 Output, 2W, Hybrid, DIP-14/6

B1209GD2U Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP, DIP14,.3
Contacts	14/6
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ADDITIONAL -9V OUTPUT AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC UNREGULATED POWER SUPPLY MODULE
Maximum input voltage	13.2 V
Minimum input voltage	10.8 V
Nominal input voltage	12 V
JESD-30 code	R-XDMA-P6
JESD-609 code	e0
length	20.4 mm
Humidity sensitivity level	1
Number of functions	1
Output times	2
Number of terminals	6
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Nominal output voltage	9 V
Package body material	UNSPECIFIED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	6.3 mm
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	2 W
Fine-tuning/adjustable output	NO
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

SENSITRON

SEMICONDUCTOR

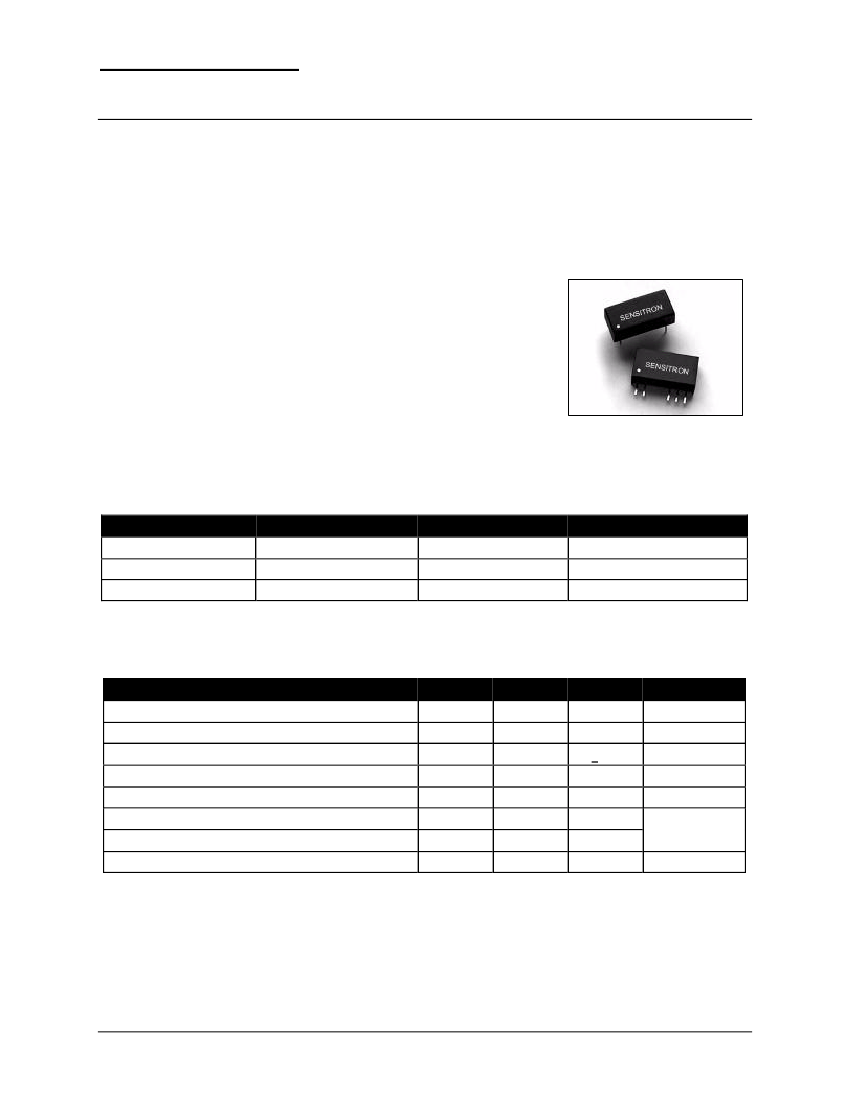

TECHNICAL DATA

DATA SHEET 1102, REV. -

B - 1W/2W Series

DC-DC Converters

Fixed Input, 3000V Isolation, Unregulated, Dual Output

FEATURES:

•

Isolation Voltage:

Isolation Resistance (1):

Short-Circuit Duration:

Case Temperature Rise:

Cooling Method:

Standby Power Dissipation:

Operating Temp.:

Storage Temp.:

Humidity:

Soldering Temp. (2):

Case Material:

Mean Time Before Failure:

3000Vdc

1000MΩ

1 second

Max. 25°C, Typ. 15°C

Free-Air Cooling

1W (100mW), 2W (200mW)

-40°C ~ + 85°C

-55°C ~ + 125°C

≤

95%

300°C

Non-Flammable Material (UL94-V0)

> 1,000,000 hours (Operating Temp. 25°C)

B Dual Output-1W/2W Series Input Characteristics

Part Number

B05XXGS/D1/2U

B12XXGS/D1/2U

Nominal Input Voltage

5Vdc

12Vdc

Input Voltage Range

4.5~5.5Vdc

10.8~13.2Vdc

Maximum Input Voltage*

7Vdc

15Vdc

28Vdc

B24XXGS/D1/2U

24Vdc

21.6~26.4Vdc

* Voltage above this value may cause permanent damage to the device.

B Dual Output-1W/2W Series Output Characteristics

Parameter

1W Output Power

2W Output Power

Line Regulation

Efficiency at 100% Load

Temperature Coefficient

1W Ripple and Noise

2W Ripple and Noise

Switching Frequency

100

MIN

0.25

0.5

TYP

MAX

+ 1.2

0.03

150

200

Units

%/°C

mVp-p

kHz

All specifications at TA=25°C, 75% of the humidity, Nominal input voltage, full output load unless otherwise

specified.

Soldering for 10 seconds at 1.5mm away from the edge.

•

221 West Industry Court

•

Deer Park, NY 11729-4681

•

Phone (631) 586-7600

•

Fax (631) 242-9798

•

World Wide Web Site - http://www.sensitron.com

•

E-Mail Address - sales@sensitron.com

•
