Part Number

Search

B-15/13-622-TDPM-SST-60

Description
Transceiver, 1480nm Min, 1580nm Max, 622Mbps(Tx), 622Mbps(Rx), ST Connector, Through Hole Mount
CategoryWireless rf/communication    Optical fiber
File Size906KB,6 Pages
ManufacturerSource Photonics
Download Datasheet Parametric Compare View All

B-15/13-622-TDPM-SST-60 Overview

Transceiver, 1480nm Min, 1580nm Max, 622Mbps(Tx), 622Mbps(Rx), ST Connector, Through Hole Mount

B-15/13-622-TDPM-SST-60 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Reach Compliance Codeunknown
Other featuresIT ALSO OPERATES FROM 1560NM TO 1360NM

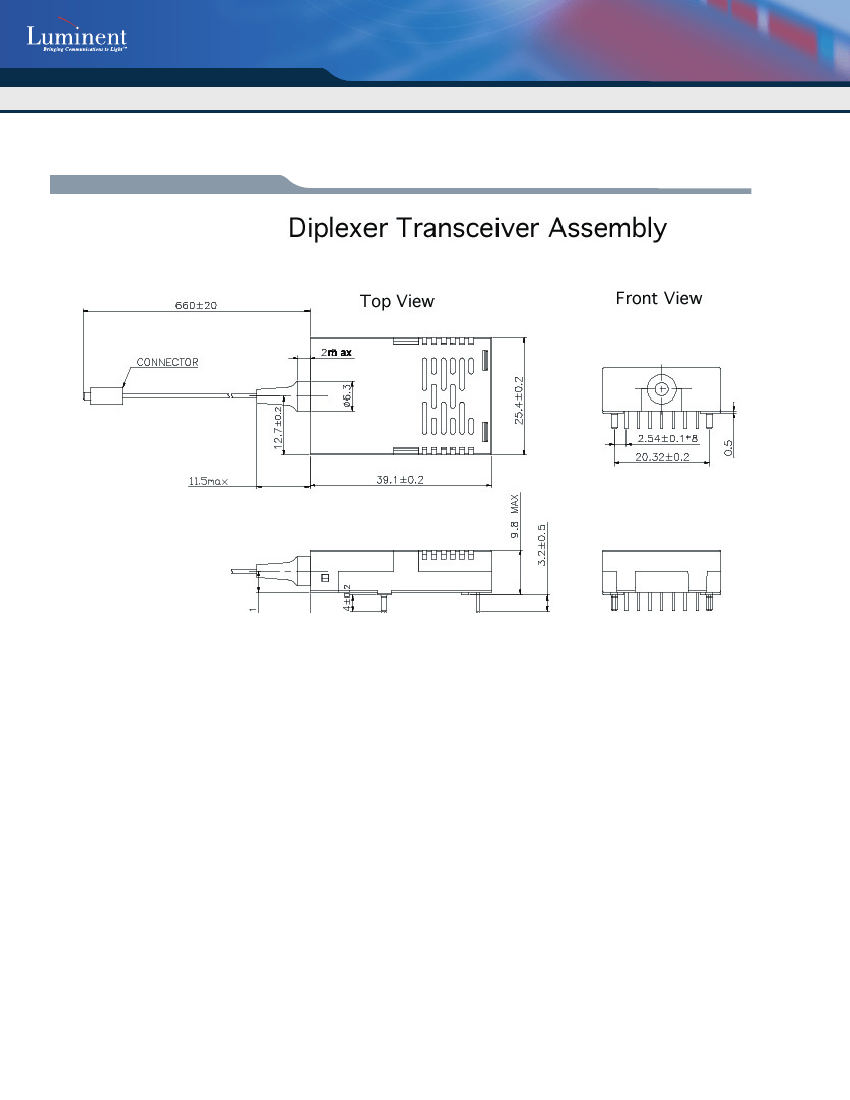

body width25.4 mm
body height9.8 mm
Body length or diameter39.1 mm
Built-in featuresAMPLIFIER
Communication standardsGR-468, OC-12, SDH, SONET, STM-4
Connection TypeST CONNECTOR
Data rate (receive)622 Mbps
Data rate (send)622 Mbps
Emitter/Detector TypeLASER DIODE
Fiber optic equipment typesTRANSCEIVER
Fiber typeSMF
Installation featuresTHROUGH HOLE MOUNT
Maximum operating temperature70 °C
Minimum operating temperature
Maximum operating wavelength1580 nm
Minimum operating wavelength1480 nm
Nominal operating wavelength1530 nm
Nominal optical power output0.07 mW
minimum return loss14 dB
Sensitivity-28 dBm
Maximum supply voltage5.25 V
Minimum supply voltage4.75 V
Nominal supply voltage5 V
surface mountNO
Base Number Matches1
622 Mbps Bi-directional Single Fiber Transceiver
B-15/13-622-TDPM-Sxx-60
Features
• Coaxial single mode single fiber package with optional
SC/FC/ST/MU connector
• Wavelength Tx 1530 nm/ Rx 1310nm
• SONET OC-12 SDH STM-4
• Single +5V Power Supply
• LVPECL Differential Inputs and Outputs
• Wave Solderable and Aqueous washable
• Class 1 Laser Int. Safety Standad IEC 825 Compliant
• Uncooled laser diode with MQW structure
• Complies with Telcordia (Bellcore) GR-468-CORE
• Temperature Range: 0 to 70ºC
• Optical Isolation >30 dB
• Cross Talk < -33 dB
• Optical Return Loss > 14dB
Absolute Maximum Rating
Parameter
Power Supply Voltage
Input Voltage
Output Current
Soldering Temperature
Operating Temperature
Storage Temperature
I
out
-
Symbol
V
cc
Min.
0
GND
-
-
0
-40
Max.
6
V
cc
30
260
70
85
Unit
V
V
mA
ºC
ºC
ºC
Note
10 seconds on leads only
T
opr
T
stg
Recommended Operating Condition
Parameter
Power Supply Voltage
Operating Temperature
Data Rate
Symbol
V
cc
T
opr
-
Min.
4.75
0
-
Typ.
5
-
622
Max.
5.25
70
-
Unit
V
ºC
Mbps
Transmitter Specifications, (0ºC<T
opr
<70ºC, 4.75V<V
CC
<5.25V)
Parameter
Optical
Optical Transmit Power
Output center Wavelength
Output Spectrum Width
Side Mode Suppression Ratio
Extinction Ratio
Output Eye
Optical Rise Time
Optical Fall Time
Optical Isolation
Optical Return Loss
Relative Intensity Noise
Total Jitter
t
r
t
f
-
-
Symbol
Min
Typical
Max
Unit
Notes
Output power is coupled into a 9/125 µm single
mode fiber
20 dB, width
CW, P
o
=5mW (0 to 70ºC)
P
o
λ
Δλ
Sr
ER
-15
1480
-
30
8.2
-
-
30
14
-
-
-
1530
-
35
-
-
-
-
-
-
-
-8
1580
1
-
-
1.2
1.2
-
-
-120
0.55
dBm
nm
dB
dB
dB
ns
ns
dB
dB
dB/Hz
ns
Compliant with Bellcore TR-NWT-000253 and ITU recommendation G.957
10% to 90% Values
10% to 90% Values
Tx:1530 nm/ Rx:1310 nm
RIN
TJ
Measured with 2
23
-1 PRBS with 72 ones and 72
zeros.
1
