Datasheet> All Categories > Power/power management> The power supply circuit> B0512HM1U
PDF
Preview

B0512HM1U

Description
DC-DC Unregulated Power Supply Module, 1 Output, 1W, Hybrid,
CategoryPower/power management    The power supply circuit
File Size26KB，3 Pages
ManufacturerSENSITRON
Websitehttp://www.sensitron.com/
Download Datasheet Parametric Compare View All

B0512HM1U Overview

DC-DC Unregulated Power Supply Module, 1 Output, 1W, Hybrid,

B0512HM1U Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
package instruction,
Reach Compliance Codecompliant
ECCN codeEAR99
Analog Integrated Circuits - Other TypesDC-DC UNREGULATED POWER SUPPLY MODULE
Maximum input voltage5.5 V
Minimum input voltage4.5 V
Nominal input voltage5 V
JESD-30 codeR-XSMA-P4
Maximum load regulation9.5%
Humidity sensitivity level1
Number of functions1
Output times1
Number of terminals4
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Nominal output voltage12 V
Package body materialUNSPECIFIED
Package shapeRECTANGULAR
Package formMICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
surface mountNO
technologyHYBRID
Temperature levelINDUSTRIAL
Terminal formPIN/PEG
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
Maximum total power output1 W
Fine-tuning/adjustable outputNO
Base Number Matches1

Preview

Download Datasheet
SENSITRON
SEMICONDUCTOR
TECHNICAL DATA
DATA SHEET 2056, REV. -
B – 1W Series
DC-DC Converters
Fixed Input, 3000V Isolation, Unregulated, Single/Dual Output, Micro-Package
FEATURES:
•
•
•
•
•
•
•
•
•
•
•
Isolation Voltage:
Isolation Resistance (1):
Short-Circuit Duration:
Case Temperature Rise:
Cooling Method:
Operating Temp.:
Storage Temp.:
Humidity:
Soldering Temp. (2):
Case Material:
Mean Time Before Failure:
3000Vdc
1000MΩ
1 second
Max. 25°C, Typ. 15°C
Free-Air Cooling
-40°C ~ + 85°C
-55°C ~ + 125°C
≤
95%
300°C
Non-Flammable Material (UL94-V0)
> 1,000,000 hours (Operating Temp. 25°C)
B Single/Dual Micro Package-1W Series Input Characteristics
Part Number
B05XXH/GM1U
Nominal Input Voltage
5Vdc
Input Voltage Range
4.5~5.5Vdc
Maximum Input Voltage*
7Vdc
15Vdc
B12XXH/GM1U
12Vdc
10.8~13.2Vdc
* Voltage above this value may cause permanent damage to the device.
B Single/Dual Micro Package-1W Series Characteristics
Parameter
Output Power
Line Regulation
Efficiency at 100% Load
Temperature Coefficient
5V Output
Load Regulation
9V Output
12V Output
15V Output
5V Output
Ripple and Noise
9V Output
12V Output
15V Output
Switching Frequency
1.
2.
80
14
9
7.5
7.0
85
60
50
40
100
65
1.0
75
85
0.03
15
10
9.5
8.5
110
75
65
55
200
kHz
mVp-p
MIN
TYP
MAX
1
Units
W
%
%
%/°C
%
All specifications at TA=25°C, 75% of the humidity, Nominal input voltage, full output load unless otherwise
specified.
Soldering for 10 seconds at 1.5mm away from the edge.
•

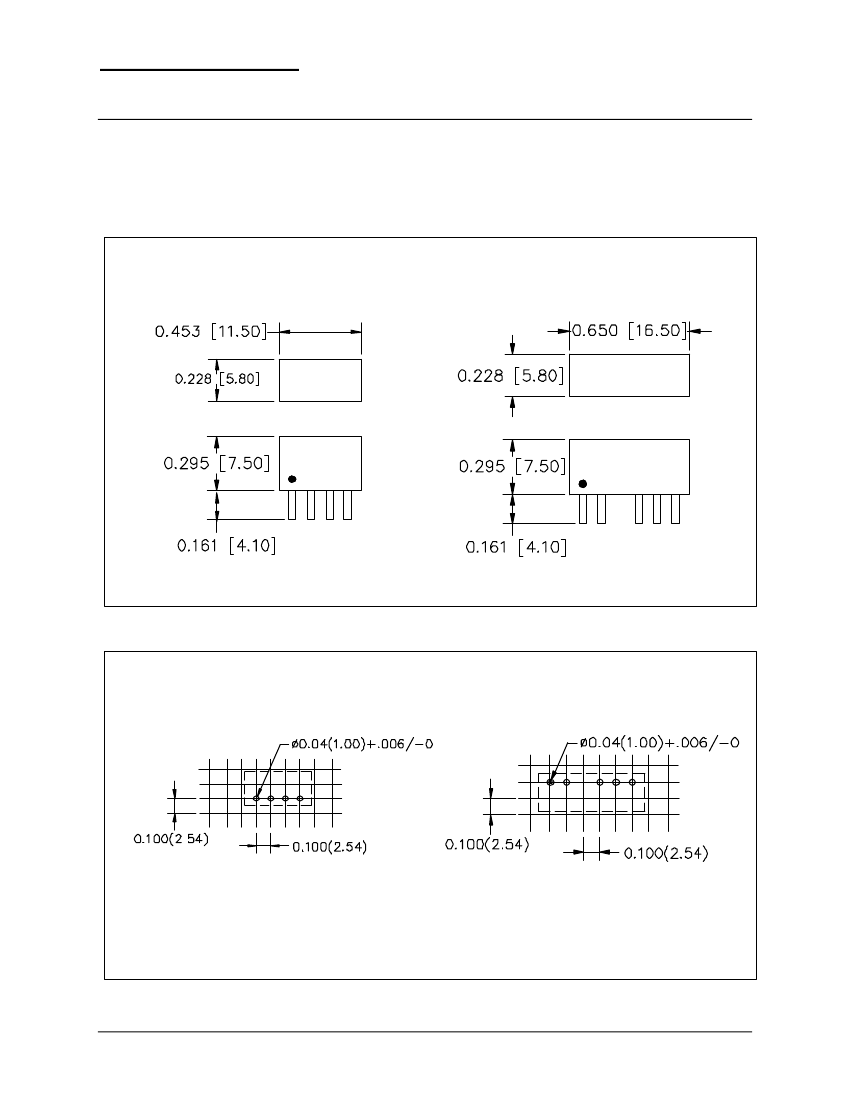

221 West Industry Court
•
Deer Park, NY 11729-4681
•
Phone (631) 586-7600
•
Fax (631) 242-9798
•
•
World Wide Web Site - http://www.sensitron.com
•
E-Mail Address - sales@sensitron.com
•
