B-15/13-622-TDPM3-SST-60-G5 datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Optical fiber> B-15/13-622-TDPM3-SST-60-G5

B-15/13-622-TDPM3-SST-60-G5: DescriptionTransceiver, 1480nm Min, 1580nm Max, 622Mbps(Tx), 622Mbps(Rx), ST Connector, Through Hole Mount; CategoryWireless rf/communication Optical fiber; File Size599KB，6 Pages; ManufacturerSource Photonics

Download Datasheet Parametric Compare View All

B-15/13-622-TDPM3-SST-60-G5 Overview

Transceiver, 1480nm Min, 1580nm Max, 622Mbps(Tx), 622Mbps(Rx), ST Connector, Through Hole Mount

B-15/13-622-TDPM3-SST-60-G5 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
Other features	IT ALSO OPERATES FROM 1560NM TO 1360NM

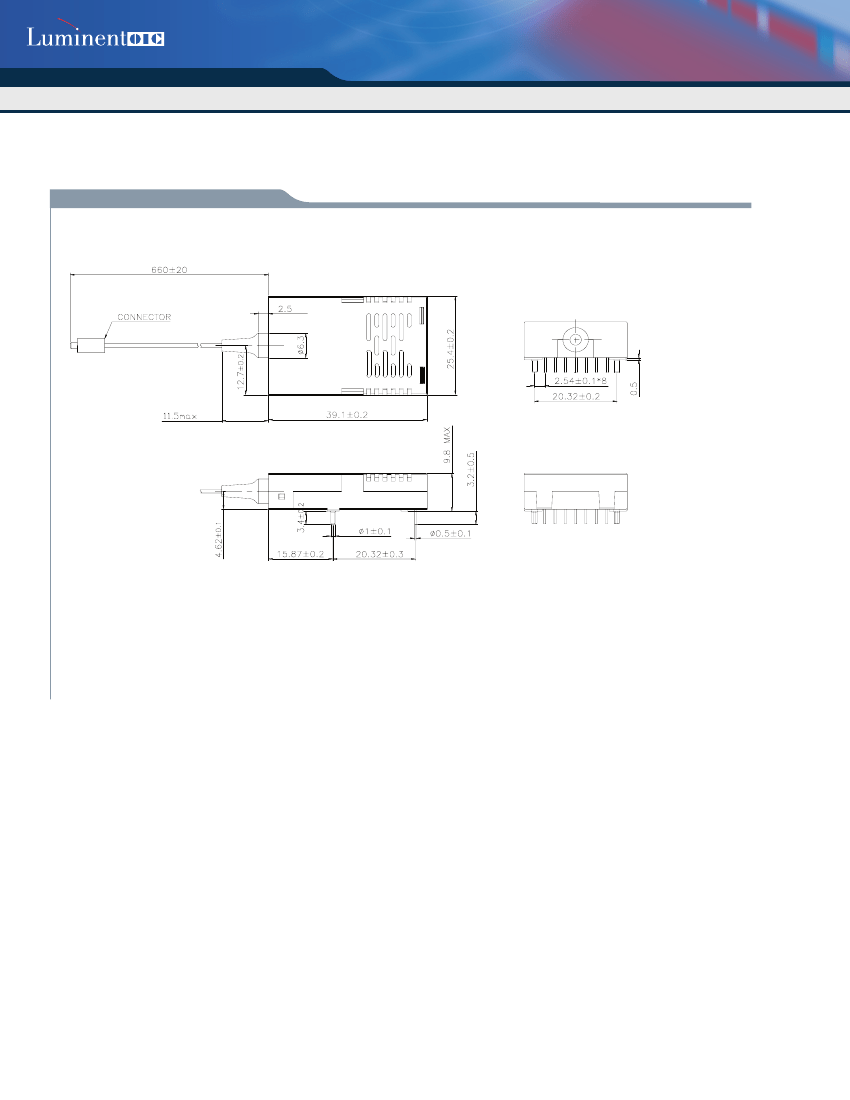

body width	25.4 mm
body height	9.8 mm
Body length or diameter	39.1 mm
Built-in features	AMPLIFIER
Communication standards	GR-468, OC-12, SDH, SONET, STM-4
Connection Type	ST CONNECTOR
Data rate (receive)	622 Mbps
Data rate (send)	622 Mbps
Emitter/Detector Type	LASER DIODE
Fiber optic equipment types	TRANSCEIVER
Fiber type	SMF
Installation features	THROUGH HOLE MOUNT
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum operating wavelength	1580 nm
Minimum operating wavelength	1480 nm
Nominal operating wavelength	1530 nm
Nominal optical power output	0.07 mW
minimum return loss	14 dB
Sensitivity	-28 dBm
Maximum supply voltage	3.5 V
Minimum supply voltage	3.1 V
Nominal supply voltage	3.3 V
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

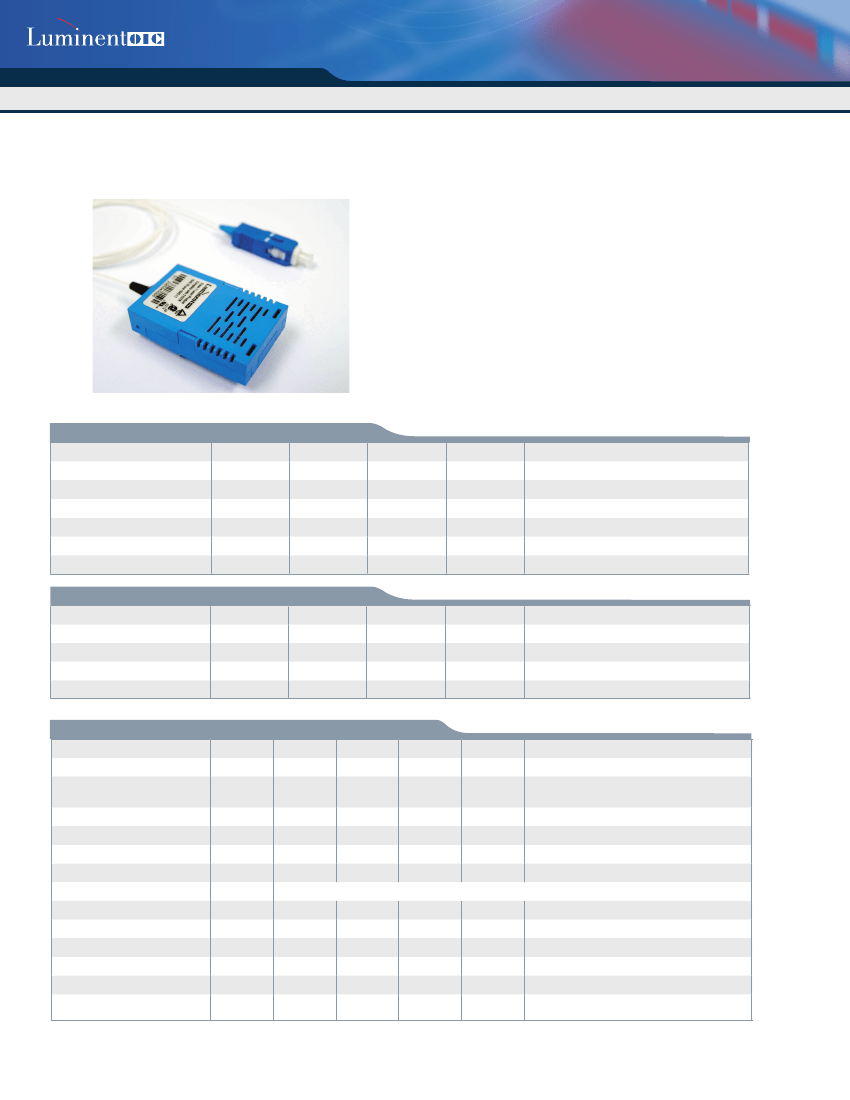

622 Mbps Bi-directional Single Fiber Transceiver

B-15/13-622-TDPM(3)-Sxx-60

Features

• Coaxial single mode single ﬁber package with optional

SC/FC/ST connector

• Wavelength Tx 1530 nm/ Rx 1310nm

• SONET OC-12 SDH STM-4

• Single +3.3V/+5V Power Supply

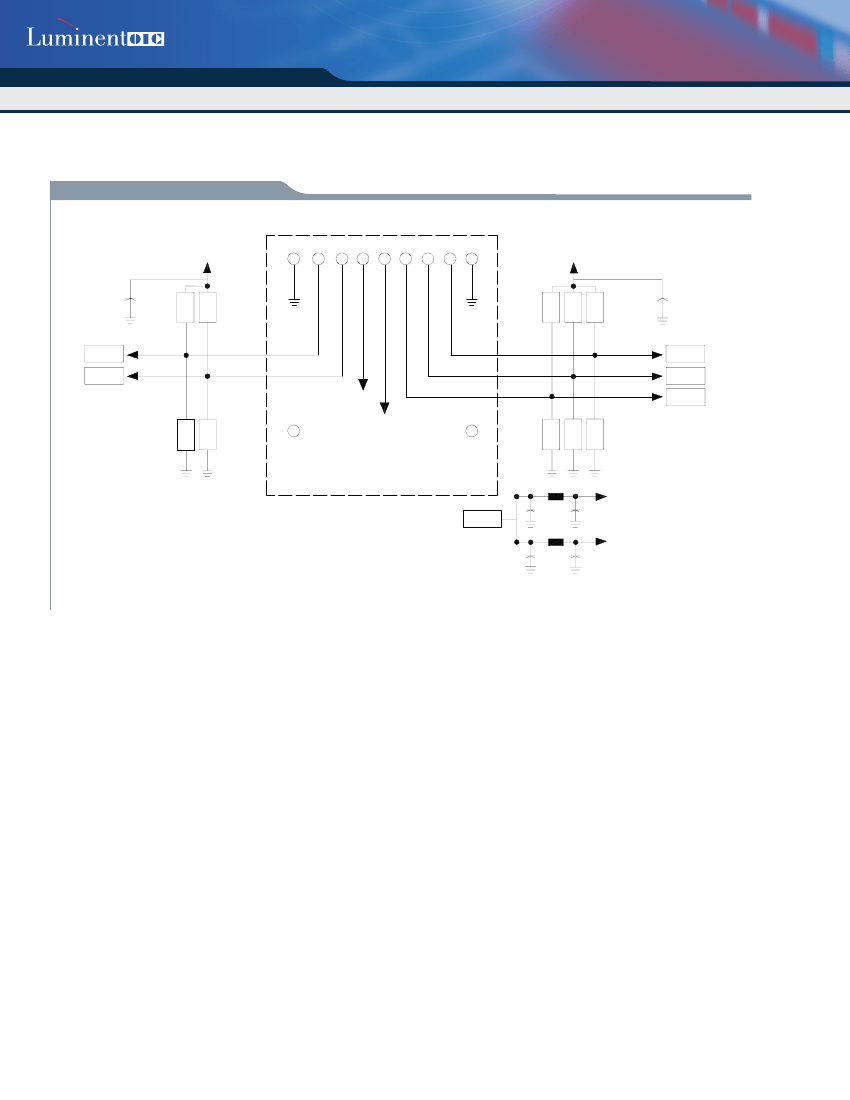

• LVPECL/PECL Differential Inputs and Outputs

• Wave Solderable and Aqueous washable

• Class 1 Laser Int. Safety Standad IEC 825 Compliant

• Uncooled laser diode with MQW structure DFB Laser

• Complies with Telcordia (Bellcore) GR-468-CORE

• Temperature Range: 0 to 70ºC

• Optical Isolation >30 dB

• Cross Talk < -33 dB

• Optical Return Loss > 14dB

• RoHS compliance available

Absolute Maximum Rating

Parameter

Power Supply Voltage (3.3V)

Power Supply Voltage (5V)

Output Current

Soldering Temperature

Operating Temperature

Storage Temperature

Symbol

out

Min.

-40

Max.

3.6

260

Unit

ºC

Note

B-15/13-622-TDPM3-Sxx-60

B-15/13-622-TDPM-Sxx-60

10 seconds on leads only

opr

stg

Recommended Operating Condition

Parameter

Power Supply Voltage (3.3V)

Power Supply Voltage (5V)

Operating Temperature (Case)

Data Rate

Transmitter Speciﬁcations

Parameter

Optical

Optical Transmit Power

Output center Wavelength

Output Spectrum Width

Side Mode Suppression Ratio

Extinction Ratio

Output Eye

Optical Rise Time

Optical Fall Time

Optical Isolation

Optical Return Loss

Relative Intensity Noise

Total Jitter

Symbol

opr

Min.

3.1

4.75

Typ.

3.3

622

Max.

3.5

5.25

Unit

ºC

Mbps

Symbol

Min

Typical

Max

Unit

Notes

Output power is coupled into a 9/125 µm

single mode ﬁber

20 dB, width

CW, P

=5mW (0 to 70ºC)

∆λ

-15

1480

8.2

1530

-8

1580

1.2

-120

0.55

dBm

dB/Hz

Compliant with Bellcore TR-NWT-000253 and ITU recommendation G.957

10% to 90% Values

Tx:1530 nm/ Rx:1310 nm

RIN

Measured with 2

-1 PRBS with 72 ones and

72 zeros.

LUMNDS578-Jan2108

Rev. A.1

LUMINENTOIC.COM

20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486

9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
