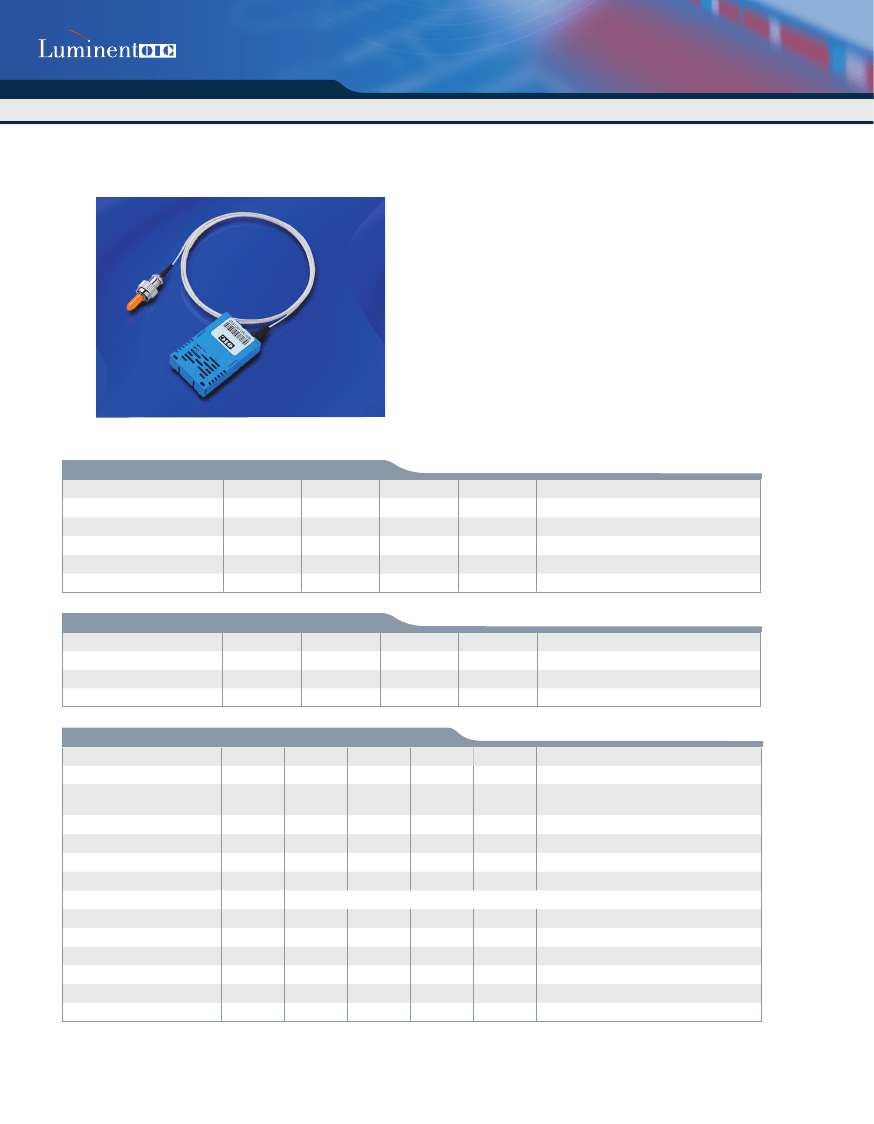

1.25 Gbps Bi-directional Single Fiber Transceiver
B-15/13-1250(C)-TDPM3-SXX-60
Features
• Coaxial single mode single fiber package with optional
SC/FC/ST/MU connector
• Wavelength Tx 1550 nm/ Rx 1310nm
• Compliant with IEEE 802.3z Gigabit Ethernet
• Single +3.3V Power Supply
• LVPECL Differential Inputs and Outputs
• LVPECL SD Output (B-15/13-1250-TDPM3-SXX-60)
• LVTTL SD Output (B-15/13-1250C-TDPM3-SXX-60)
• Wave Solderable and Aqueous washable
• Class 1 Laser Int. Safety Standad IEC 825 Compliant
• Uncooled laser diode with MQW structure
• Complies with Telcordia (Bellcore) GR-468-CORE
• Temperature Range: 0 to 70ºC
• Optical Isolation >30 dB
• Cross Talk < -33 dB
• Optical Return Loss > 14dB
Absolute Maximum Rating
Parameter
Power Supply Voltage
Output Current
Soldering Temperature
Operating Temperature
Storage Temperature
Symbol
V
cc
I
out
-
Min.
0
-
-
0
-40
Max.
3.6
30
260
70
85
Unit
V
mA
ºC
ºC
ºC
Note
10 seconds on leads only
T
opr
T
stg
Recommended Operating Condition
Parameter
Power Supply Voltage
Operating Temperature (Case)
Data Rate
Transmitter Specifications
Parameter
Optical
Optical Transmit Power
Output center Wavelength
Output Spectrum Width
Side Mode Suppression Ratio
Extinction Ratio
Output Eye
Optical Rise Time
Optical Fall Time
Optical Isolation
Optical Return Loss
Relative Intensity Noise
Total Jitter
tr
tf
-
-
Symbol
V
cc
T
opr
-
Min.
3.1
0
-
Typ.
3.3
-
1250
Max.
3.5
70
-
Unit
V
ºC
Mbps
Symbol
Min
Typical
Max
Unit
Notes
Output power is coupled into a 9/125 µm
single mode fiber
-20dB
CW
1
P
0
=5mW
P
o
λ
∆λ
Sr
ER
-10
1500
-
30
9
-
-
30
14
-
-
-
1550
-
35
-
-
-
-
-
-
-
-4
1600
1
1
-
0.26
0.26
-
-
-120
0.27
dBm
nm
nm
dB
dB
ns
ns
dB
dB
dB/Hz
ns
Compliant with IEEE 802.3z
20% to 80% Values
20% to 80% Values
Tx:1550 nm/ Rx:1310 nm
RIN
TJ
Measured with 2
7
-1
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
1
LUMNDS574-AUG1804
rev. A.0
1.25 Gbps Bi-directional Single Fiber Transceiver
B-15/13-1250(C)-TDPM3-SXX-60
Transmitter Specifications
Parameter
Electrical
Power Supply Current
Data Input Current-Low
Data Input Current-High
Differential Input Voltage
Data Input Voltage-Low
Data Input Voltage-High
I
CC
I
IL
I
IH
V
IH
-V
IL
V
IL
-V
CC
V
IH
-V
CC
-
-350
-
300
-2.0
-1.1
-
-
-
-
-
-
150
-
350
-
-1.58
-0.74
mA
µA
µA
mV
V
V
These inputs are compatible with 10K,
10KH and 100K ECL and PECL inputs
Maximum current is specified at Vcc=
Maximum @ maximum temperature
Symbol
Min
Typical
Max
Unit
Notes
Receiver Specifications
Parameter
Optical
Sensitivity
Maximum Input Power
Signal Detect-Asserted
Signal Detect-Deasserted
Signal Detect-Hysteresis
Cross Talk
Wavelength of Operation
-
-
P
in
Pa
Pd
-
-3
-
-35
-
-
1260
-
-
-
-
3.0
-
-
-22
-
-22
-
-
-33
1360
dBm
dBm
dBm
dBm
dB
dB
nm
Measured on transition: low to high
Measured on transition: high to low
Measured with 2
7
-1 PRBS, BER 10
-12
Symbol
Min
Typical
Max
Unit
Notes
Receiver Specifications
Parameter
Electrical
Power Supply Current
Data Output Voltage-Low
Data Output Voltage-High
Signal Detect Output Voltage-Low
Signal Detect Output Voltage-High
Signal Detect Output Voltage-Low
Signal Detect Output Voltage-High
I
CC
V
OL
-V
cc
V
OH
-
V
cc
V
SDL-
V
cc
V
SDH-
V
cc
V
SDL
V
SDH
-
-1.9
-1.1
-1.9
-1.1
-
2
-
-
-
-
-
-
-
100
-1.6
-0.8
-1.6
-0.8
0.5
-
mA
V
V
V
V
V
V
The current excludes the output load current
These outputs are compatible with 10K,
10KH and 100KECL and PECL outputs
B-15/13-1250-TDPM3-SXX-60
B-15/13-1250C-TDPM3-SXX-60
Symbol
Min
Typical
Max
Unit
Note
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
2
LUMNDS574-AUG1804
rev. A.0
1.25 Gbps Bi-directional Single Fiber Transceiver
B-15/13-1250(C)-TDPM3-SXX-60
Connection Diagram
1. (Rx GND)
2. (Rx +)
3. (Rx-)
4. (SD)
5. (Rx Vcc)
6. (Tx Vcc)
7. (TX-)
8. (TX+)
9. (Tx GND)
Receiver Signal Ground
NC
Receiver Data Out
Receiver Data Out Bar
Signal Detect
Receiver Power Supply
Transmitter Power Supply
Transmitter Data In Bar
Transmitter Data in
Transmitter Signal Ground
Top View
NC
PIN
1
2
3
4
5
6
7
8
Warnings
9
Symbol
RxGND
RD+
RD-
SD
RxVcc
TxVcc
TD-
TD+
TxGND
Notes
Directly connect this pin to the receiver ground plane
See recommended circuit schematic
See recommended circuit schematic
Active high on this indicates a received optical signal
+3.3V dc power for the receiver section
+3.3V dc power for the transmitter section
See recommended circuit schematic
See recommended circuit schematic
Directly connect this pin to the transmitter ground plane
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
3
LUMNDS574-AUG1804
rev. A.0
1.25 Gbps Bi-directional Single Fiber Transceiver
B-15/13-1250(C)-TDPM3-SXX-60

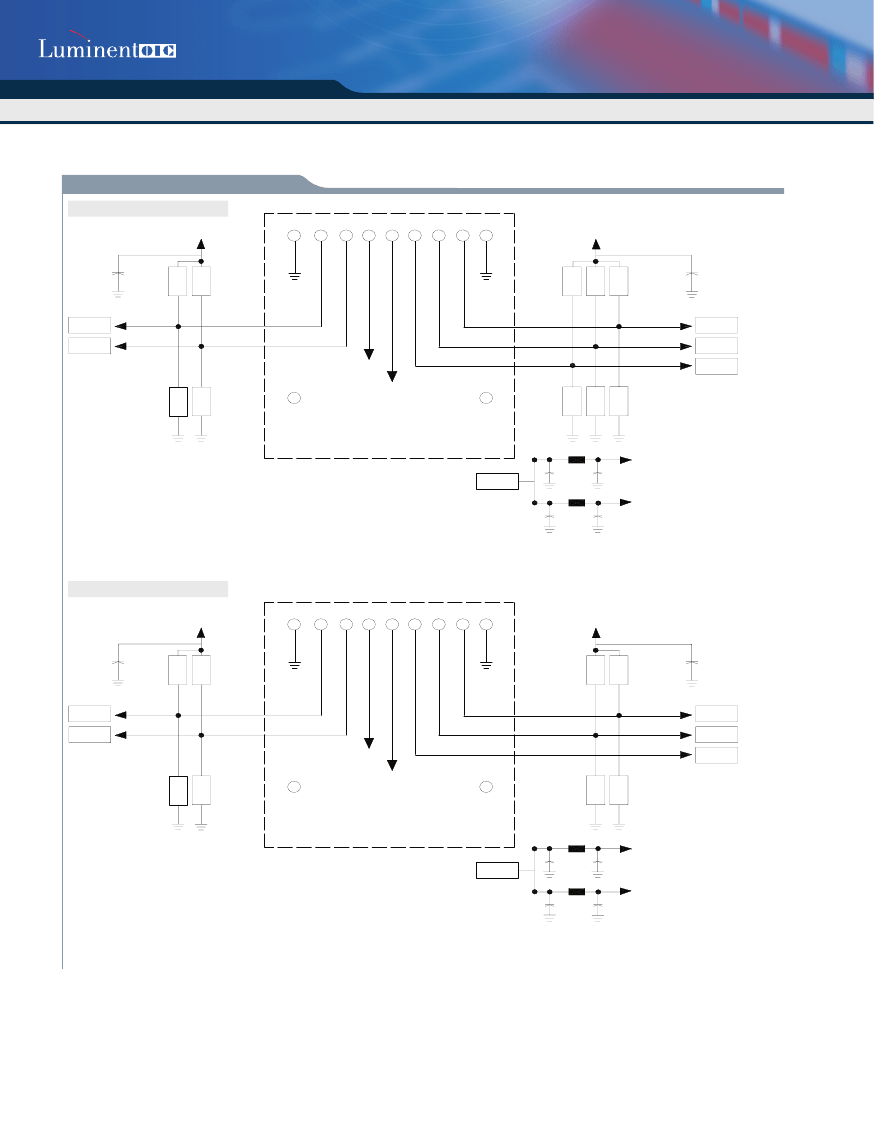

Recommended Circuit Schematic
B-15/13-1250-TDPM3-SXX-60
Tx Vcc
C5
Rx Vcc
9
R1
R3
8
7
6
5
4 3
2
1
R9
R5
R7
C6
TD +
TD -
RD +
RD -
Tx Vcc
Rx Vcc
R2
R4
R10
SD
R6
R8
No internal
connection
Transceiver
Top view
No internal
connection
L1
Rx Vcc
C1
Notes +3.3V:
R1=R3=R5=R7=R9=130!
R2=R4=R6=R8=R10=82!
C1=C2=C3=C5=C6=0.1"F
C4=10"F
L1=L2=1
"
H
B-15/13-1250C-TDPM3-SXX-60
Vcc
C3
L2
C4
Tx Vcc
C2
Tx Vcc
C5
Rx Vcc
9
R1
R3
8
7
6
5
4 3
2
1
R5
R7
C6
TD +
TD -
RD +
RD -
Tx Vcc
Rx Vcc
R2
R4
R6
R8
SD
No internal
connection
Transceiver
Top view
No internal
connection
L1
Rx Vcc
C1
Notes +3.3V:
R1=R3=R5=R7=130!
R2=R4=R6=R8=82!
C1=C2=C3=C5=C6=0.1"F
C4=10"F
L1=L2=1
"
H
Vcc
C3
L2
C4
Tx Vcc
C2
The split-loaded terminations for ECL signals need to be located at the input of devices receiving those ECL signals.
The power supply filtering is required for good EMI performance. Use short tracks from the inductor L1/L2 to the module Rx Vcc.
A GND plane under the module is required for good EMI and sensitivity performance.
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
4
LUMNDS574-AUG1804
rev. A.0
1.25 Gbps Bi-directional Single Fiber Transceiver
B-15/13-1250(C)-TDPM3-SXX-60

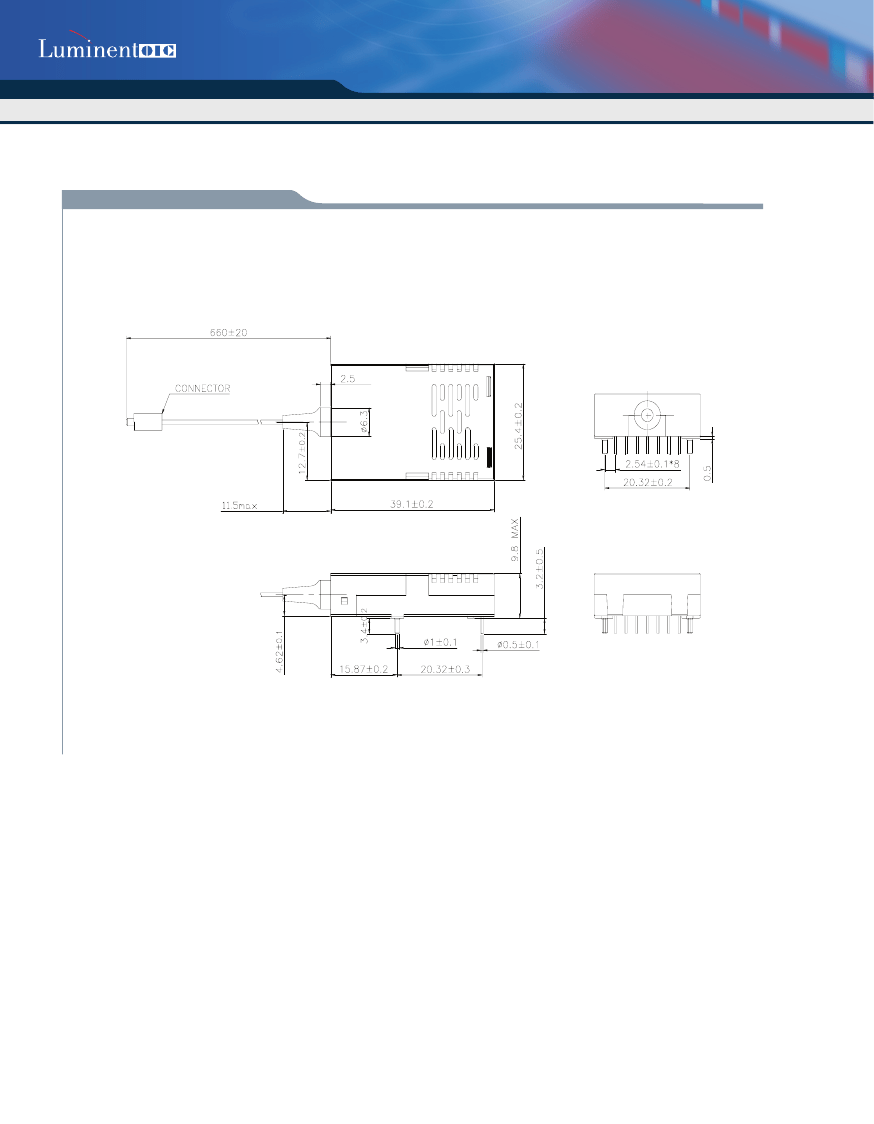

Package Diagram
