BK/S501-3.15AV: DescriptionElectric Fuse, Fast Blow, 3.15A, 250VAC, 1500A (IR), Through Hole; CategoryCircuit protection Circuit protection; File Size143KB，2 Pages; ManufacturerCooper Industries

Download Datasheet Parametric View All

BK/S501-3.15AV Overview

Electric Fuse, Fast Blow, 3.15A, 250VAC, 1500A (IR), Through Hole

BK/S501-3.15AV Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
ECCN code	EAR99
Fusing characteristics	FAST
body height	21.1 mm
Body length or diameter	5.54 mm
Circuit protection type	ELECTRIC FUSE
JESD-609 code	e3
Joule integral nominal	8 J
Manufacturer's serial number	S501
Installation features	THROUGH HOLE
method of packing	BOX
physical size	5.54mm x 21.1mm
Rated breaking capacity	1500 A
Rated current	3.15 A
Rated voltage (AC)	250 V
Guideline	CCC; CSA; IEC; IMQ; SEMKO; UL; VDE
surface mount	NO
Terminal surface	Tin (Sn)
Terminal shape	PIN WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

5mm x 20mm Fuses

S501 Series, Fast Acting, Ceramic Tube

Description

• Fast acting

• Optional axial leads available

• 5mm x 20mm physical size

• Ceramic tube, nickel brass endcap construction

• Designed to IEC 60127-2

ELECTRICAL CHARACTERISTICS

1.5 In 2.1 In

2.75 In

4 In

10 In

In

min

max

min

max

min

max

50mA-3.15A 60 min 30 min 10 ms 2 sec 3 ms 300 ms 20 ms

4A-10A

60 min 30 min 10 ms 3 sec 3 ms 300 ms 20 ms

RoHS

2002/95/EC

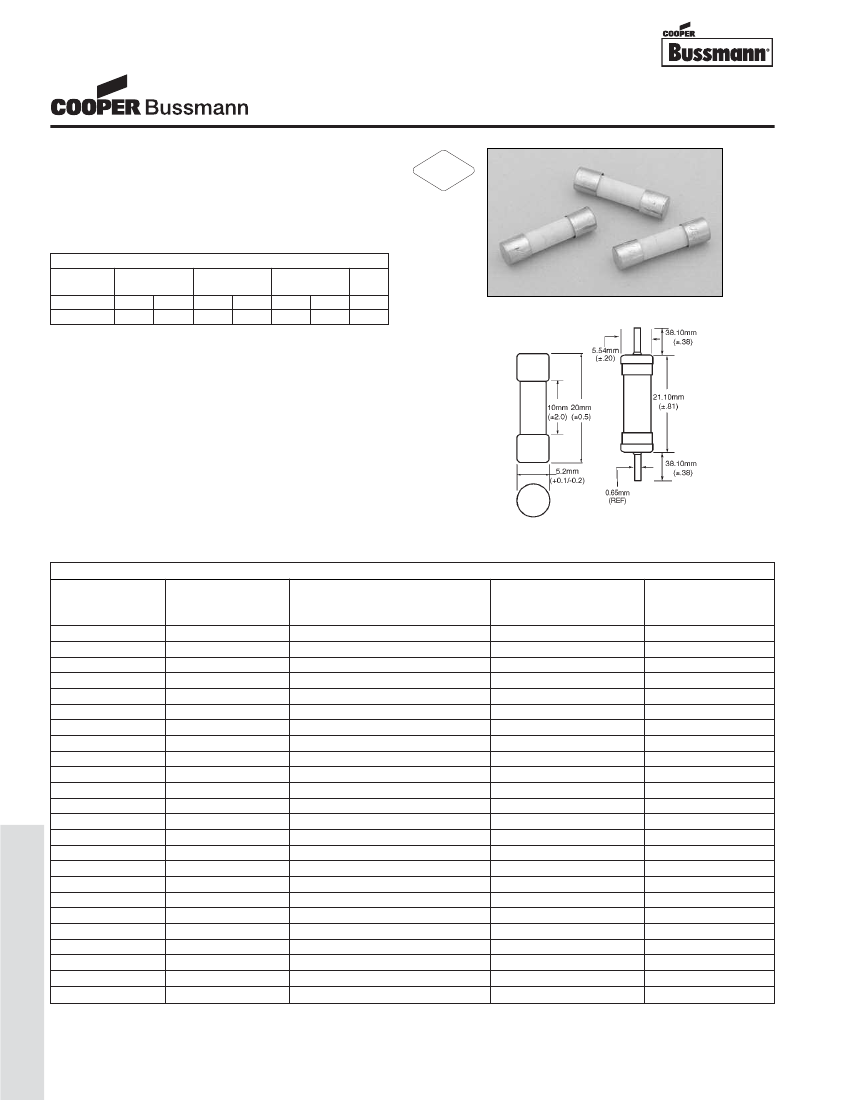

Dimensions

Drawing Not to Scale

Agency Information

• UL Recognized Card: (50mA-10A) Guide JDYX2,

File E19180

• CSA Component Acceptance: File 53787

• cURus Recognition: Guide JDYX8, File E19180

• SEMKO Approval 50mA, 160mA-10A

• VDE Approval 160mA-10A

• IMQ Approval 50mA-10A

• CCC Approval 160mA-10A

Ordering

• Specify packaging, product, and option code

• For -R option, drop mA or A from product code

(i.e. S501-2-R)

Voltage

Rating

AC

250V

• Ratings above 6.3A have a 0.8mm diameter lead

• With TR2 packaging code, lead wire length is 19.05mm

SPECIFICATIONS

Product Code

S501-50mA

S501-63mA

S501-80mA

S501-100mA

S501-125mA

S501-160mA

S501-200mA

S501-250mA

S501-315mA

S501-400mA

S501-500mA

S501-630mA

S501-800mA

S501-1A

S501-1.25A

S501-1.6A

S501-2A

S501-2.5A

S501-3.15A

S501-4A

S501-5A

S501-6.3A

S501-8A

S501-10A

Interrupting Rating

at Rated Voltage

AC

1500A

Typical

Melting I

2

t (A

2

Sec)

AC

0.0017

0.0005

0.0011

0.0018

0.0037

0.008

0.020

0.027

0.010

0.018

0.038

0.064

0.097

0.480

0.9

1.9

2.0

3.9

8.1

14

25

48

N/A

Typical

Voltage

Drop (mV)‡

9000

3300

2600

2300

1900

1600

1350

1300

1400

1200

1050

1200

490

230

200

180

205

190

160

155

150

N/A

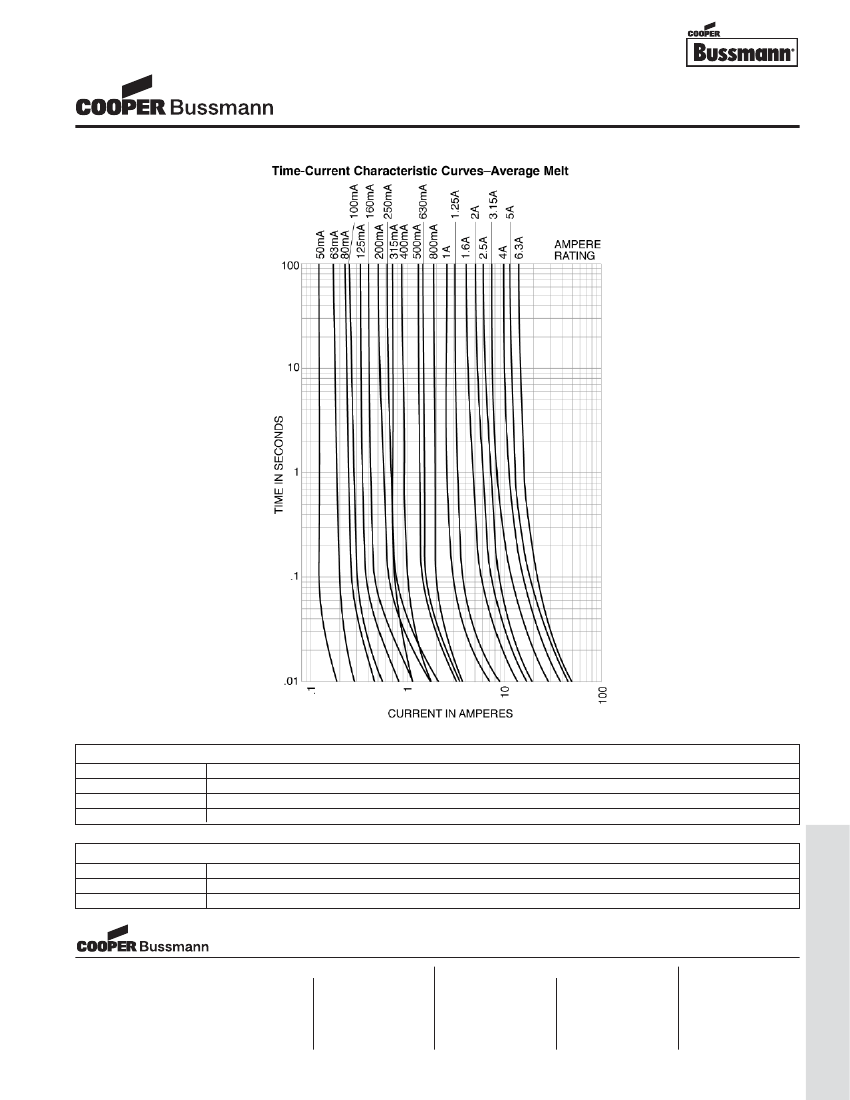

Traditional Ferrule Fuses - Ferrule Type

‡ Typical Voltage Drop (Voltage drop was measured at 20°C ambient temperature at rated current)
