B82144A2152K000

Description
1 ELEMENT, 1.5uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, AXIAL LEADED, ROHS COMPLIANT
CategoryPassive components    inductor
File Size138KB,9 Pages
ManufacturerEPCOS (TDK)
Environmental Compliance
Download Datasheet Parametric View All

B82144A2152K000 Overview

1 ELEMENT, 1.5uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, AXIAL LEADED, ROHS COMPLIANT

B82144A2152K000 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompliant
ECCN codeEAR99
structureAxial
core materialFerrite
DC Resistance0.09 Ω
Nominal inductance(L)1.5 µH
Inductor ApplicationsRF INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
JESD-609 codee3
Lead diameter0.8 mm
Number of functions1
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package diameter5.2 mm
Package length12 mm
Package formAxial
method of packingTR, 14 INCH
Minimum quality factor (at nominal inductance)40
Maximum rated current2.1 A
self resonant frequency190 MHz
Shape/Size DescriptionTUBULAR PACKAGE
special characteristicsQ IS MEASUED AT 7.96MHZ
surface mountNO
Terminal surfaceTin (Sn)
Terminal locationAXIAL
Terminal shapeWIRE
Test frequency1 MHz
Tolerance10%
Base Number Matches1

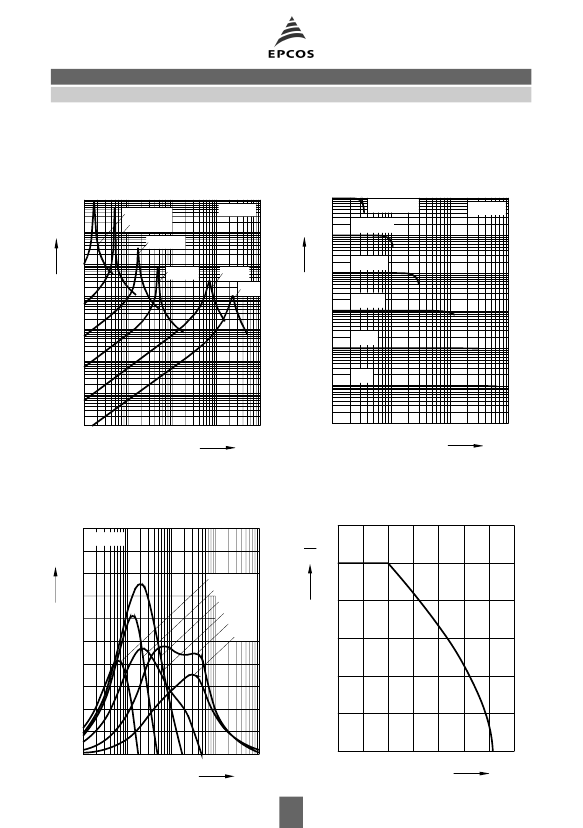

Chokes and inductors
For high frequency and EMC
RF chokes, LBC series, axial
Series/Type:
B82144A
November 2005
7f…fÁRspp…
Date:
©
EPCOS AG 2005. Reproduction, publication and dissemination of this publication and the infor-
mation contained therein without EPCOS’ prior express consent is prohibited.
