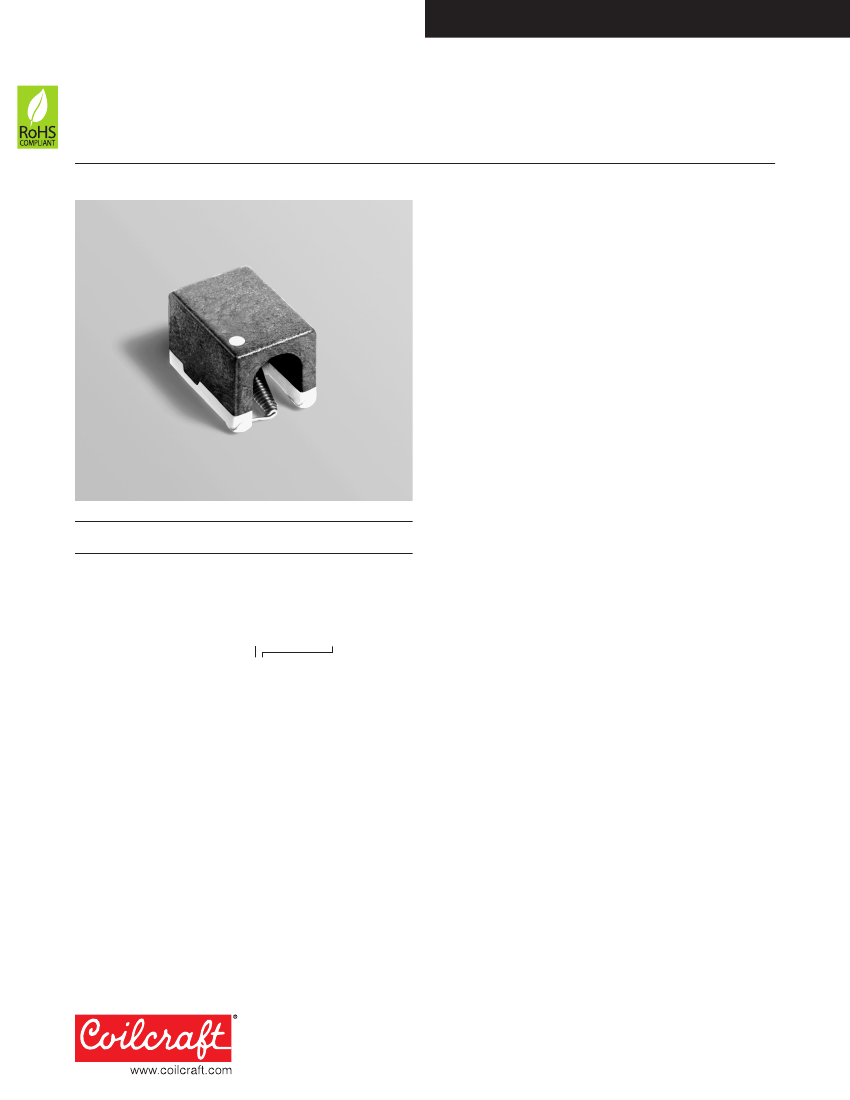

Document 334R-1
SMT Broadband Conical Inductors
• Full-length cap fully protects the coil and provides a large
surface for pick and place.
• The self positioning mounting bracket has four soldered
pads for excellent board adhesion.
• Designed specifically for broadband and high frequency
applications.
• Operates as a series of narrow-band inductors throughout
an operating frequency range of 10 MHz to 40 GHz.
• Ideal for use in ultra-wideband bias T’s, where the conical in-
ductor provides the path for the DC bias injection or extraction
while isolating the power source from the active device.
• For a “flying lead” version that allows adjustment of the
mounting angle consider the BCL series
Part
number
1
BCR-531JL_
BCR-122JL_
BCR-652JL_
BCR-802JL_
Inductance
2
±5% (µH)
0.53
1.20
6.5
8.0
DCR max
(Ohms)
0.15
1.05
0.70
3.39
Irms
3
(mA)
830
200
510
150
1. When ordering, please specify
termination
and
packaging
codes:
BCR-802JLC
Termination: L =
Tin-silver-copper over silver-platinum-glass frit
Special order, added cost:
S
= Tin-lead over silver-platinum-glass frit
C
= 7″ machine-ready reel. EIA-481 embossed plastic
tape
BCR-122JL: 500 parts per full reel;
BCR-531JL and BCR-802JL: 300 parts per full reel;
BCR-652JL: 200 parts per full reel
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge),
use code letter C instead.
2. Inductance measured at 10 MHz, 0.1 Vrms, 0 Adc using an Agilent/HP
16193A fixture in an Agilent/HP 4287A LCR meter or equivalents.
3. Current that causes a 40°C temperature rise from 25°C ambient.
4. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Packaging:
Terminations
Tin-silver-copper over silver-platinum-glass frit
Other terminations available at additional cost.
Weights
BCR-122: 34 mg; BCR-531: 101 mg; BCR-802: 107 mg;
BCR-652: 472 mg
Ambient temperature
–40°C to +85°C
Storage temperature
Component: –40°C to +85°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
BCR-122L:
500/7″ reel; 2000/13″ reel Plastic tape: 12 mm wide,
0.36 mm thick, 8 mm pocket spacing, 3.51 mm pocket depth
BCR-531L:
300/7″ reel; 1500/13″ reel Plastic tape: 12 mm wide,
0.36 mm thick, 8 mm pocket spacing, 4.83 mm pocket depth
BCR-652L:
200/7″ reel; 750/13″ reel Plastic tape: 24 mm wide,
0.33 mm thick, 12 mm pocket spacing, 6.45 mm pocket depth
BCR-802L:
300/7″ reel; 1500/13″ reel Plastic tape: 12 mm wide,
0.36 mm thick, 8 mm pocket spacing, 4.83 mm pocket depth
PCB washing
Tested with pure water or alcohol only. For other solvents,
see Doc787_PCB_Washing.pdf.
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 334R-1
Revised 12/17/12
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.

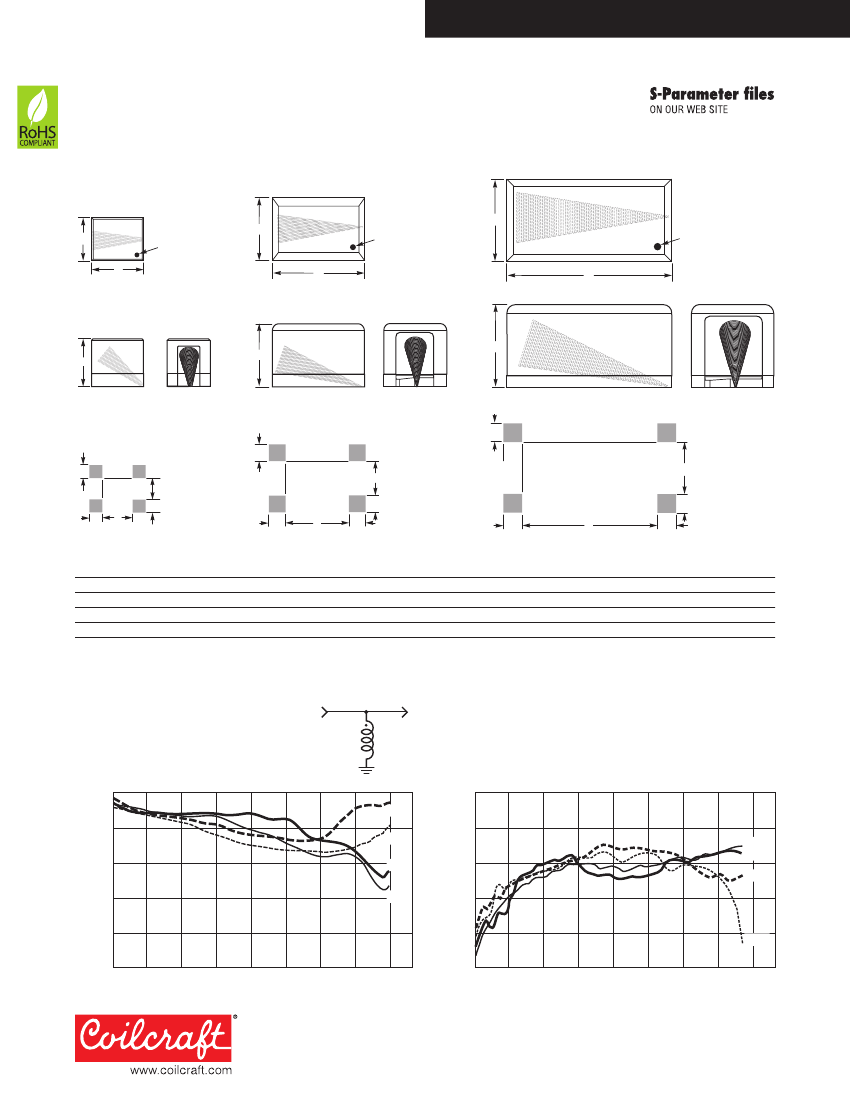

Document 334R-2
SMT Broadband Conical Inductors
BCR-122
Top View
A
B
A
Dot indicates pin1.
B
A
Dot indicates pin1.
Dot indicates pin1.
BCR-531, BCR-802
Top View
BCR-652
Top View
B
Side View
Side View
Side View
Front View
C
C
Front View
Front View
C
Recommended
Land Pattern
D
D
2
1
Recommended
Land Pattern
2
D
2
Recommended
Land Pattern
*
E
*
F
1
*
F
1
F
*
*
D
D
*
D
D
D
E
*
D
D
D
E
Pad is for mounting stability only; do not connect to circuit. Connecting to circuit may adversely affect performance.
BCR-531
BCR-122
BCR-652
BCR-802
A
0.150 ±0.010/
3,81±0,25
0.105 ±0.010 /
2,67 ±0,25
0.220 ±0.010 /
5,59 ±0,25
0.150 ±0.010 /
3,81 ±0,25
B
0.220 ±0.010 /
5,59 ±0,25
0.120 ±0.010 /
3,05 ±0,25
0.440 ±0.010 /
11,18 ±0,25
0.220 ±0.010 /
5,59 ±0,25
C
0.160 ±0.010 /
4,06 ±0,25
0.110 ±0.010 /
2,79 ±0,25
0.220 ±0.010 /
5,59 ±0,25
0.160 ±0.010 /
4,06 ±0,25
D
0.040 /
1,02
0.030 /
0,76
0.050 /
1,27
0.040 /
1,02
E
0.150 /
3,81
0.070 /
1,78
0.360 /
9,14
0.150 /
3,81
F
0.080 /
2,03
0.050 /
1,27
0.140 /
3,56
0.080 /
2,03
Dimensions (inches /millimeters)
Response curves measured in a bias tee con-
figuration with an Agilent/HP 8722ES network
analyzer.
Port 1
1
Port 2
Insertion Loss
0
0.5
2
Return Loss
0
-652
-531
10
S21 (dB)
1.0
S11 (dB)
-122
-802
20
-802
-122
-652
1.5
2.0
2.5
30
40
50
-531
0.05
10
20
30
40
0.05
10
20
30
40
Frequency (GHz)
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Frequency (GHz)
Document 334R-2
Revised 12/17/12
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
