BYW93-150 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BYW93-150

BYW93-150: DescriptionRectifier Diode, 1 Phase, 1 Element, 60A, 150V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size208KB，8 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

BYW93-150 Overview

Rectifier Diode, 1 Phase, 1 Element, 60A, 150V V(RRM), Silicon,

BYW93-150 Parametric

Parameter Name	Attribute value
package instruction	O-MUPM-D1
Reach Compliance Code	unknown
ECCN code	EAR99
application	ULTRA FAST SOFT RECOVERY
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V
JESD-30 code	O-MUPM-D1
Maximum non-repetitive peak forward current	1000 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	150 °C
Maximum output current	60 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Guideline	CECC50009-028
Maximum repetitive peak reverse voltage	150 V
Maximum reverse current	250 µA
Maximum reverse recovery time	0.045 µs
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
Base Number Matches	1

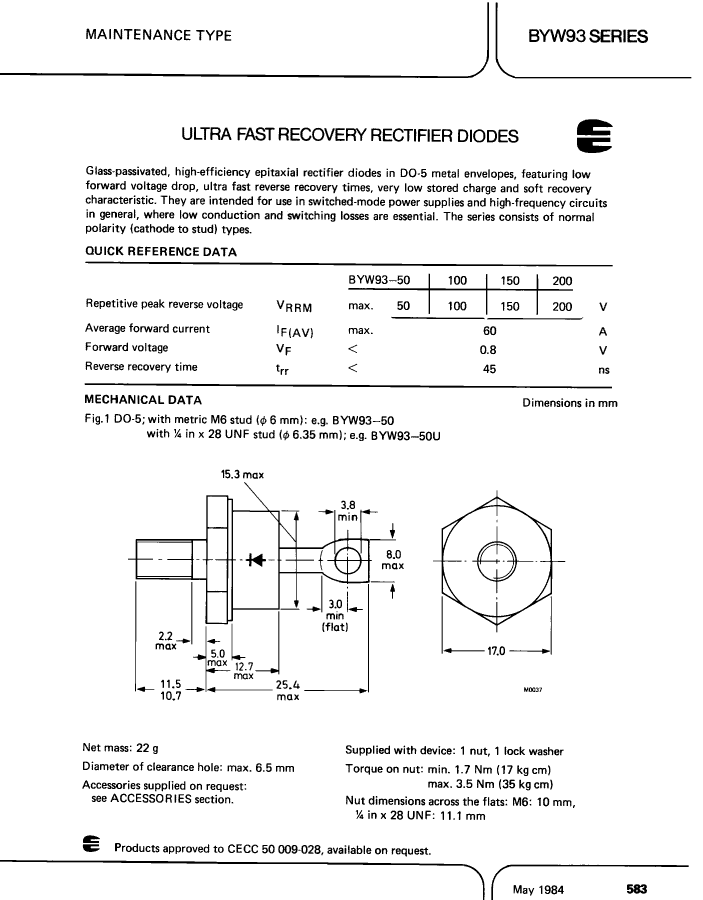

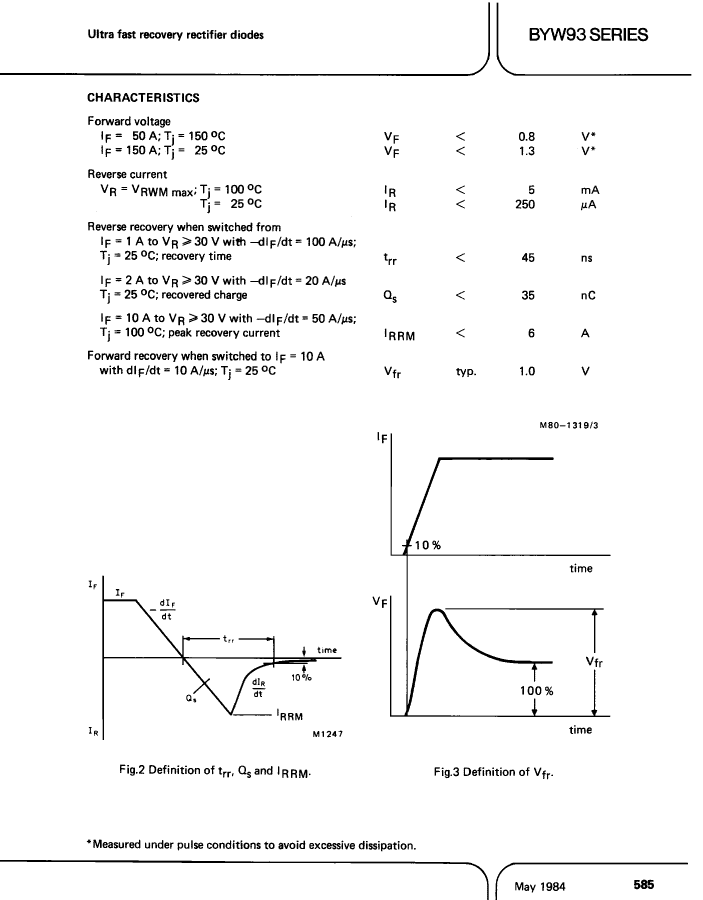

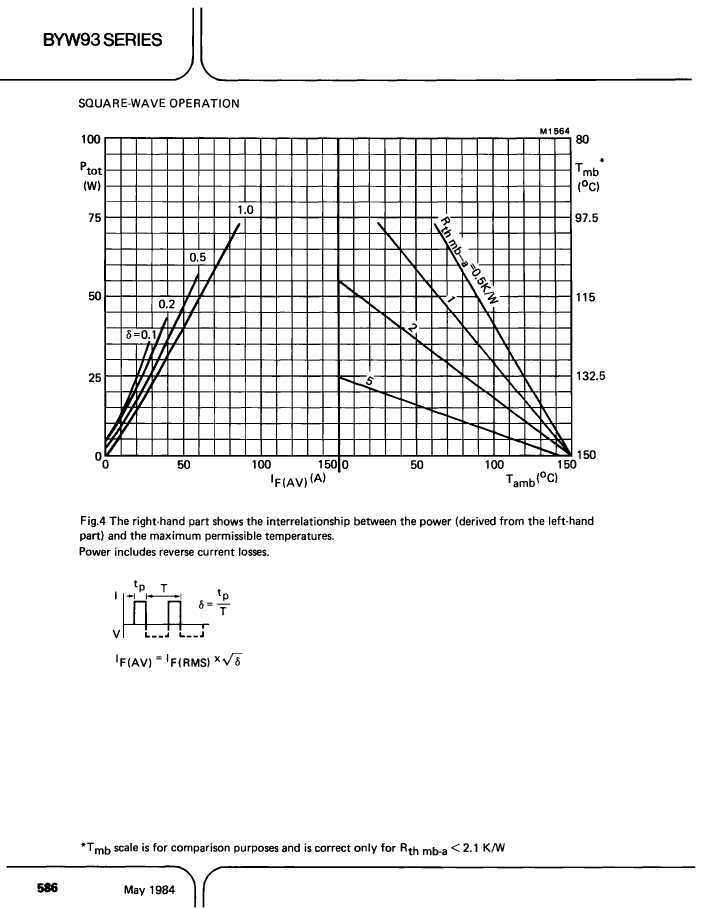

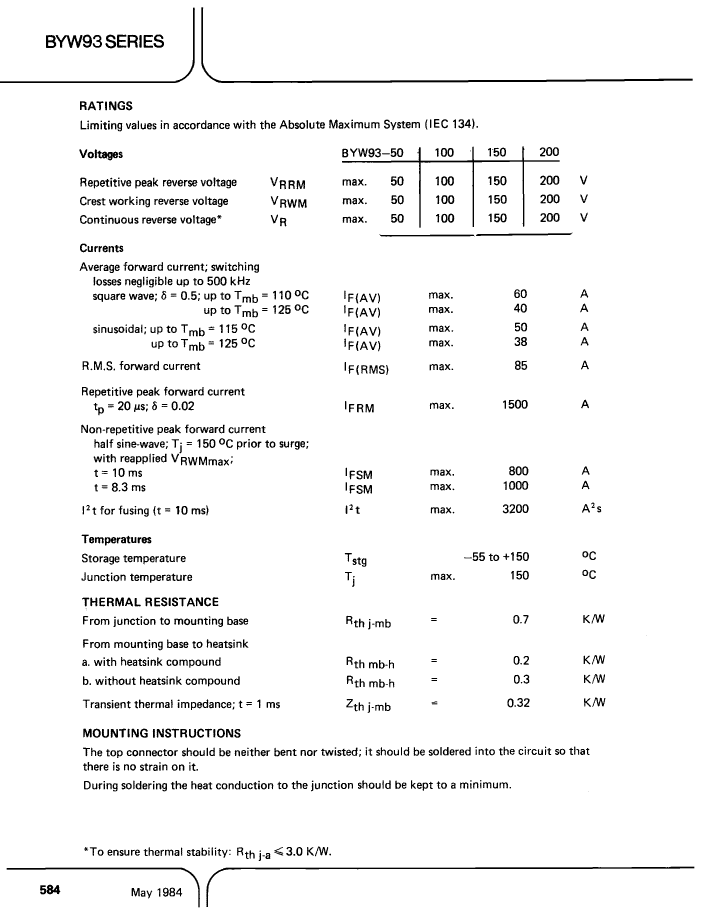

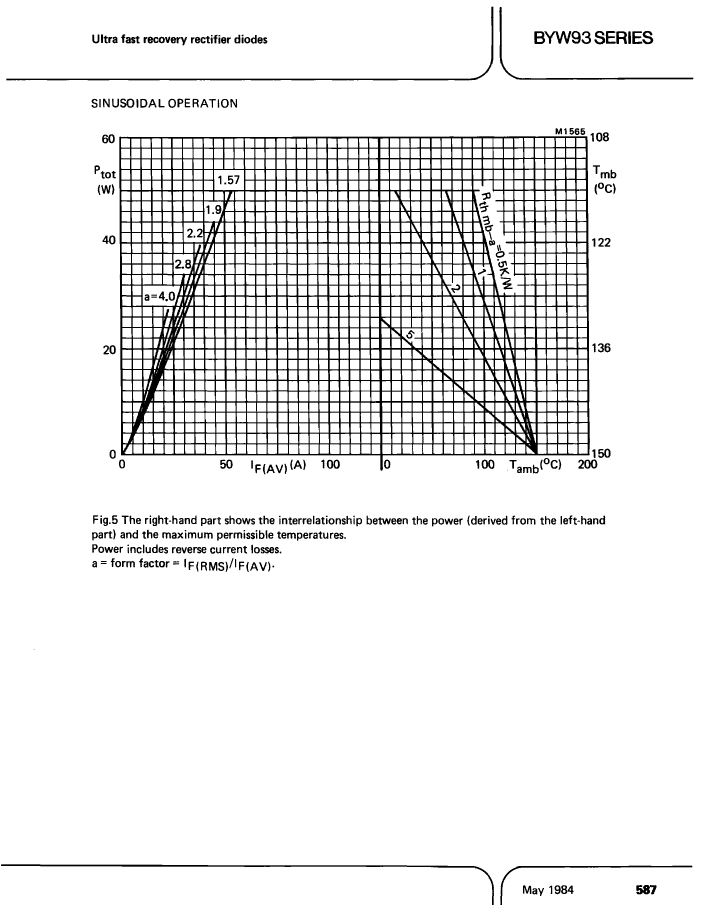

Preview

Download Datasheet

View All

BYW93-150 Related Products

	BYW93-150	BYW93-100U	BYW93-100	BYW93-150U	BYW93-200	BYW93-200U	BYW93-50	BYW93-50U
Description	Rectifier Diode, 1 Phase, 1 Element, 60A, 150V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 60A, 100V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 60A, 100V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 60A, 150V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 60A, 200V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 60A, 200V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 60A, 50V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 60A, 50V V(RRM), Silicon,
package instruction	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
application	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V	1.3 V	1.3 V	1.3 V	1.3 V	1.3 V	1.3 V	1.3 V
JESD-30 code	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1
Maximum non-repetitive peak forward current	1000 A	1000 A	1000 A	1000 A	1000 A	1000 A	1000 A	1000 A
Number of components	1	1	1	1	1	1	1	1
Phase	1	1	1	1	1	1	1	1
Number of terminals	1	1	1	1	1	1	1	1
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	60 A	60 A	60 A	60 A	60 A	60 A	60 A	60 A
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Guideline	CECC50009-028	CECC50009-028	CECC50009-028	CECC50009-028	CECC50009-028	CECC50009-028	CECC50009-028	CECC50009-028
Maximum repetitive peak reverse voltage	150 V	100 V	100 V	150 V	200 V	200 V	50 V	50 V
Maximum reverse current	250 µA	250 µA	250 µA	250 µA	250 µA	250 µA	250 µA	250 µA
Maximum reverse recovery time	0.045 µs	0.045 µs	0.045 µs	0.045 µs	0.045 µs	0.045 µs	0.045 µs	0.045 µs
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Maker	-	YAGEO	-	-	YAGEO	YAGEO	YAGEO	YAGEO
