BYX98-1200R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BYX98-1200R

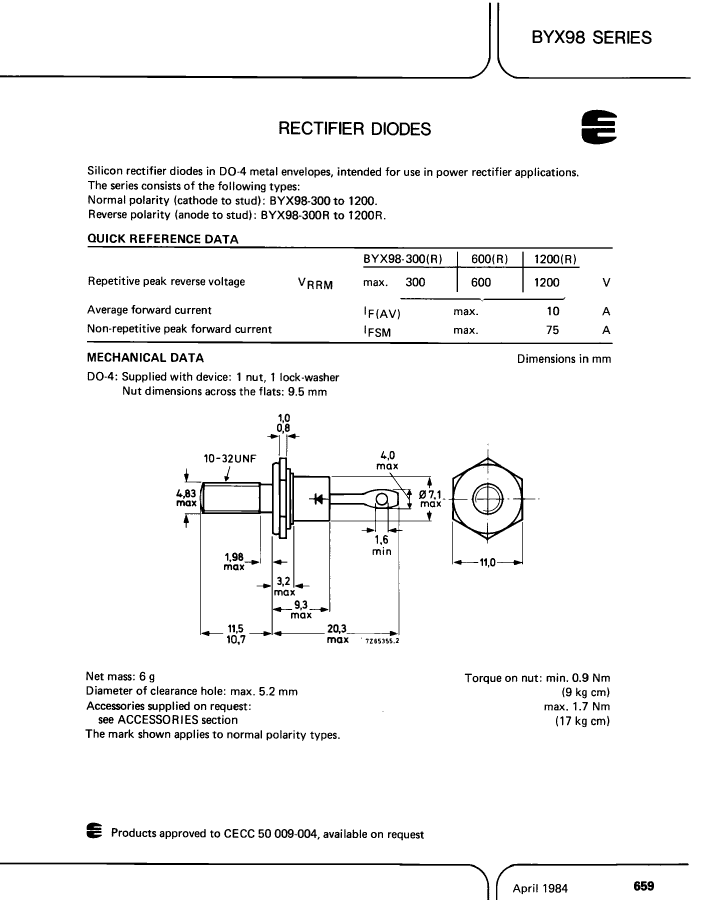

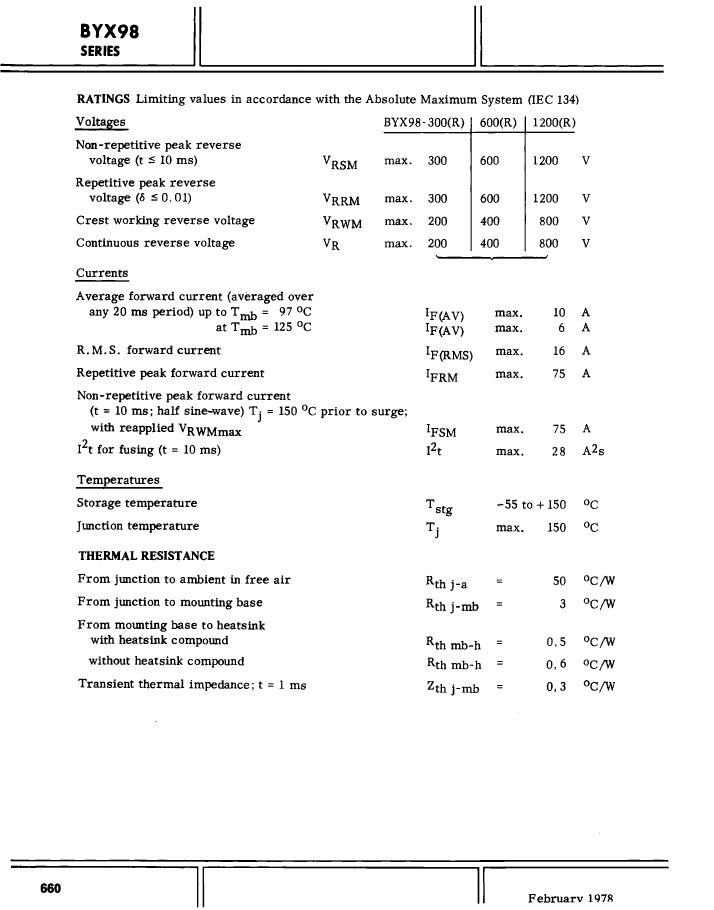

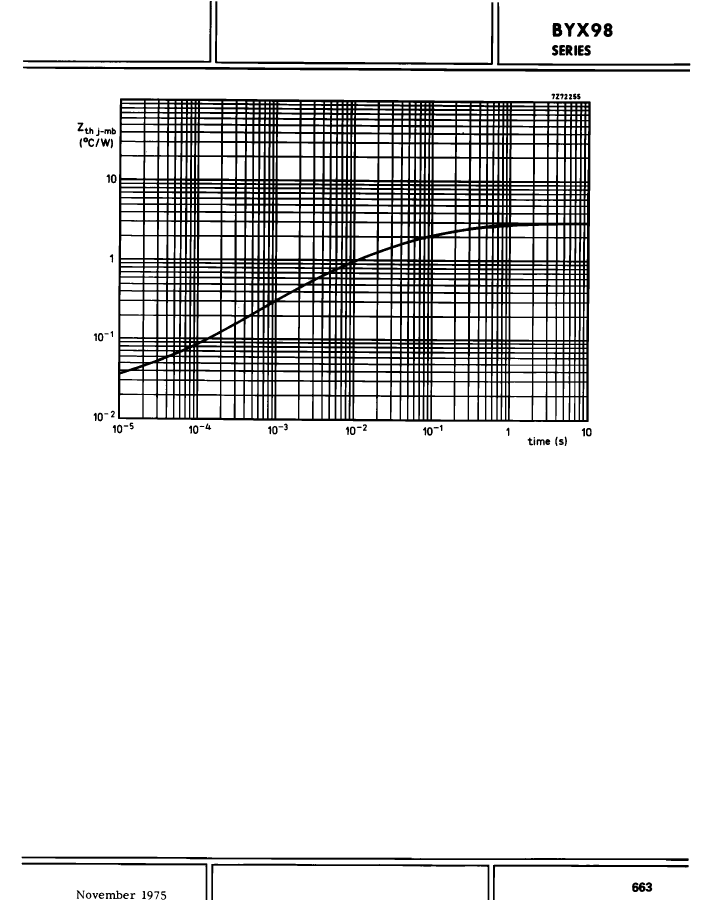

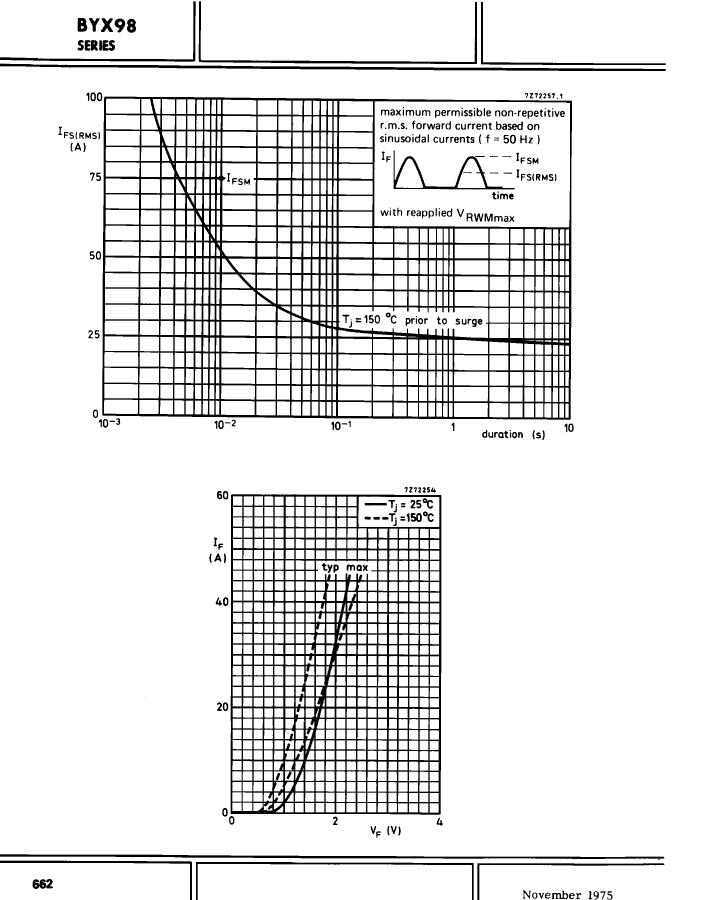

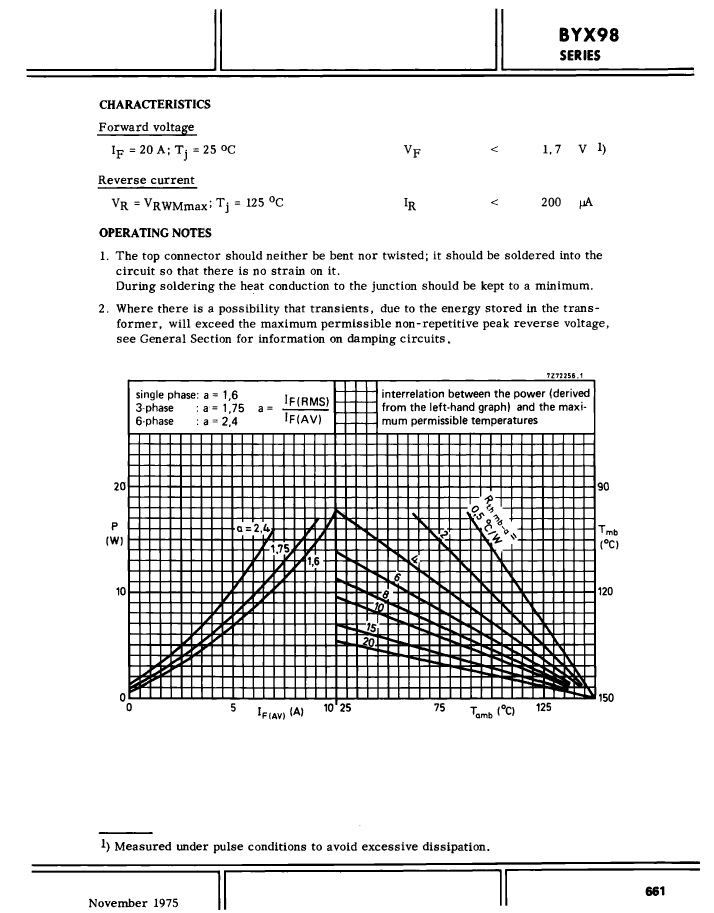

BYX98-1200R: DescriptionRectifier Diode, 1 Phase, 1 Element, 10A, 1200V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size124KB，5 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

BYX98-1200R Overview

Rectifier Diode, 1 Phase, 1 Element, 10A, 1200V V(RRM), Silicon,

BYX98-1200R Parametric

Parameter Name	Attribute value
package instruction	O-MUPM-D1
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LEAKAGE CURRENT IS NOT AT 25 DEG C
application	POWER
Shell connection	ANODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.7 V
JESD-30 code	O-MUPM-D1
Maximum non-repetitive peak forward current	75 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	150 °C
Maximum output current	10 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Guideline	CECC50009-004
Maximum repetitive peak reverse voltage	1200 V
Maximum reverse current	200 µA
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
Base Number Matches	1
