BA220143 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BA220143

BA220143: DescriptionDIODE 0.2 A, 10 V, SILICON, SIGNAL DIODE, DO-35, Signal Diode; CategoryDiscrete semiconductor diode; File Size111KB，5 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

BA220143 Overview

DIODE 0.2 A, 10 V, SILICON, SIGNAL DIODE, DO-35, Signal Diode

BA220143 Parametric

Parameter Name	Attribute value
package instruction	O-LALF-W2
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.95 V
JEDEC-95 code	DO-35
JESD-30 code	O-LALF-W2
Maximum non-repetitive peak forward current	9 A
Number of components	1
Number of terminals	2
Maximum operating temperature	200 °C
Maximum output current	0.2 A
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Maximum power dissipation	0.35 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	10 V
Maximum reverse current	1.5 µA
Maximum reverse recovery time	0.004 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

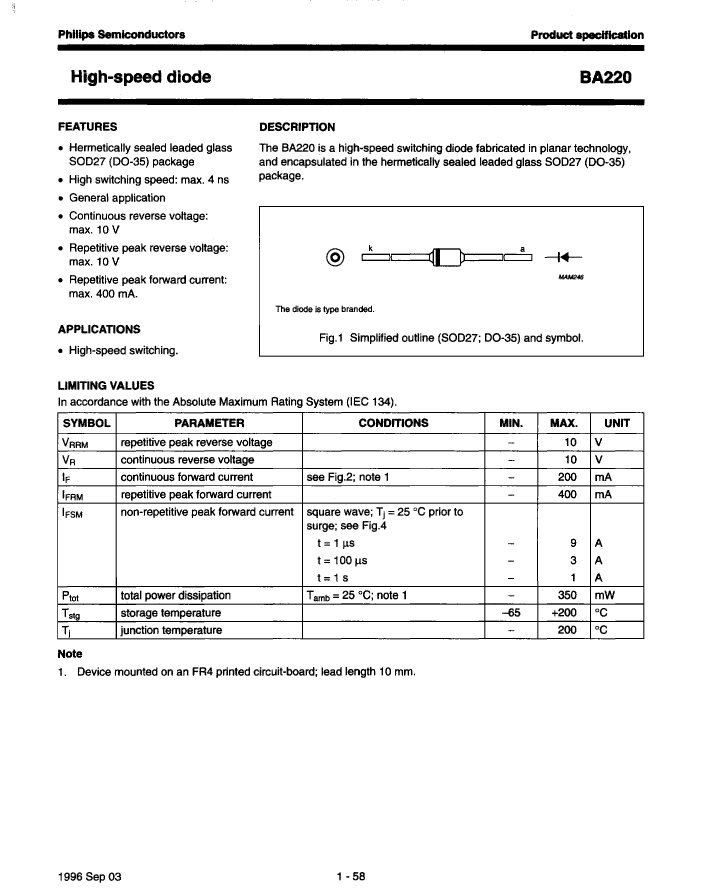

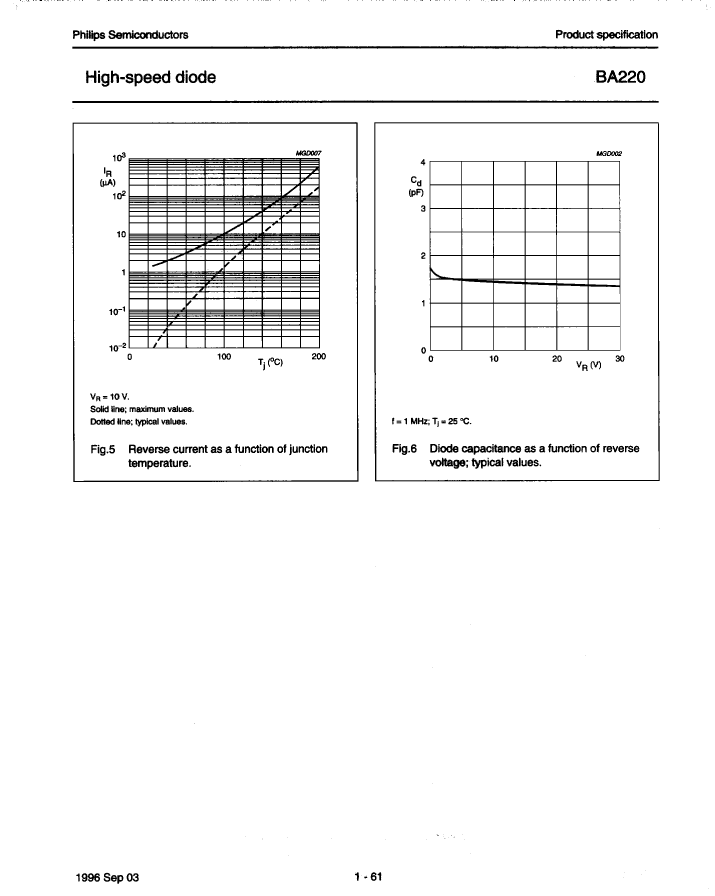

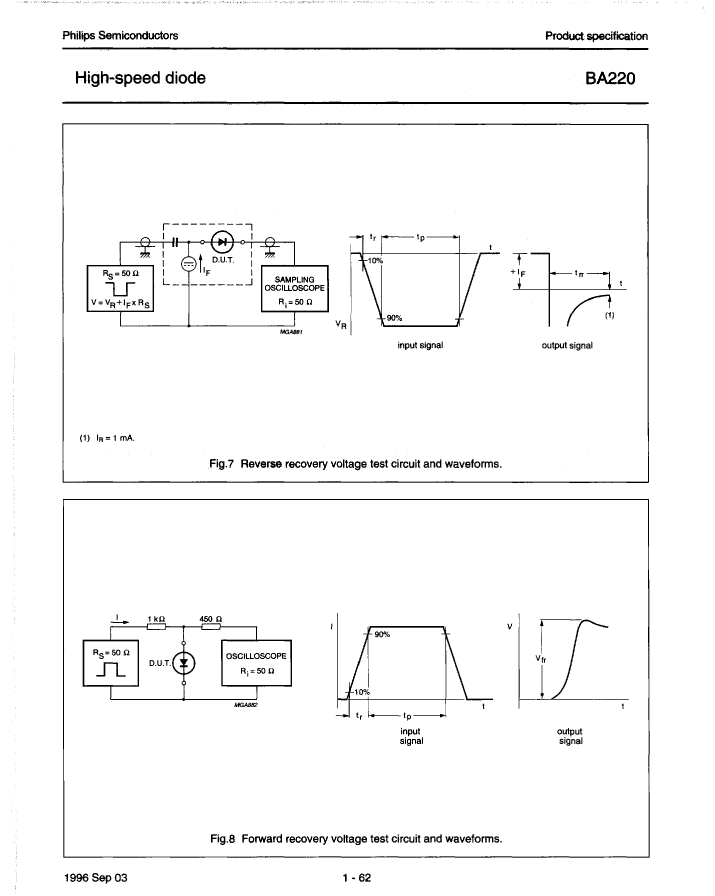

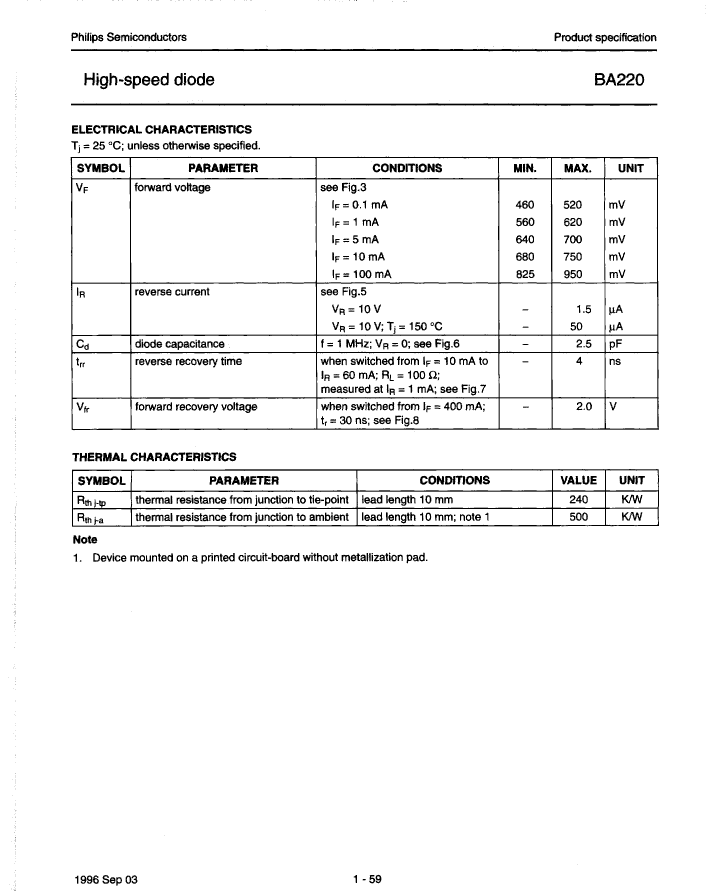

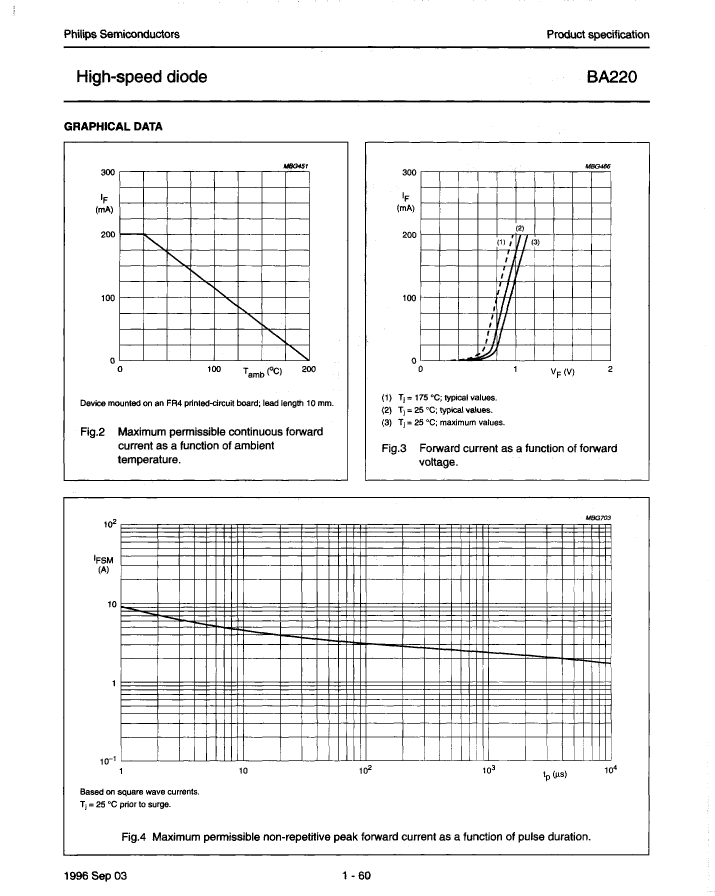

Preview

Download Datasheet

View All

BA220143 Related Products

	BA220143	BA220113	BA220116	BA220136	BA220133	BA220153
Description	DIODE 0.2 A, 10 V, SILICON, SIGNAL DIODE, DO-35, Signal Diode	DIODE 0.2 A, 10 V, SILICON, SIGNAL DIODE, DO-35, Signal Diode	DIODE 0.2 A, 10 V, SILICON, SIGNAL DIODE, DO-35, Signal Diode	DIODE 0.2 A, 10 V, SILICON, SIGNAL DIODE, DO-35, Signal Diode	DIODE 0.2 A, 10 V, SILICON, SIGNAL DIODE, DO-35, Signal Diode	DIODE 0.2 A, 10 V, SILICON, SIGNAL DIODE, DO-35, Signal Diode
package instruction	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.95 V	0.95 V	0.95 V	0.95 V	0.95 V	0.95 V
JEDEC-95 code	DO-35	DO-35	DO-35	DO-35	DO-35	DO-35
JESD-30 code	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2
Maximum non-repetitive peak forward current	9 A	9 A	9 A	9 A	9 A	9 A
Number of components	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C
Maximum output current	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A
Package body material	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Maximum power dissipation	0.35 W	0.35 W	0.35 W	0.35 W	0.35 W	0.35 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	10 V	10 V	10 V	10 V	10 V	10 V
Maximum reverse current	1.5 µA	1.5 µA	1.5 µA	1.5 µA	1.5 µA	1.5 µA
Maximum reverse recovery time	0.004 µs	0.004 µs	0.004 µs	0.004 µs	0.004 µs	0.004 µs
surface mount	NO	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Base Number Matches	1	1	1	-	1	1
